Analysis (Analysis) Conditions
4.

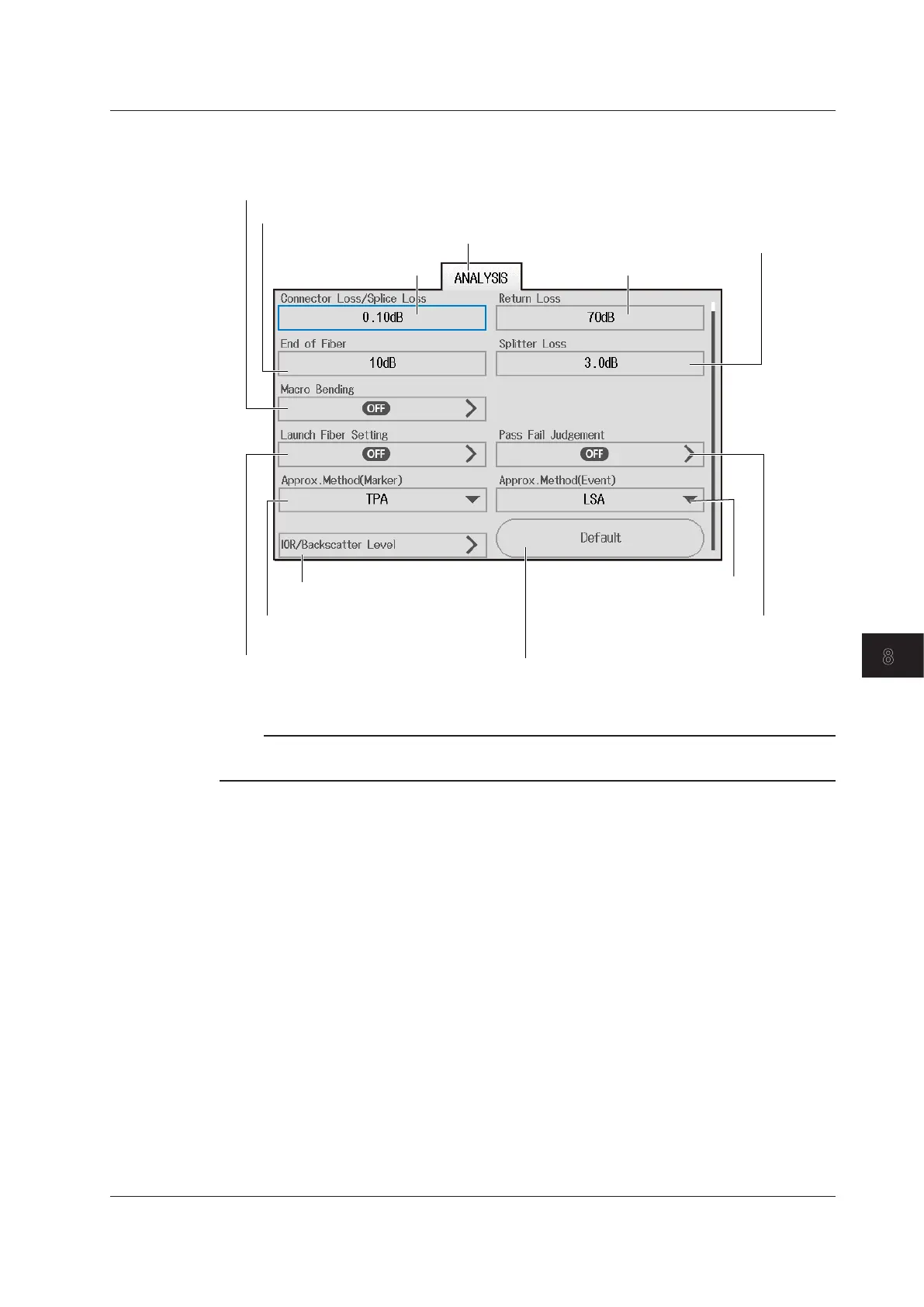

Tap the ANALYSIS tab to display the following screen.
Set the launch fiber (OFF, ON).
See page 2-8.
Set the end of fiber (3dB to 70dB).
Set the splice loss
(0.01dB to 9.99dB).
Set the IOR/backscatter level.
See page 2-9.
Executes initialization
Press to reset the analysis settings
to their factory defaults.
ANALYSIS tab
Set macro bending (OFF, ON).
Set the pass/fail judgment (OFF, ON).
See page 2-8.
Set the approximation method
(event; TPA, LSA).
Set the splitter loss (1dB to 20dB).
Set the return loss (20dB to 70dB).
Set the approximation method
(marker; TPA, LSA).
Note
For details on the setup screen that appears when you select a setting and the descriptions of the settings,
see section 2.2.
