Note
• In real-time measurement, measured results are not automatically saved.
• If Wavelength on the multi-fiber measurement screen is set to “All,” measurement of “Waveform 1” is
executed. To measure “Wavelength 2” and later, save the measured results of “Waveform 1,” and then
press the Wavelength soft key in the soft key menu to switch the wavelength.
• If you enter the label characters in the label setting of the project setup screen, the same label characters
can be entered at once for all cores.
Soft Key Menu (real-time measurement)
7.

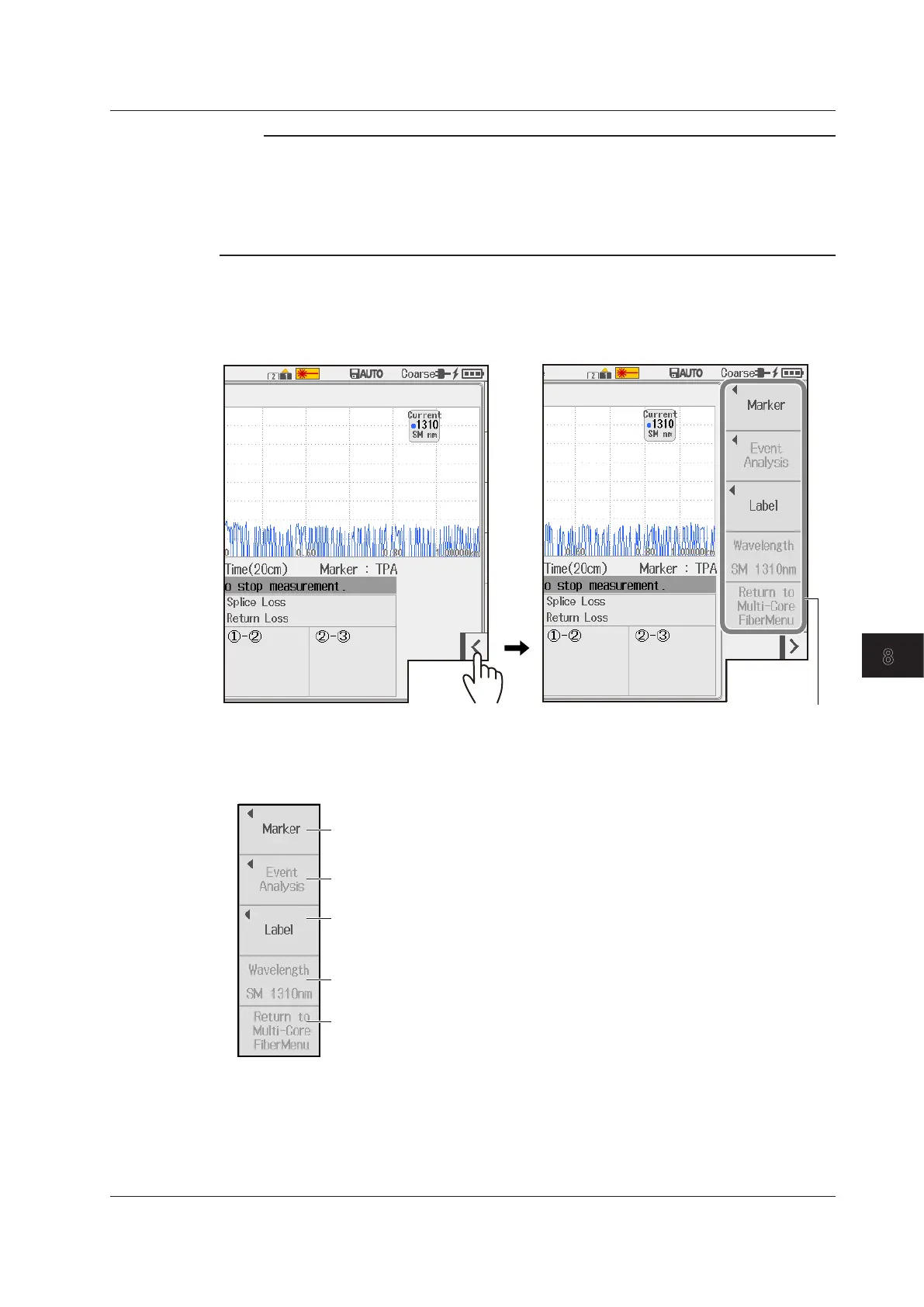

Tap the soft key menu display button. A soft key menu appears for operating the OTDR screen
of real-time measurement.
OTDR Screen Menu of Real-Time Measurement
• When Real-Time Measurement Is in Progress
Marker operation
See section 6.1.
Set labels.
See section 2.4.
Cannot be selected during
measurement.
Cannot be selected during
measurement.
Cannot be selected during
measurement.
8.2 Measuring a Multi-Core Optical Fiber Cable (Multi-Fiber Project)
