8-22
IM AQ1210-01EN
Measuring the Optical Power
11.
Set the wavelength.
12.
Connect an optical fiber cable to the OPM port. The measured value is displayed on the power
meter screen. For the position of the OPM port, see “Component Names and Functions” in the
Getting Started Guide, IM AQ1210-02EN.

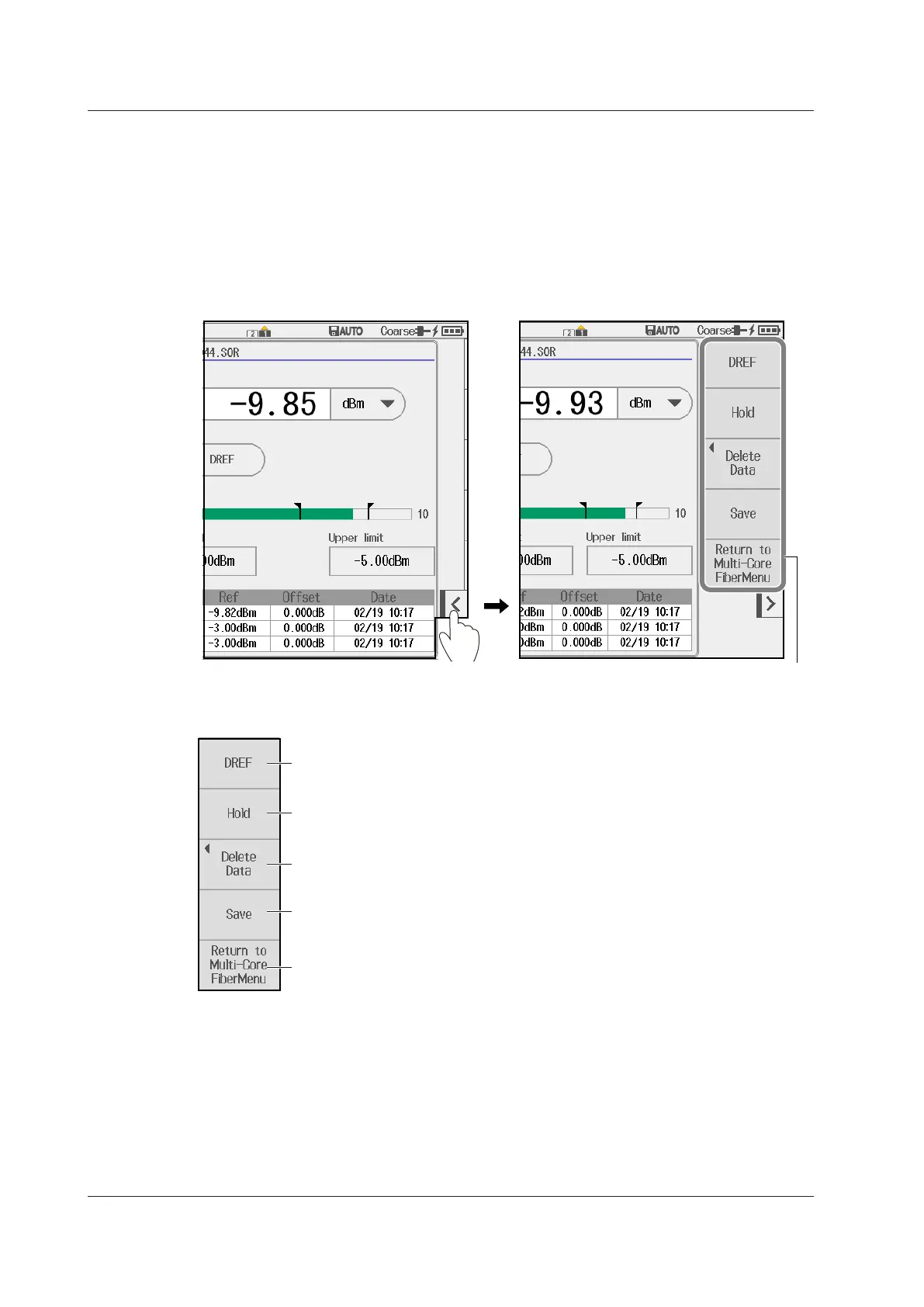

Soft Key Menu (optical power meter)
13.
Tap the soft key menu display button. An optical power meter soft key menu appears.
Optical Power Meter Menu
Sets the reference to the currently displayed measured value
See page 7-11.
Holds the measured value display
See page 7-11.
Saves data
A screen appears for saving the results of optical power measurements
for multi-fiber cables.
See page 7-12.
Returns to the core selection screen of multi-fiber measurement
Deletes the measurement data of the core number
See page 7-13.
8.2 Measuring a Multi-Core Optical Fiber Cable (Multi-Fiber Project)
