Using the Application Feature
1
2
3
4
5
6
7
8
9
10
11
App
Index

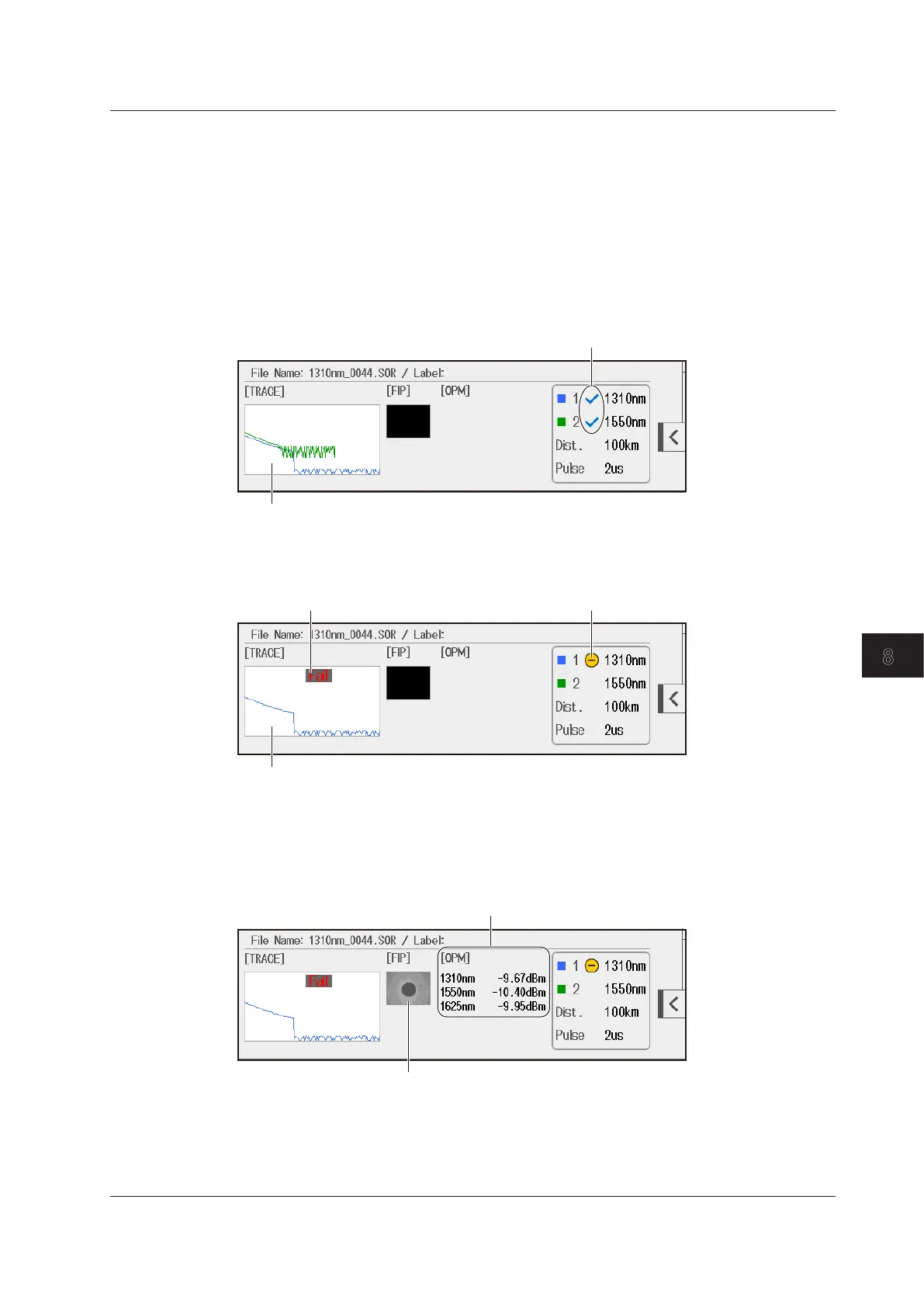

Previewing Measured Results
Using the arrow keys or the rotary knob, move the cursor to a core number cell with a pass/fail
judgment result indication on the multi-fiber measurement screen. The preview area at the bottom of
the screen displays the measurement conditions, measurement date, and the measurement result
waveform of the selected core number. For details on pass/fail judgment, see section 4.3.
Real-Time/Averaged Measurement Preview
• When Pass/Fail Judgment Is Set to OFF
Check marks appear next to the wavelengths for which measured data is saved.
Check marks
Preview waveform
• When Pass/Fail Judgment Is Set to ON
Judgment result marks appear next to the wavelengths for which measured data is saved.
Judgment result marks
Preview waveform
Judgment result display
Optical Power Measurement Results and Fiber Inspection Probe Observation
Results
The optical power of the measured wavelength is displayed. An image data is displayed for the fiber
inspection probe observation results.
Preview image of the fiber inspection probe
Optical power values
8.2 Measuring a Multi-Core Optical Fiber Cable (Multi-Fiber Project)
