8-24
IM AQ1210-01EN

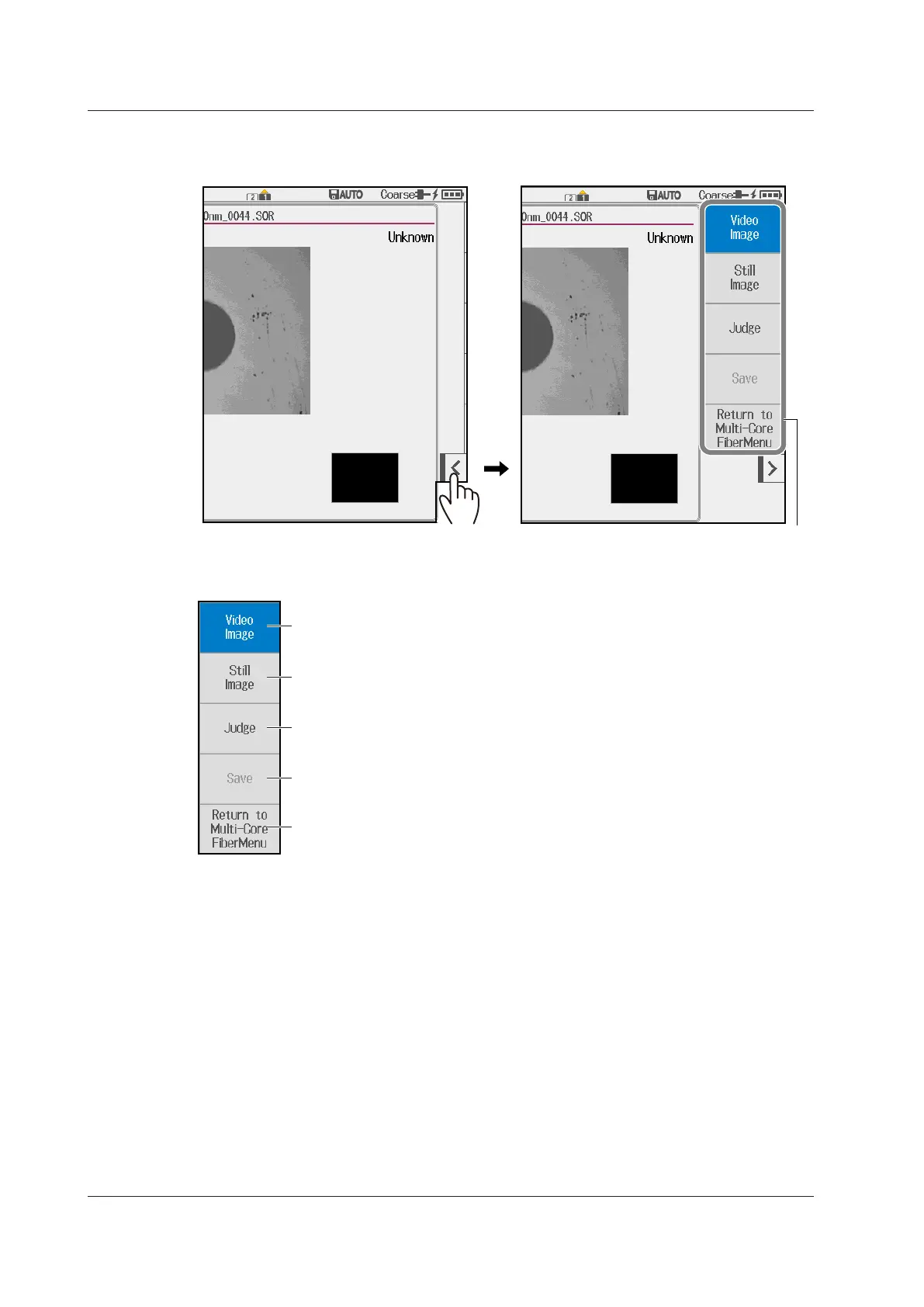

Soft Key Menu (fiber inspection probe)
8.
Tap the soft key menu display button. A soft key menu for the fiber inspection probe appears.
Soft key menu
Fiber Inspection Probe Menu
Displays the image in real time
Holds the image display (HOLD)
Starts saving
Press this soft key to save the still image to a BMP file. For the file save destination,
see section 9.4. For the procedure to set the file name, see section 2.4.
Executes pass/fail judgment
A pass/fail judgment is performed, and the result (summary) is displayed.
See section 7.6.
Returns to the core selection screen of multi-fiber measurement
