Advanced Analysis (Waveform Analysis) Screen
Up to four waveforms can be loaded and compared.
2 way trace analysis
The waveform measured from each end can be
combined and compared.
Differential trace
You can display a waveform obtained by subtracting the values of one waveform
from those of another waveform selected as the current trace.

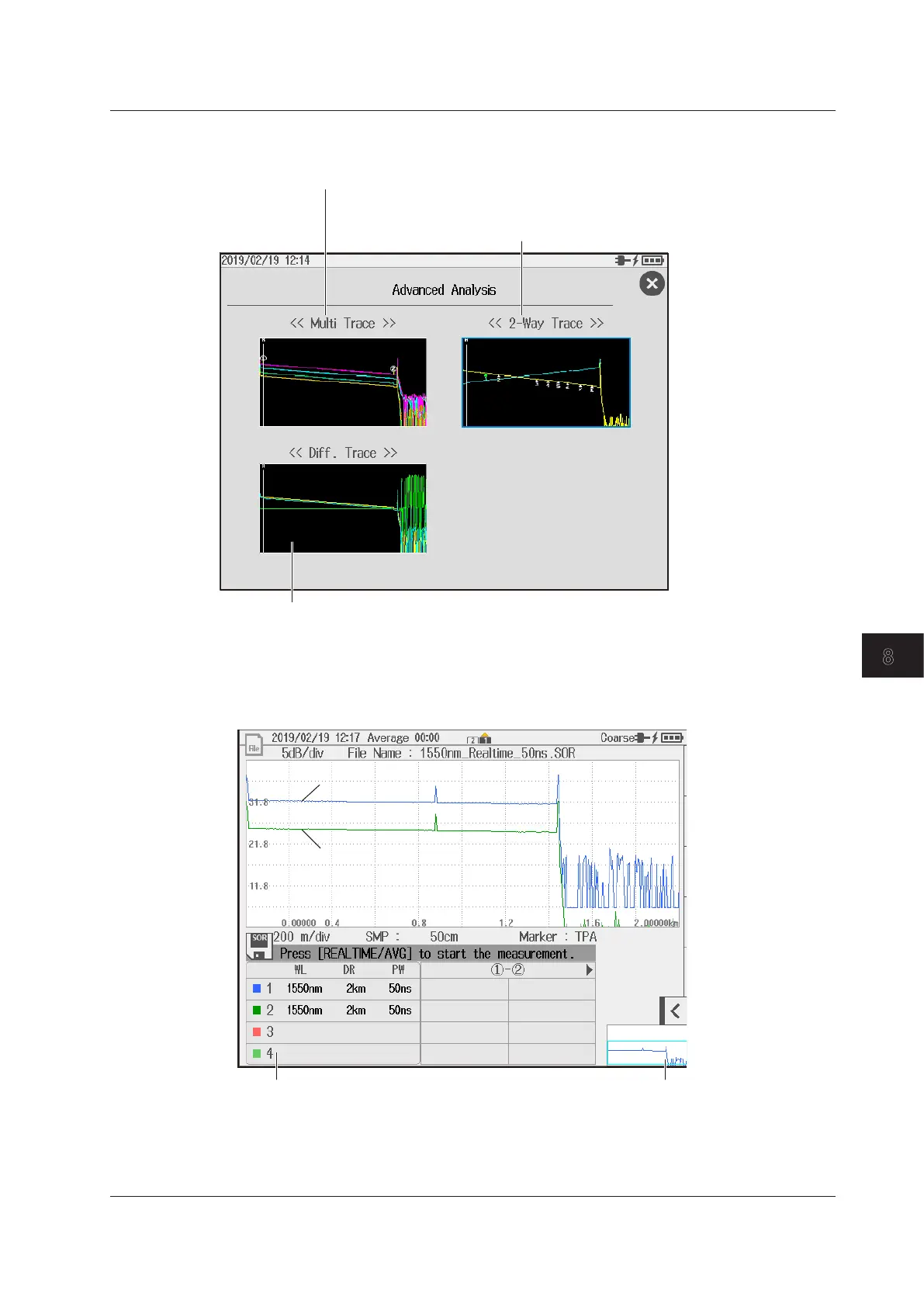

Multi Trace Analysis
3.
Tap the Multi Trace item to display the Multi Trace screen.
Displays the waveform information loaded into Trace1 to Trace4
(wavelength, dynamic range, power value)
Overview display
See section 6.2.
Trace1 waveform display
Trace2 waveform display
8.5 Performing Advanced Analysis (Advanced Analysis)
