8-48
IM AQ1210-01EN

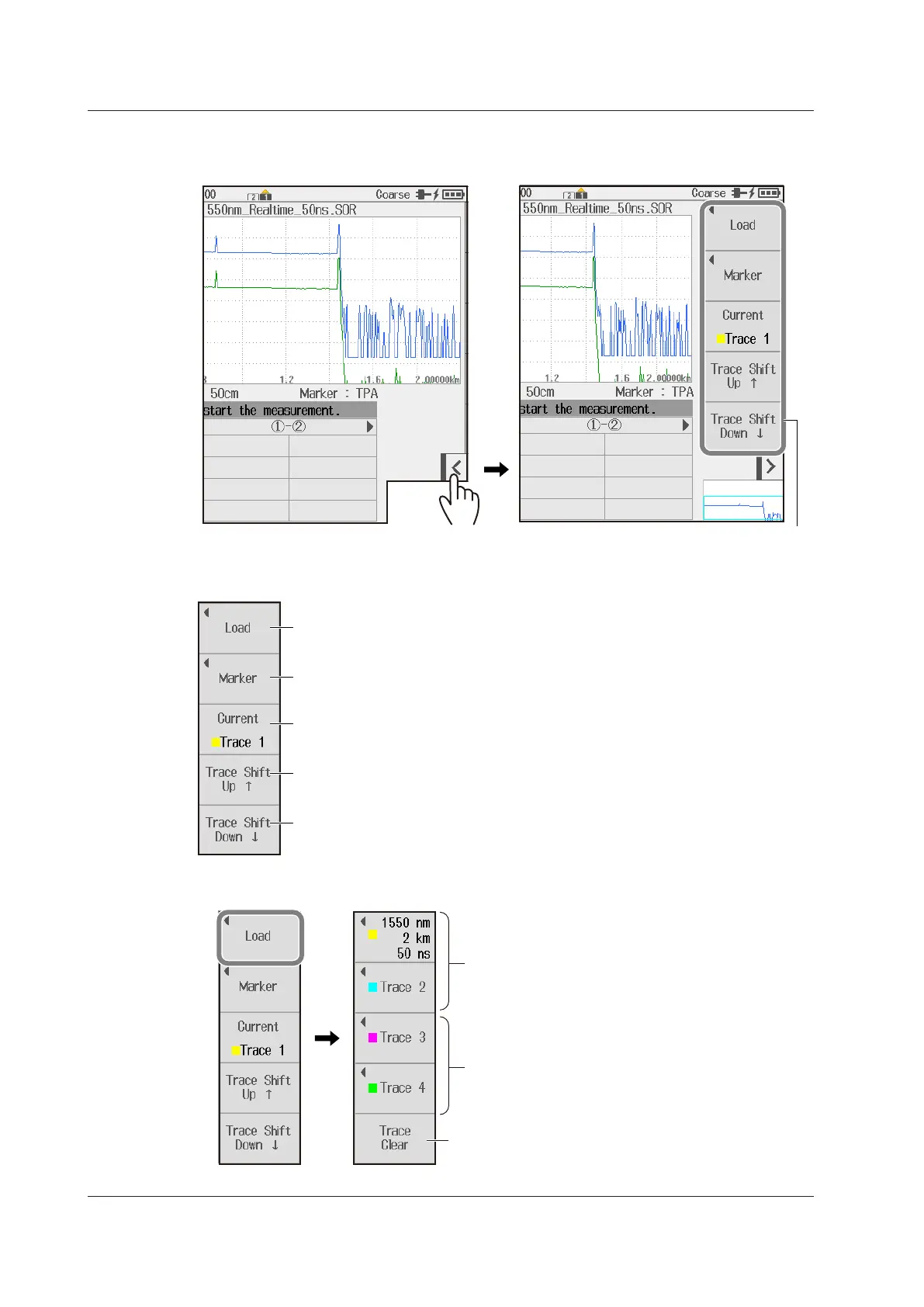

Soft Key Menu (multi trace)
4.
Tap the soft key menu display button. A multi trace soft key menu appears.
Multi Trace Analysis Menu
Load analysis waveforms.
Set markers (4 Point Markers).
See page 6-8.
Selects the current trace (Trace 1, Trace 2, Trace 3, Trace 4)
Select the waveform to place markers and cursors on or move vertically.
Moves the trace up
Moves the display position of the current trace up.
Moves the trace down
Moves the display position of the current trace down.
• Loading Waveform Analysis
Clears the waveforms of Trace1 to Trace4
When already loaded, the measurement conditions
(wavelength, distance range, pulse width) are displayed.
When tapped, a file operation screen appears, and you
can load waveforms. See section 9.4.
When tapped, a file operation screen appears, and
you can load waveforms. See section 9.4.
8.5 Performing Advanced Analysis (Advanced Analysis)
To Next Page
