2-29
IM AQ1210-01EN
Setting Up the OTDR Feature
2
Report Format
Measure Conditions (Job Information)
The following information is included.
Label Originating Loc
Company Name Terminating Loc
Name Current Data Flag
Fiber ID Supplier Name
1
Fiber Type Model Name
1
Cable ID Unit Name
1
Cable Code FW Ver.
*1, *2
1 Automatically included by the instrument
Report creation date and time
1
2 Firmware version
Information such as label and company name can be specified on the Label Setup screen explained
in “Setting Labels.” Set these if necessary.
Measured Results (Link Summary)
The following information is included.
• Total distance
• Total loss
• Total return loss
• Number of events
• Fault events
• Pass/fail judgments
• Measured date

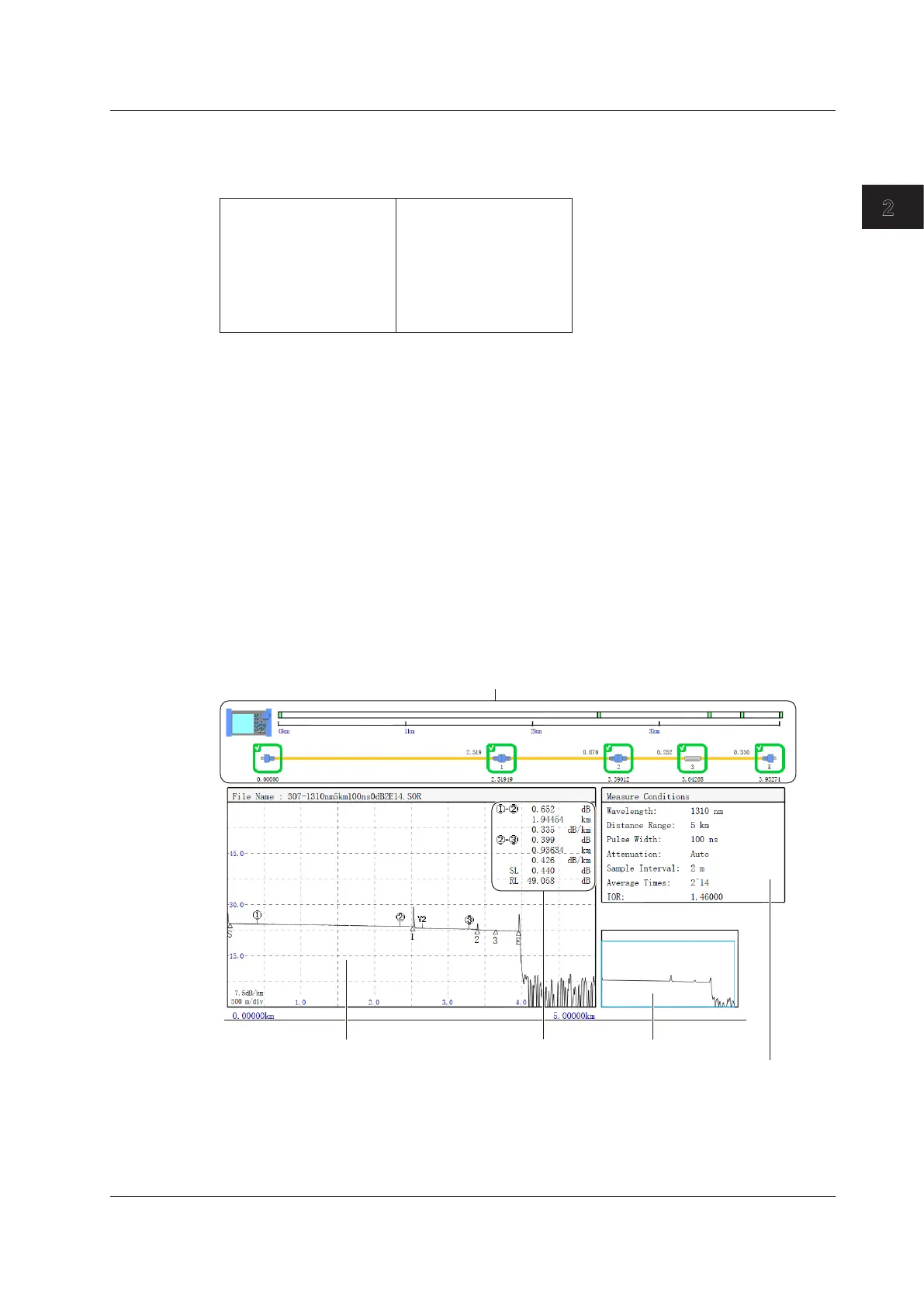

Map, Waveform, Marker Information, Measurement Conditions, and Overview
These are included as shown below.
Waveform (Trace)
Marker
information
Overview
2.4 File Conditions
To Next Page
