YOKOGAWA AQ1215A User Manual

2-30
IM AQ1210-01EN

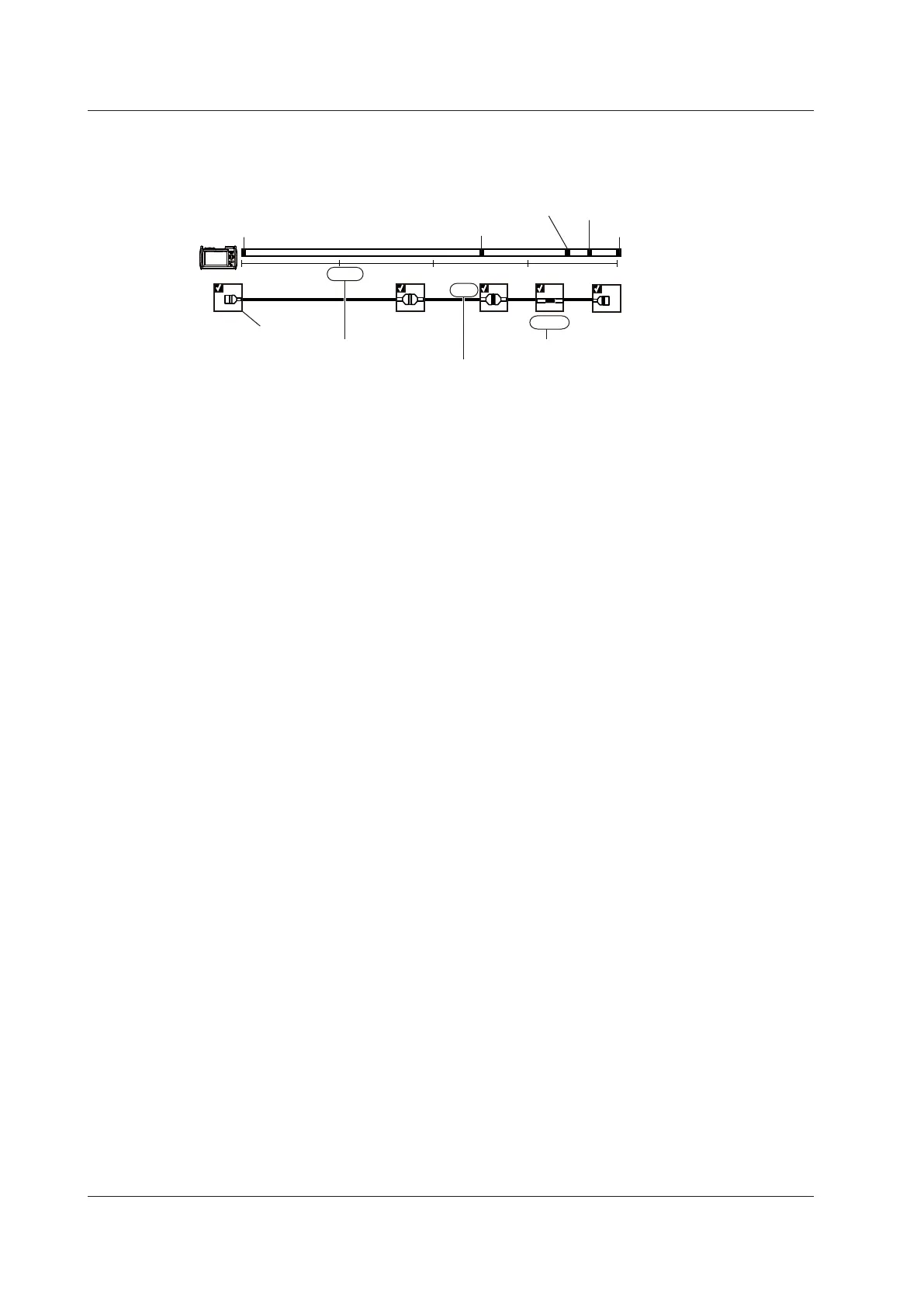

• Map
The events in the event list are mapped as icons. Up to 100 events can be mapped. For a
description of icons, see section 1.3.
0.00000
2.51949 3.39012
3.64268
3.95274
2.519
0.870
0.252
0.310
0km 1km 2km 3km
Start point
Splice point
Connector (return loss)
End point
Distance scale
value
Icon display
Distance from the start point
Distance between
events
Connector (return loss)
Event Search Conditions
The following information is included.
• Splice loss
• Return loss
• End of fiber
• Splitter loss
• Backscatter level
• Macro bending
Pass/fail Judgment Conditions
The following information is included.
• Connector loss
• Splice loss
• Return loss
• Splitter loss
• dB/km
• Total loss
EventList Setup
The following information is included.
• Event number
• Distance
• Section
• Splice loss
• Return loss
• Cumulate loss
• dB/km
• Event type
• Section group index
2.4 File Conditions
