3-3
IM AQ1210-01EN
Performing Real-time Measurement
1
2
3
4
5
6
7
8
9
10
11
App
Index

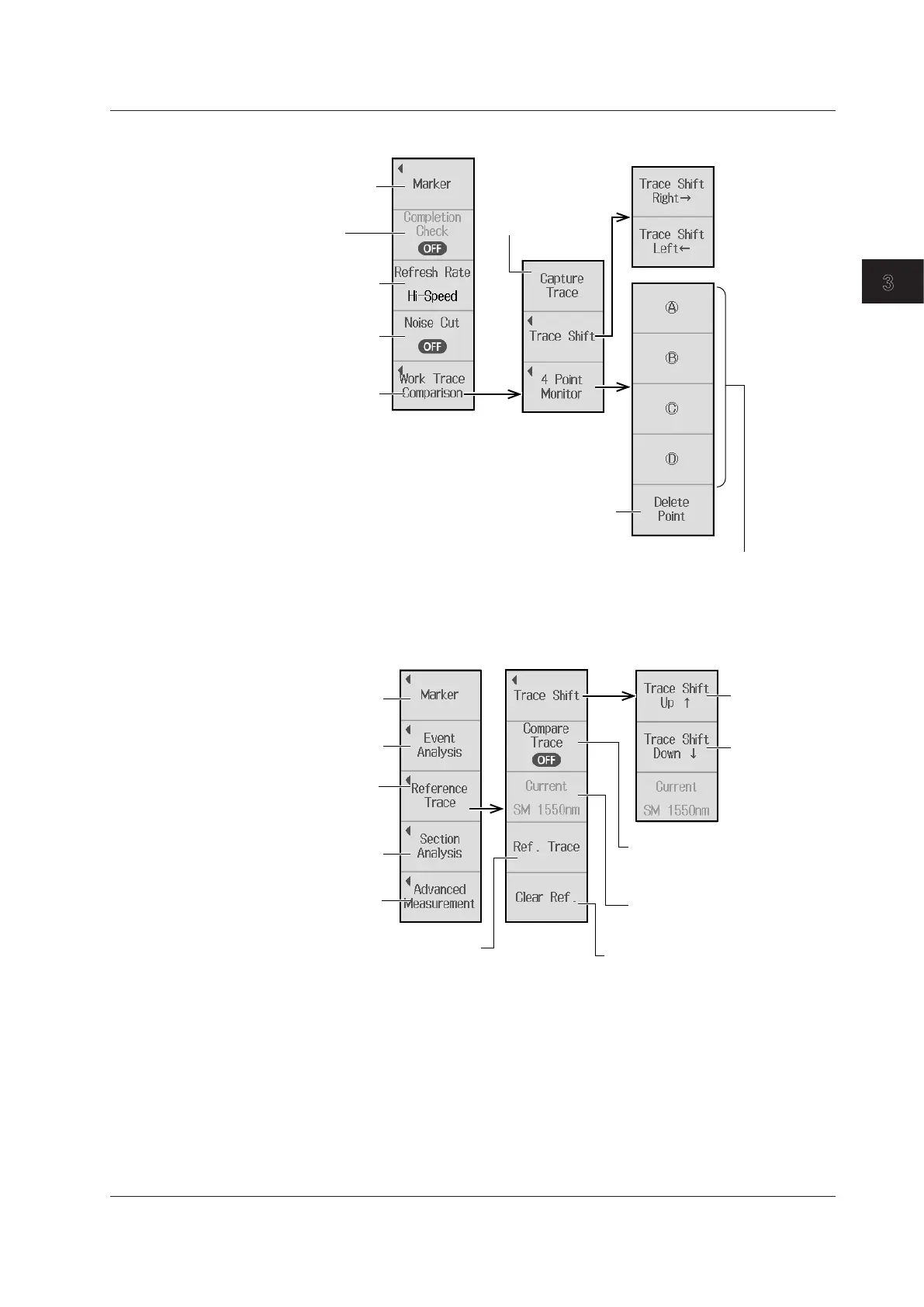

• When Real-Time Measurement Is in Progress
Marker operation
See section 6.1.
Cable installation
completion notification
See section 3.3.
Switches the waveform
display fresh rate
Cuts waveform display
noise
Work trace comparison
control
See section 3.4.
Captures the
waveform data before
the construction
Loss monitor markers
Displays the loss at the
position were each marker
is placed
Clears markers
• When Real-Time Measurement Is Not in Progress
Marker operation
See section 6.1.
Event analysis control
See section 5.1.
Snapshot (Reference
trace) control
See section 6.3.
Section analysis control
See section 6.4
Set work completion.
See section 3.3.
Moves the
snapshot
waveform up
Moves the
snapshot
waveform down
Displays the difference waveform
between the real-time measurement
waveform and snapshot waveform
Switches the current trace
Can be controlled during multi
wavelength measurement.
Takes a snapshot
Clears the snapshot waveform
3.1 Performing Real-time Measurement
