5-2
IM AQ1210-01EN

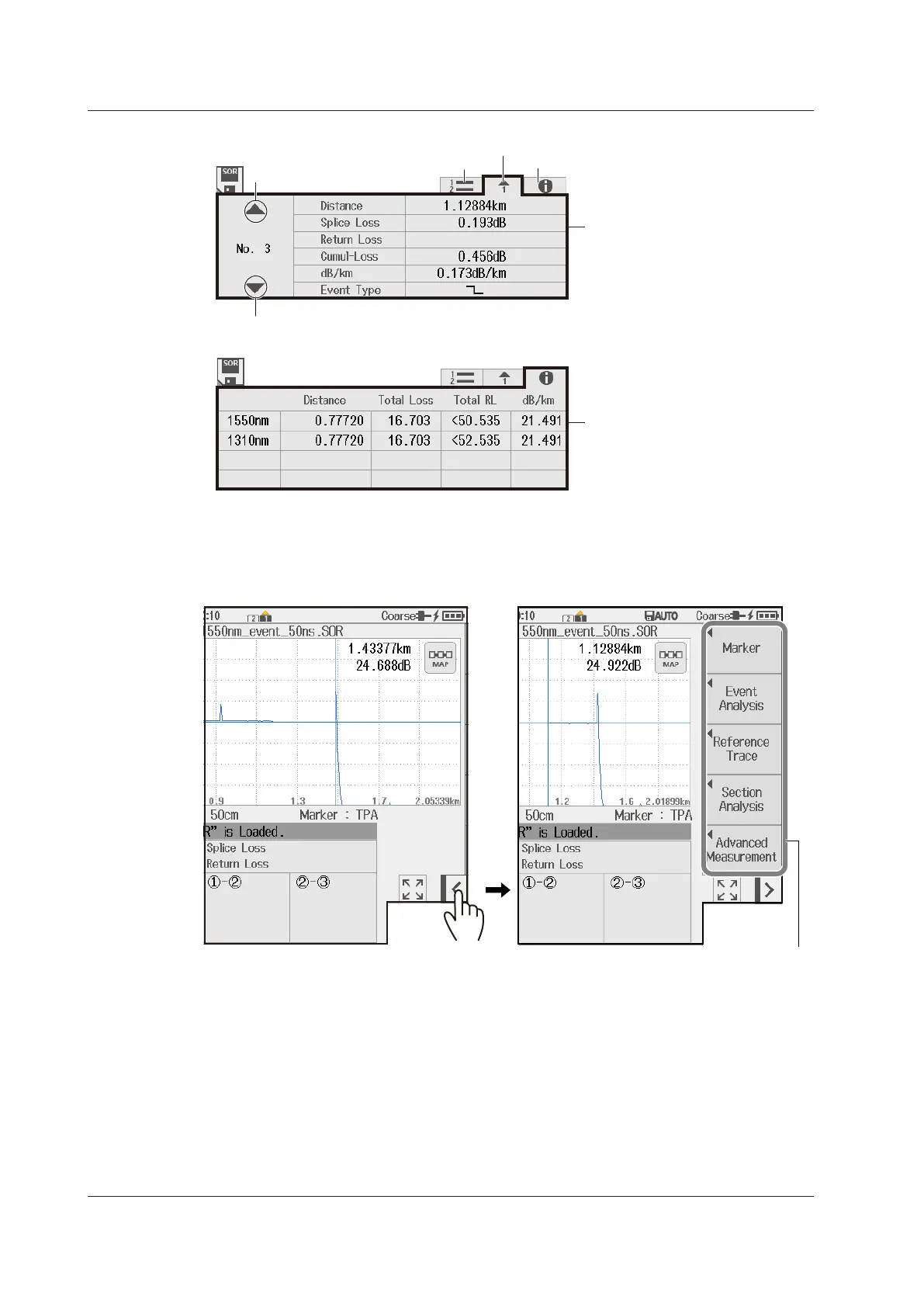

Cumulative display of events
Displayed by tapping the Summary tab.
Tab display
List
Detail
Summary
Display of separate events
Displayed by tapping the Detail tab.
Displays the previous event
Displays the next event
Soft Key Menu (event analysis)
4.
T
ap the soft key menu display button.
Soft key menu
When Real-Time Measurement or Averaged
Measurement Is Not in Progress
5.1
Analyzing in TRACE Mode
94
96
