5-4
IM AQ1210-01EN
• Inserting an Event
7.
Tap the Rotary Knob soft key to select Cursor.
8.
Turn the rotary knob to move the cursor to the position where you want to insert an event.
9.
Press the Ins. Event (Cursor) soft key. An event is inserted at the cursor position.

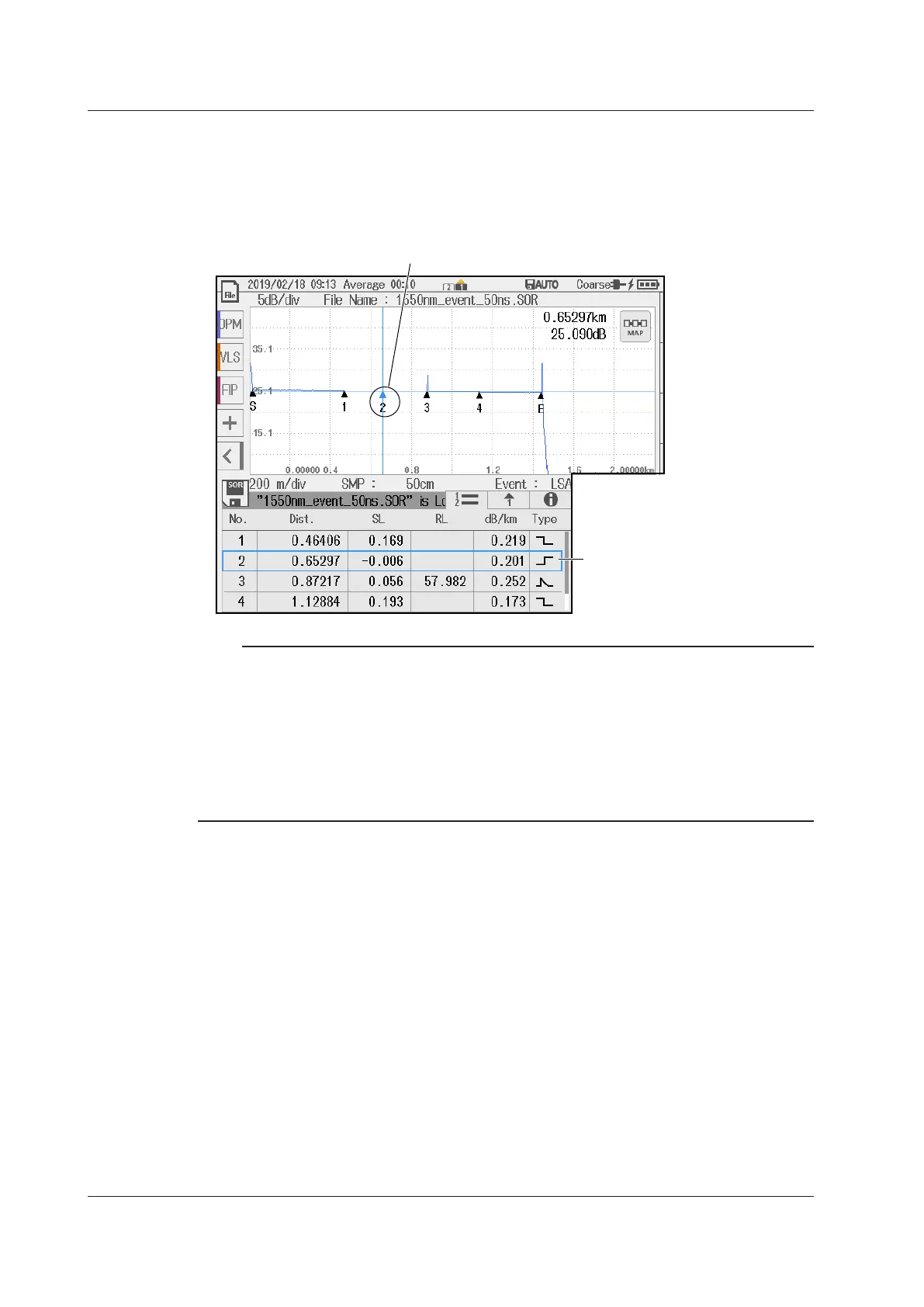

A virtual event is inserted at the cursor position.
Event numbers are updated automatically.
The inserted event is added to the
event list.
Note
• The event list can display up to 100 events.
• If you insert an event between two events that are displayed, the new event takes on the number that
follows the event on the left, and all subsequent event numbers are increased by one. You cannot insert
events to the left of the S point.
• You cannot insert events to the left of the distance reference. You can use the Set Distance Reference
soft key to move the distance reference.
For details on the distance reference, see page 6-6.
• If you insert an event to the right of the E event, the inserted event becomes the E event, and a new
number is assigned to the former E event.
5.1 Analyzing in TRACE Mode
To Next Page
