YOKOGAWA CQ1 User Manual

<5. Functions of CQ1 Software> 5-23
IM 80J01A01-01E
󳏁 Excitation Power
Specify light source power (laser or lamp) in the range of 0.0%󳟻
100.0%
󳆽
. It is able to specify any way shown following. (The
same goes for 󳏂, 󳏃)
󳏂 Exposure
Specify camera exposure time in the range of 50ms󳟻10,000ms
(10 sec.)
󳏃 Pinhole Disk Speed
Specify rotation speed of the pinhole disk array of confocal unit in
the range of 1,800rpm󳟻4,000rpm. Default value is 3,600rpm.
󳏄 Binning Number
Specify binning condition of the camera. Set binning number
bigger and image resolution become lower, image brightness
become higher, and data size become smaller
Binning
Number
Description
1
Unuse binning function. One camera pixel is saved as one
pixel of image data.
2
Combine adjacent 2X2 camera pixels and save as one pixel
of image data.
4
Combine adjacent 4X4 camera pixels and save as one pixel
of image data.
8
Combine adjacent 8X8camera pixels and save as one pixel
of image data.
Binning 1
Binning 2
Binning 4

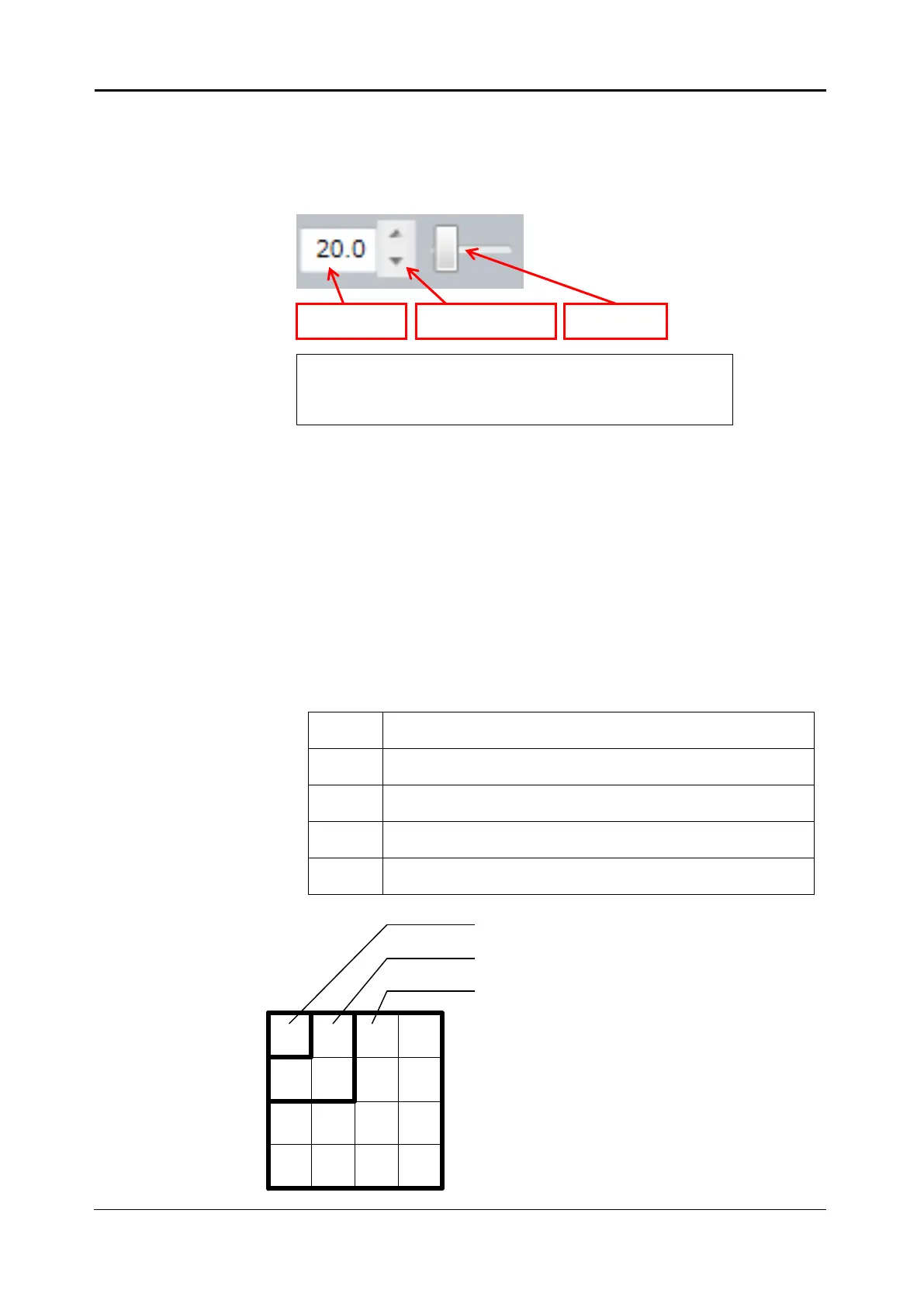

Direct input
Up/ Down button
Slider bar
󳆽Note
Guaranteed power range of transmission illumination is
10.0 % 󳆗 100.0 %.
