5.5.4 Output Window
Output images and charts and others displayed in CQ1 software as
images in designated folder (Report folder).

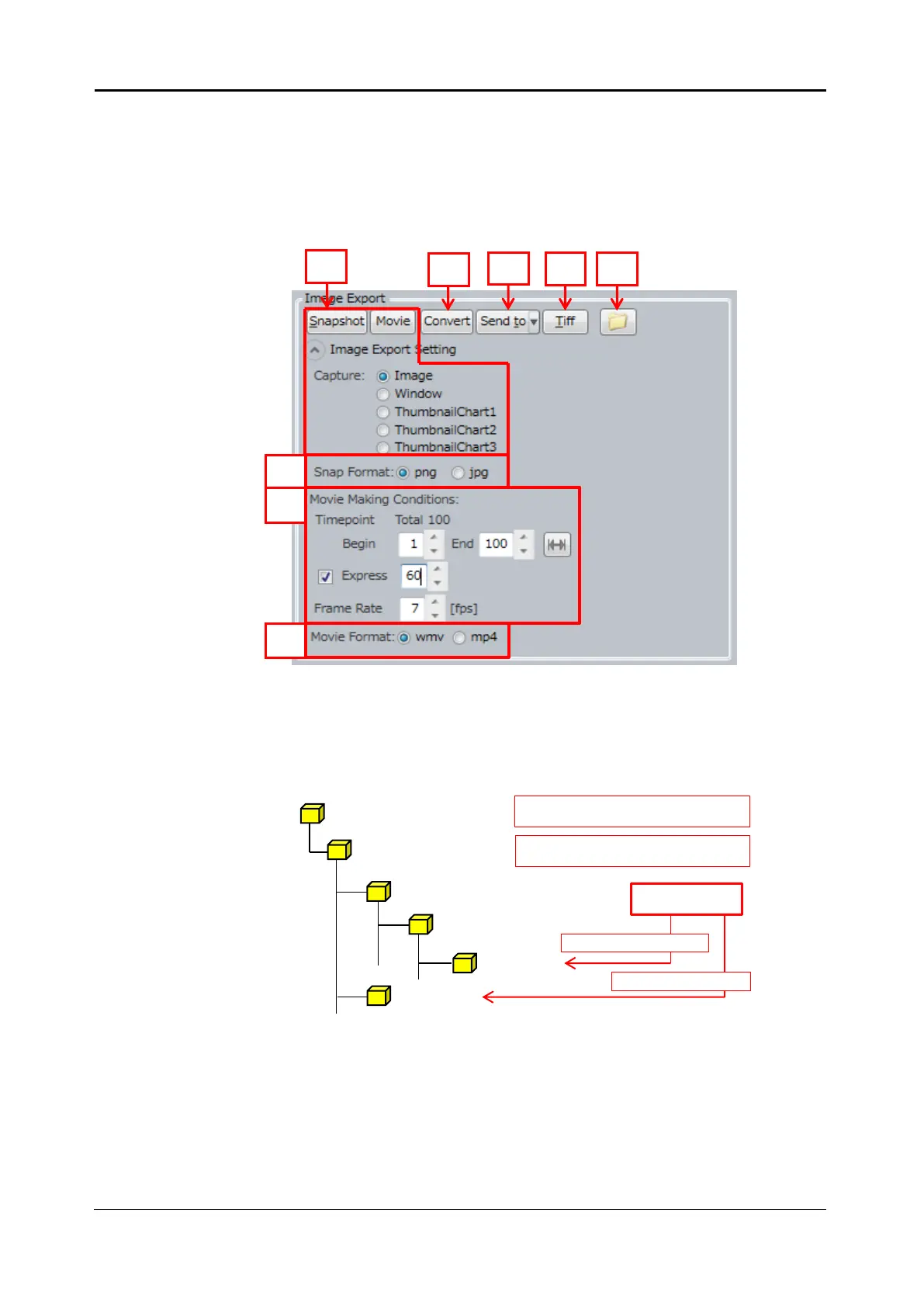

(1) Image Export
󳏀 Output Folder
Click to open Report folder. Report folder is generated in following
path.
󳏁
󳏂
󳏅
󳏆
󳏃
󳏇
󳏀
󳏄
DataFolder
MeasurementData
Folder designated in “Protocol”
tab→”Save Folder Name”
Analysis
Reports
Analysis_<Date>
Reports
Folder designated in “Protocol”
tab→”Save Setting”
Report folder
Imaging and analyzing
Only imaging
