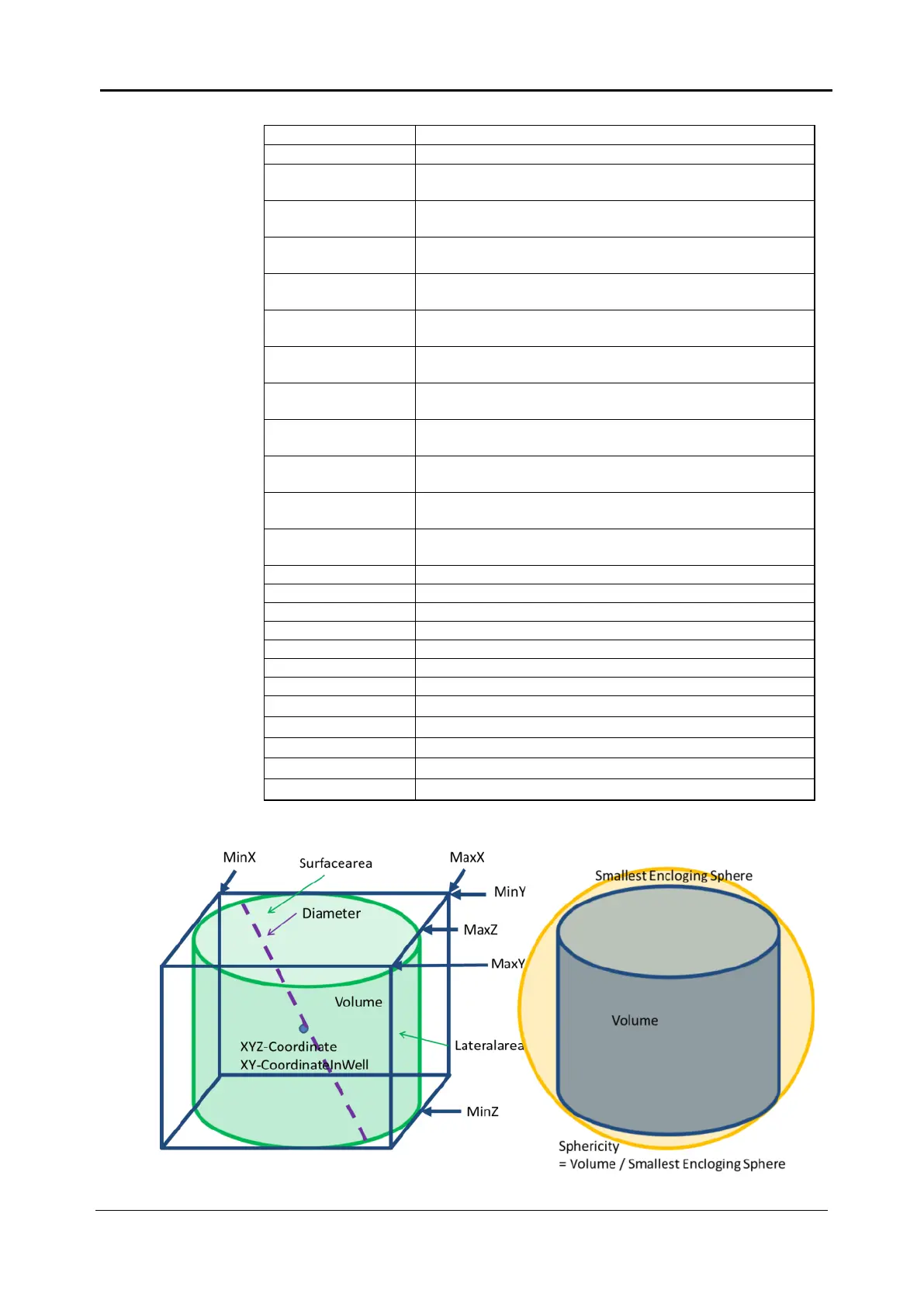

(2) 3-Dimentional Measurement
Item
Description
Volume
Volume [µm
3
]
X-Coodinate
X coordinate of centroid [µm]
(In reference to upper left of Z=1-image)
Y-Coodinate
Y coordinate of centroid [µm]
(In reference to upper left of Z=1-image)
Z-Coodinate
Z coordinate of centroid [µm]
(In reference to upper left of Z=1-image)
X-CoordinateInWell
X coordinate of centroid [µm]
(In reference to center of well)
Y-CoordinateInWell
Y coordinate of centroid [µm]
(In reference to center of well)
MinX
Min.X axis [µm]
(In reference to upper left of Z=1-image)
MaxX
Max.X axis [µm]
(In reference to upper left of Z=1-image)
MinY
Min.Y axis [µm]
(In reference to upper left of Z=1-image)
MaxY
Max.Y axis [µm]
(In reference to upper left of Z=1-image)
MinZ
Min. Z axis [µm]
(In reference to upper left of Z=1-image)
MaxZ
Max.Z axis [µm]
(In reference to upper left of Z=1-image)
Diameter
Diameter [µm]
Lateralarea
Lateral area [µm
2
]
Surfacearea
Surface area [µm
2
]
Sphericity
Sphericity
SkeletonLength
Length of line object [µm]
JunctionCount
Junction count of line object
BranchCount
Branch count of line object
TotalIntensityCHn
Total image intensity
󳆽
in channel “n”
MeanIntensityCHn
Average image intensity
󳆽
in channel “n”
SdvIntensityCHn
Standard deviation of image intensity
󳆽
in channel “n”
MinIntensityCHn
Min. image intensity
󳆽
in channel “n”
MaxIntensityCHn
Max. image intensity
󳆽
in channel “n”
󳆽
Note
Value that background(about 100) is substructed is output.
