Common Operations
4
4.5 Performing Auto Setup
The auto setup feature automatically sets the V/div, Time/div, trigger level, and other settings to the
most suitable values for the input signals.
SETUP Menu

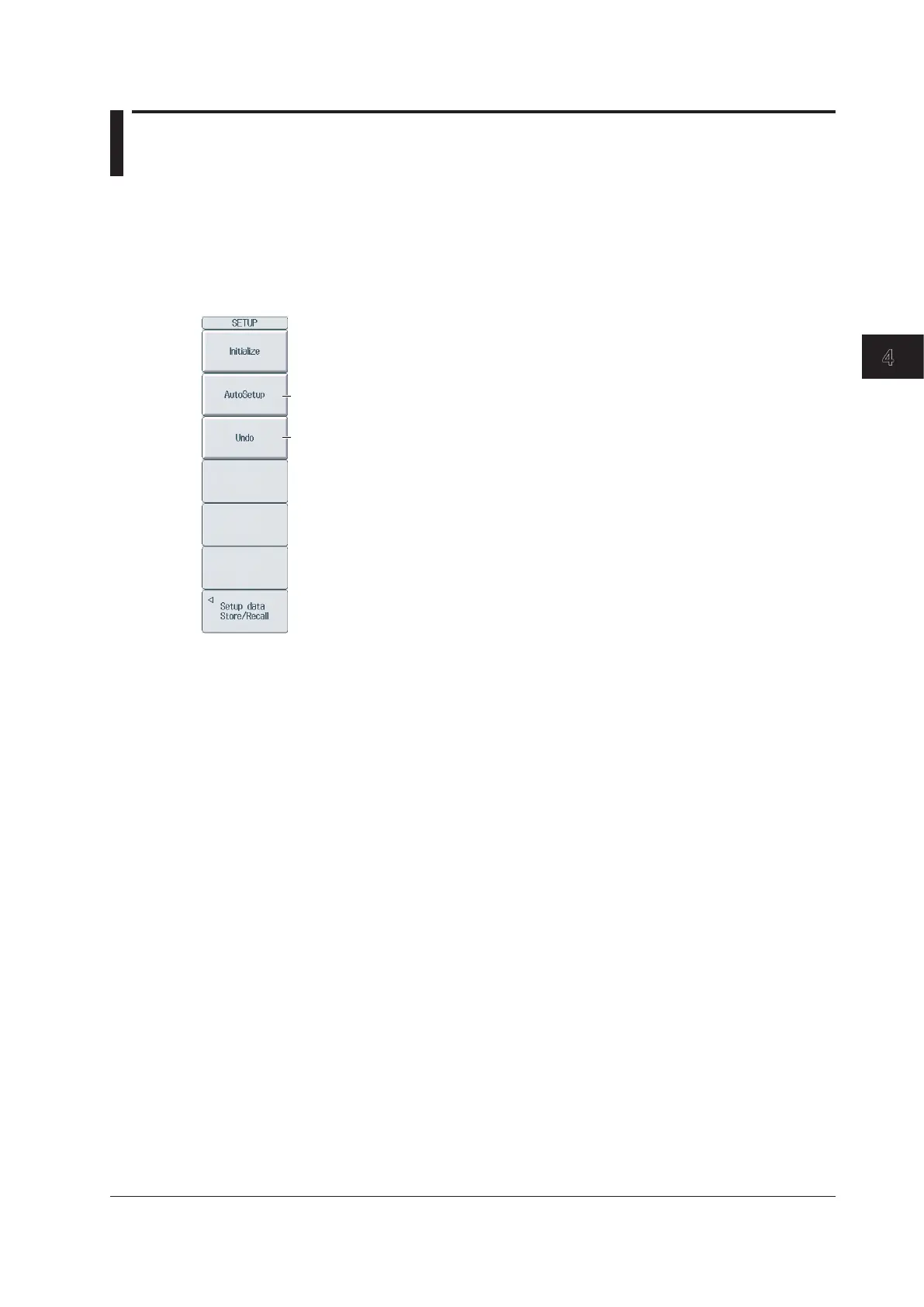

Press SETUP to display the following menu.
Undoes auto setup
Center Position after the Execution of Auto Setup
The center position after you execute auto setup will be 0 V.
Applicable Modules
Auto setup is performed on the following modules.
701250 (HS10M12), 701251 (HS1M16), 701255 (NONISO_10M12), 701267 (HV (with RMS)),
701261 (UNIVERSAL), 701262 (UNIVERSAL (AAF)), 701275 (ACCL/VOLT), 720210 (HS100M12),
720211 (HS100M12), 720220 (16CH VOLT), 720254 (4CH 1M16)
Channels That Auto Setup Is Performed On
Auto setup is performed on all channels except logic channels.
Logic waveforms are displayed with the same settings as before you executed auto setup.
Waveforms Displayed before the Execution of Auto Setup
When you perform auto setup, the data in the acquisition memory is overwritten, and the waveforms
that were displayed before you executed auto setup are cleared.
Undoing Auto Setup
You can press the Undo soft key to revert to the settings that were in effect before you executed auto
setup. You cannot undo auto setup if you switch to a different setup menu or clear the SETUP menu
using the ESC key.
