YOKOGAWA DL850E User Manual

5-6
IM DL850E-03EN
5.5 GO/NO-GO Determination I/O and External
Start/Stop Input (EXT I/O)
Connecting to Other Instruments
CAUTION
• Do not apply external voltage to the NO-GO OUT and GO OUT output pins. Doing so may
damage the instrument.
• When connecting the GO/NO-GO determination signal output to another device, do
not connect the wrong signal pin. Doing so may damage the DL850E/DL850EV or the
connected instrument.
• Do not connect a USB cable to the GO/NO-GO I/O connector. Doing so may damage the
instrument.
French
ATTENTION
• Ne pas appliquer de tension externe aux broches de sortie NO-GO OUT et GO OUT. Cela
pourrait endommager le DL850E/DL850EV.
• Lors de la connexion de la sortie de signal de détermination GO/NO-GO à un autre
instrument, veiller à ne pas connecter les mauvaises broches de signal. Cela pourrait
endommager le DL850E/DL850EV ou l’instrument connecté.
• Ne pas brancher de câble USB sur le connecteur de sortie GO/NO-GO. Cela pourrait
endommager l’instrument.

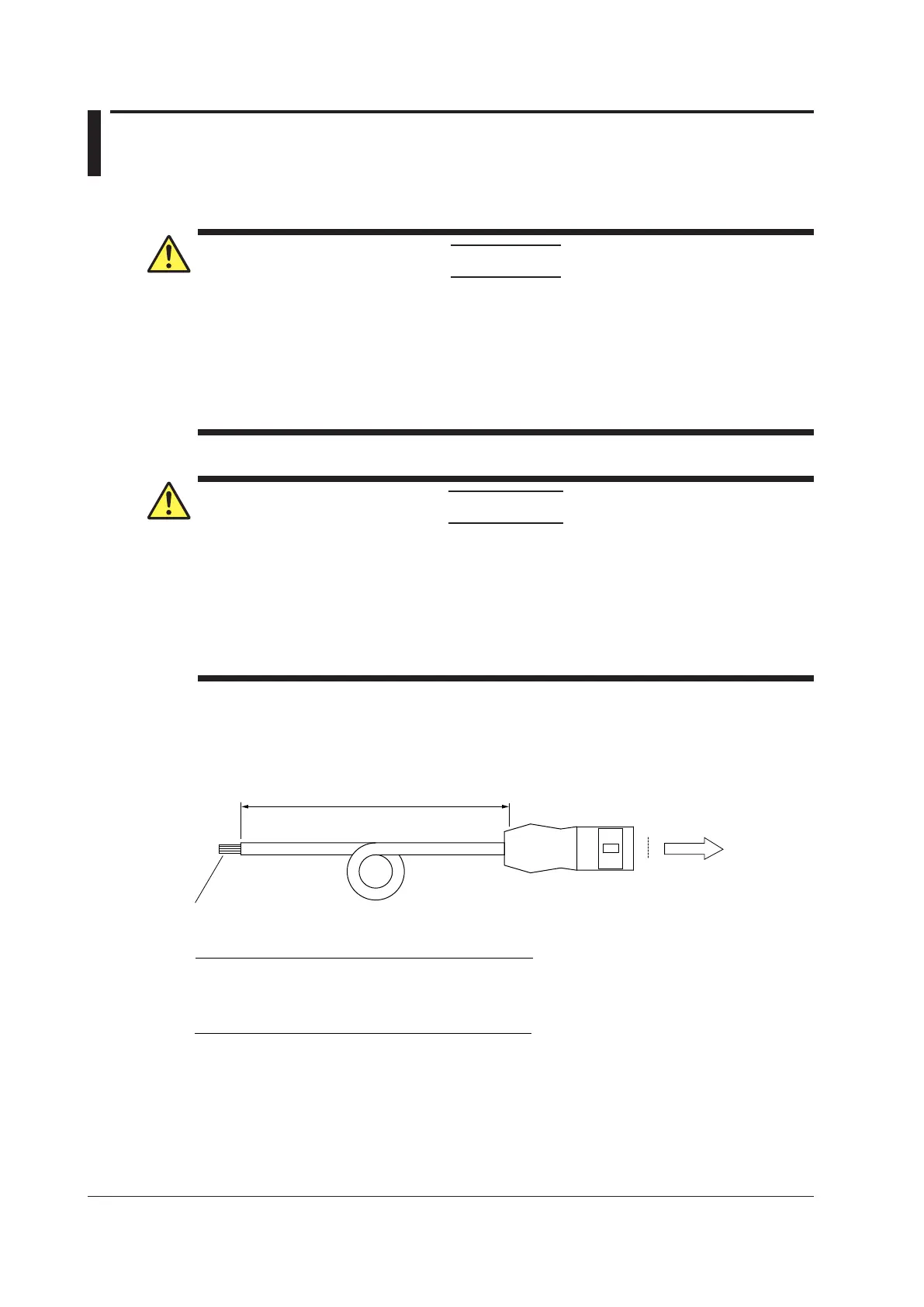

About the External I/O Cable (720911; sold separately)
• Do not use the cable for anything other than the DL850E/DL850EV external I/O.
• Refer to the following figure to connect the cable to an external device.
1
6
Approx. 1.5 m
RJ-11 connector
To the DL850E/DL850EV
Pin no. Signal Logic
1 EXT EVENT IN Negative logic
Wire color
Red
2
3
4
5
START IN
GO OUT
NOGO OUT
Negative logic
Negative logic
Negative logic
GND
Yellow
White
Green
Blue
Process the wires at the end of
the stripped cable as necessary.
