YOKOGAWA DL850E User Manual

1-3
IM DL850E-03EN
Names and Functions of Parts
1
2
3
4
5
6
App
Index

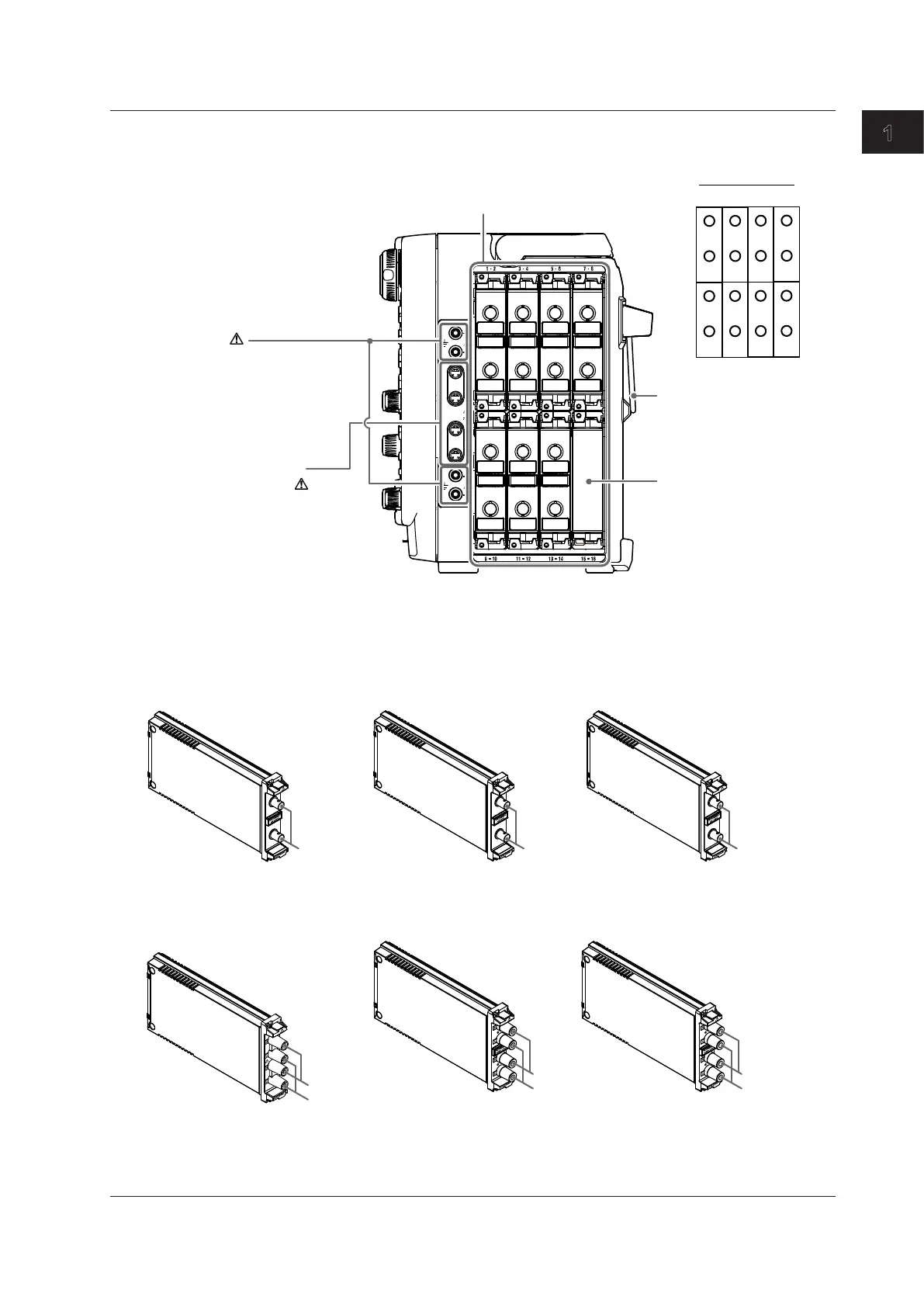

Right Side Panel
PROBE
POWER
( ± 12V DC )
Probe power supply
terminal (optional)
Use to supply power (±12 V)
to current probes.
Probe connection method
→ Section 3.5
Functional ground
terminal
Use to connect the ground wire
of a high-voltage differential
probe or enhance the grounding
of the measurement equipment.
Probe connection method
→ Section 3.5
Input module installation slot
Empty-slot protection
cover panel
Attach to slots that do not have
input modules installed.
Stand
Setup method → Section 3.2
CH3
CH4
Input channel
arrangement
CH1
CH2
CH7
CH8
CH5
CH6
CH11
CH12
CH9
CH10
CH15
CH16
CH13
CH14
Slot 1 2 3 4
Slot 5 6 7 8
There are a total of eight slots. Input module
insertion and removal method → Section 3.3
Input Modules
The following input modules are available.
High-Speed 10 MS/s,
12-Bit Isolation Module
HS10M12 (model: 701250)
High-Speed High-Resolution
1 MS/s, 16-Bit Isolation Module
HS1M16 (model: 701251)
High-Speed 10 MS/s,
12-Bit Non-Isolation Module
NONISO_10M12 (model: 701255)
Universal (Voltage/Temp.)
Module
UNIVERSAL (model: 701261)
Universal (Voltage/Temp.)
Module (with AAF)
UNIVERSAL (AAF) (model: 701262)
High-Voltage 100 kS/s,
16-Bit Isolation Module
(with RMS)
HV (with RMS) (model: 701267)
H input terminal
L input terminal
(2ch)
H input terminal
L input terminal
(2ch)
Signal input
terminal (2ch)
Signal input
terminal (2ch)
Signal input
terminal (2ch)
H input terminal
L input terminal
(2ch)
1.1 Top Panel, Front Panel, Right Side Panel, and Left Side Panel
