YOKOGAWA DL850E User Manual

1-13
IM DL850E-03EN
Names and Functions of Parts
1
2
3
4
5
6
App
Index

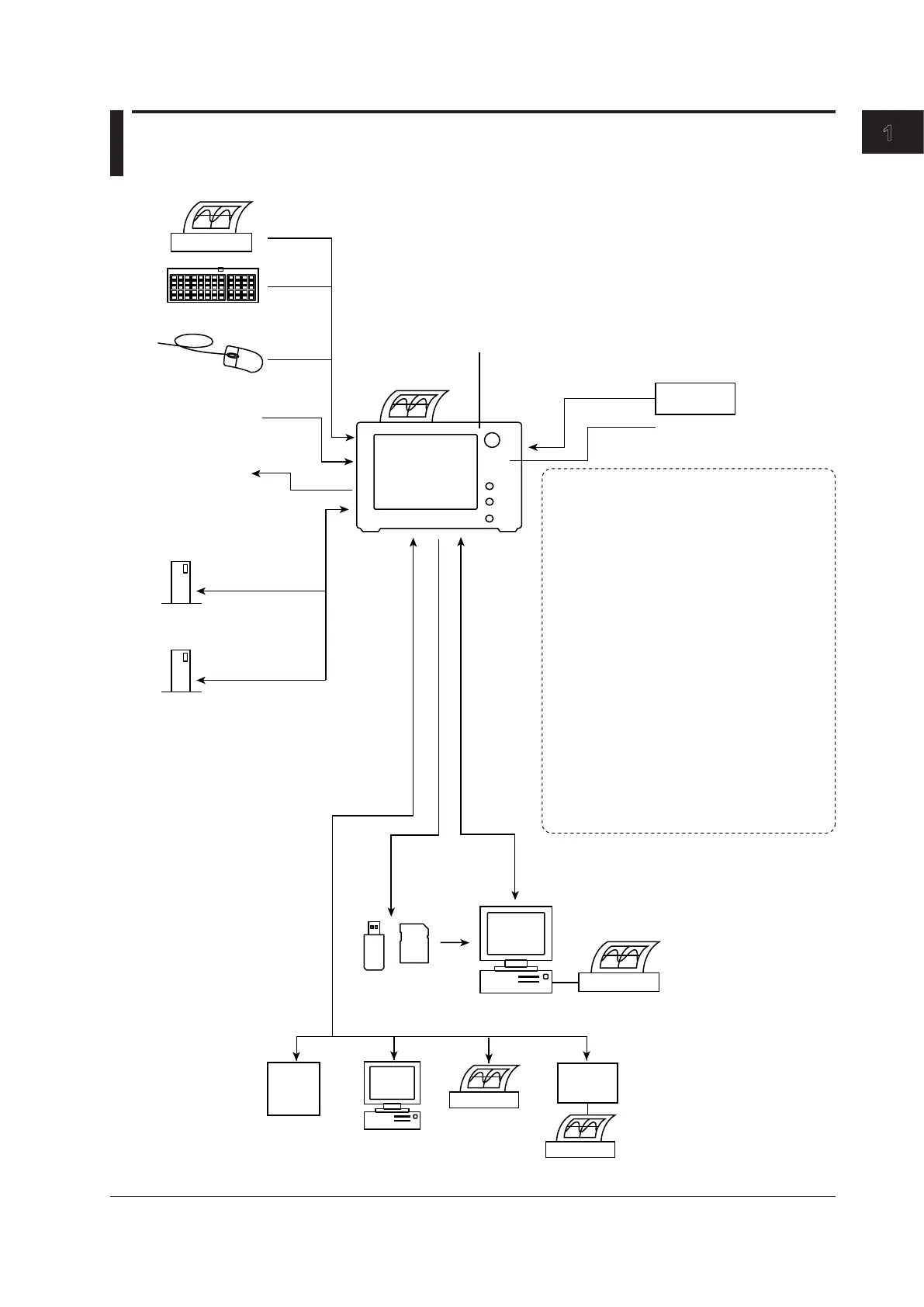

1.4 System Configuration
Signal input
DUT
• Module
1
• Probe
2
• Measurement lead
PC
Printer
USB memory/SD
memory card
Built-in printer
(optional)
• External clock input
• External trigger input
• Clock sync signal input (option)
• GO/NO-GO determination I/O
• Video signal output
• Trigger output
• Waveform data
• Setup data
• Image data
• GP-IB interface (optional)
• USB interface
(remote control through the use of commands)
DL850E/
DL850EV
Internal HDD
(optional)
Ethernet interface
PC
Network printer
FTP
server
• FTP server
• FTP client
• Web server
Print
server
Printer
HDD
Saving/loading of data
External HDD
interface
(optional)
External USB device
USB PERIPHERAL
interface
USB keyboard
USB PERIPHERAL
interface
USB mouse
USB printer
1 • High-Speed 10 MS/s, 12-Bit Isolation Module
• High-Speed High-Resolution 1 MS/s, 16-Bit
Isolation Module
• High-Speed 10 MS/s, 12-Bit Non-Isolation
Module
• High-Voltage 100 kS/s, 16-Bit Isolation Module
(with RMS)
• Universal (Voltage/Temp.) Module
• Universal (Voltage/Temp.) Module (with AAF)
• Temperature, High Precision Voltage Isolation
Module
• Strain Module (NDIS)
• Strain Module (DSUB, Shunt-Cal)
• Acceleration/Voltage Module (with AAF)
• Frequency Module
• High-Speed 100 MS/s, 12-Bit Isolation Module
• 16-CH Voltage Input Module
• 16-CH Temperature/Voltage Input Module
• Logic Input Module
• CAN Bus Monitor Module
• CAN & LIN Bus Monitor Module
• SENT Monitor Module
• 4-CH 1 MS/s, 16-Bit Isolation Module
2 • Differential probe
• Current probe
• Logic probe
