4.2 Entering Values and Strings
Entering Values
Using Dedicated Knobs
You can use the following dedicated knobs to enter values directly.
• Vertical POSITION knob
• SCALE knob
• TIME/DIV knob
• ZOOM magnification knob (MAG)
• Zoom POSITION knob (for scrolling zoom waveforms)

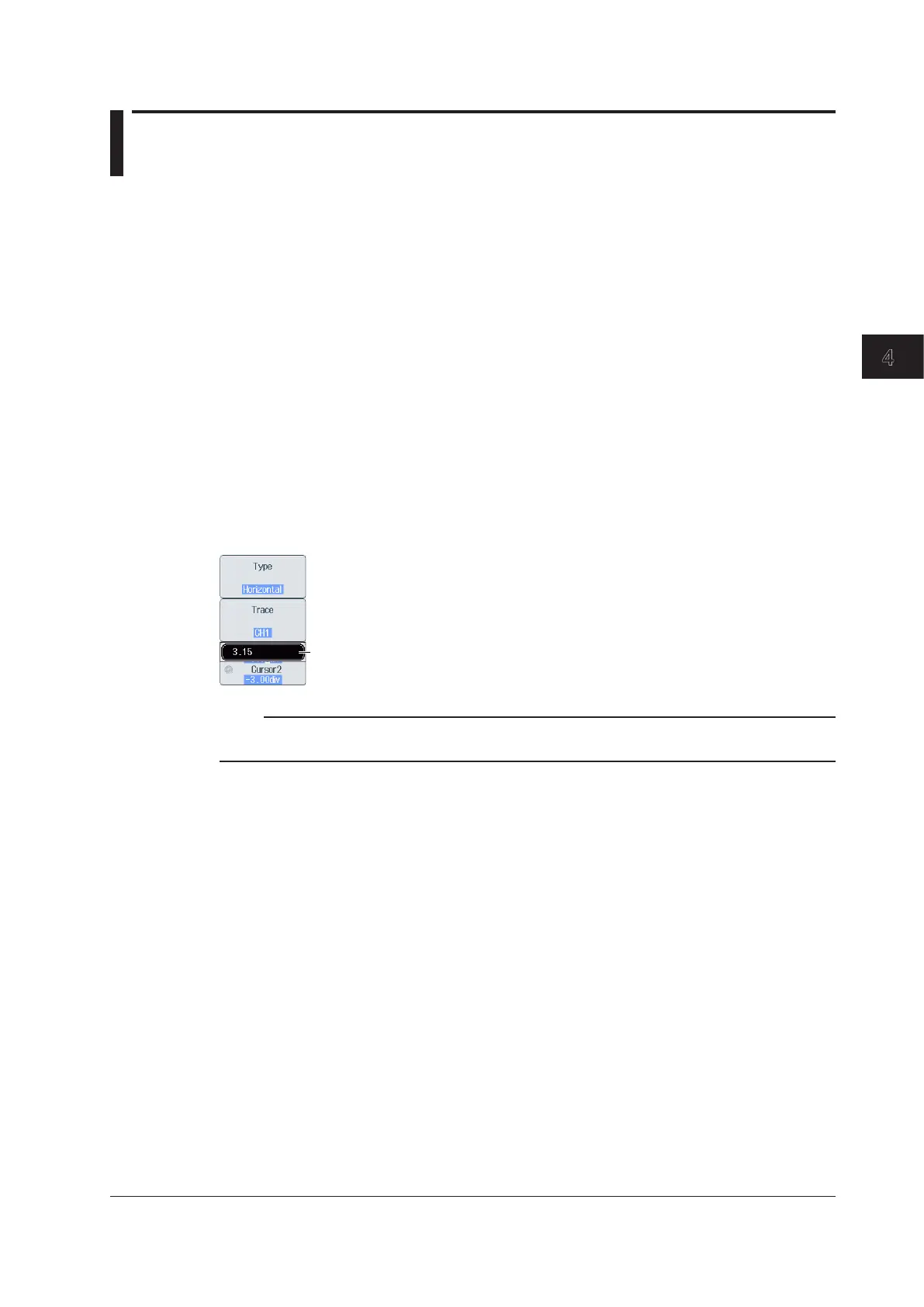

Using the Jog Shuttle
Select the appropriate item using the soft keys, and change the value using the jog shuttle, the SET
key, and the arrow keys. This manual sometimes describes this operation simply as “using the jog
shuttle.”
Using the Keypad
Press NUM LOCK to illuminate the NUM LOCK key, and use the CH1 to CH16 keys to enter a
value. After you enter the value, press ENTER to confirm it.
Use the keypad to enter the value.
Note
Some items that you can set using the jog shuttle are reset to their default values when you press the RESET
key.
