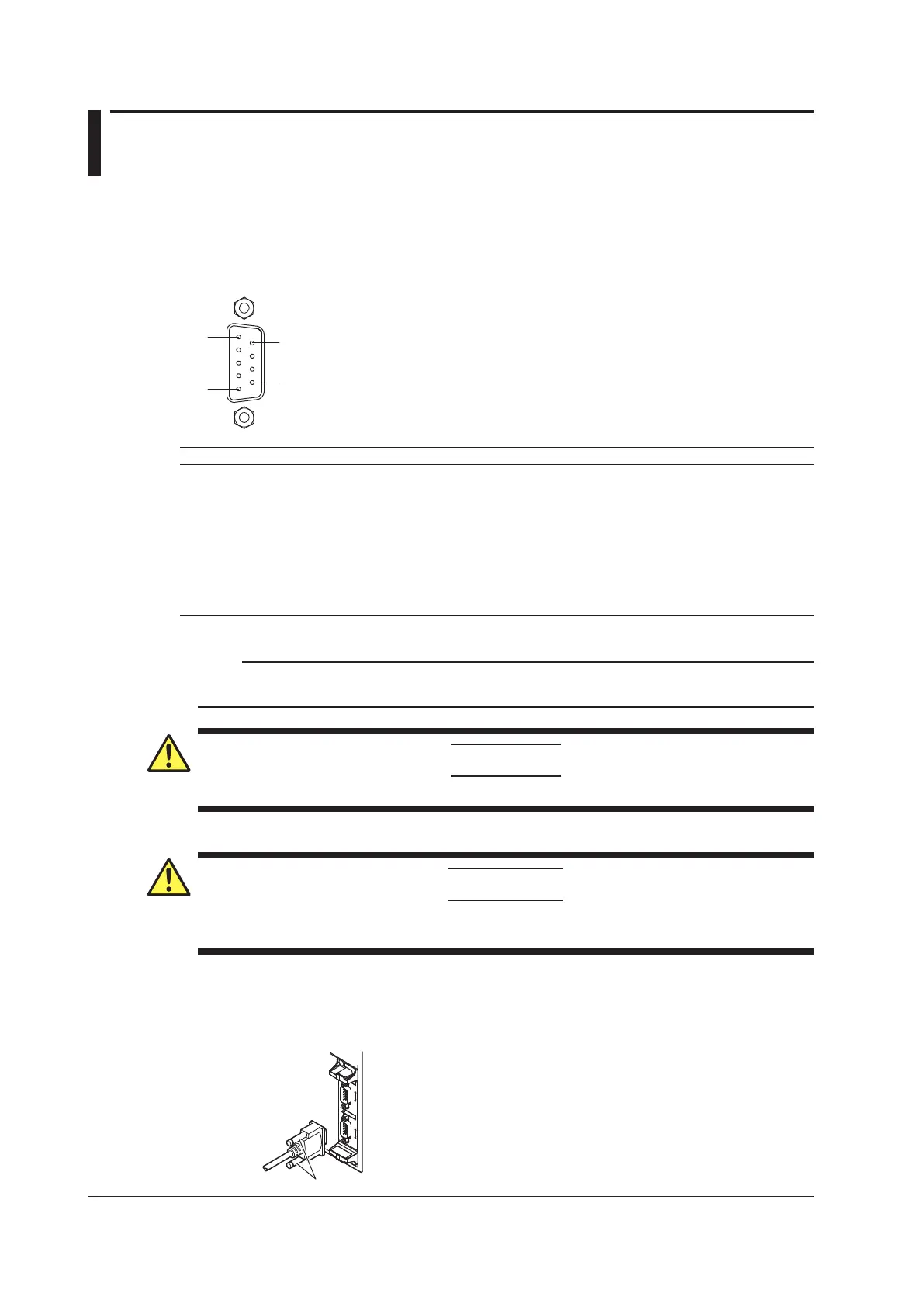

3.15 Connecting a Cable to the CAN Bus Monitor
Module
To monitor CAN bus signals, connect a cable to the CAN bus monitor module’s D-sub connector.
Connector Pinout
The pinout of the D-sub connector (9 pin, male) is shown below.
1
Pin No. Signal Function
1 (NC) Not used (can not be connected to)
2 CAN_L CAN low signal
3 GND Ground
4 (NC) Not used (can not be connected to)
5 (NC) Not used (can not be connected to)
6 GND Ground
7 CAN_H CAN high signal
8 (NC) Not used (can not be connected to)
9 (NC) Not used (can not be connected to)
* One-inch screws (number 4-40 UNC) are used.
Note
The connector shell is connected to GND. Additionally, GND and the connector shell are isolated from the
electric potential of the DL850E/DL850EV case (earth).
CAUTION
Applying a voltage greater than the maximum input voltage may damage the input section.
French
ATTENTION
Le fait d’appliquer une tension dépassant la tension d’entrée maximale risque d’endommager
la section d’entrée.
Connecting the Cable (Signal wires)
When you connect a cable to the D-sub connector, be sure to tighten the screws to ensure that the
cable is connected securely.
CAN bus monitor module
720240 (CAN MONITOR)
Cable
3-54
IM DL850E-03EN
