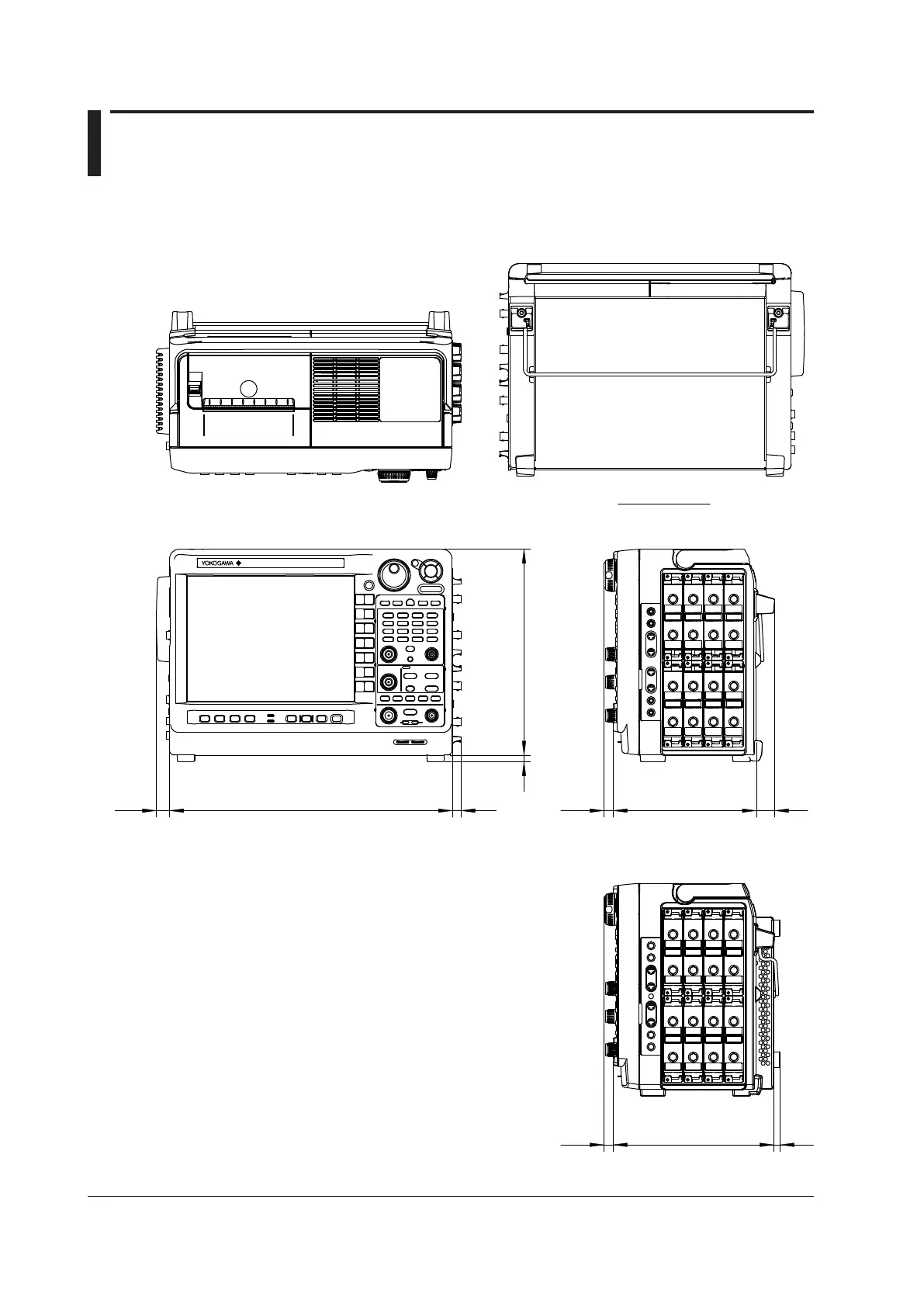

6.16 External Dimensions
DL850E/DL850EV
Unit: mm
Unless otherwise specified, tolerances are ±3% (however, tolerances are ±0.3 mm when below 10 mm).
Rear view
16.5 355 11
8
259
11.7 180 23
11.7 202 8
DC Power Model
