Specifications
6
High-Speed 10 MS/s, 12-Bit Non-Isolation Module (701255)
Item Specifications
Standard operating conditions Temperature: 23 ±5°C
Humidity: 20 to 80% RH
After a 30-minute warm-up and after calibration
Effective measurement range 20 div (display range: 10 div)
Number of input channels 2
Input coupling AC, DC, and GND
Maximum sample rate 10 MS/s
Input format Non-isolated, unbalanced
Frequency characteristics
1
(−3 dB point when sine wave of
amplitude ±3 div is applied)
DC to 3 MHz
Voltage-axis sensitivity setting 5 mV/div to 20 V/div (1-2-5 steps) (when using 1:1 probe attenuation)
Maximum input voltage
(at a frequency of 1 kHz or less)
Combined with the 701940 (10:1):
2
600 V (DC+ACpeak)
Direct input (cable that does not comply with the safety standards):
3
200 V (DC+ACpeak) (as a value that meets the safety standard)
250 V (DC+ACpeak) ( maximum allowable voltage, as a value that does not damage the
instrument when applied)
Vertical (voltage) axis accuracy
DC accuracy
1
5 mV/div to 20 V/div: ±(0.5% of 10 div)
Input connector BNC connector (metallic type)
Input impedance 1 MΩ ± 1%, approx. 35 pF
−3 dB point when AC coupled
low frequency attenuation point
10 Hz or less (1 Hz or less when using the 701940)
Residual noise level
(Input section shorted)
±400 µV or ±0.06 div whichever is greater (typical value
4
)
A/D conversion resolution 12 bit (150 LSB/div)
Temperature coefficient Zero point: 5 mV/div to 20 V/div: ±(0.05% of 10 div)/°C (typical value
4
)
Gain: ±(0.02% of 10 div)/°C (typical value
4
)
Bandwidth limit Select from Full, 500 kHz, 50 kHz, 5 kHz, and 5400 Hz
Cut-off characteristics: −18 dB/OCT (typical value
4
)
Probe attenuation setting Voltage probe: 1:1, 10:1, 100:1, 1000:1
Current probe: 1 A:1 V, 10 A:1 V (for the 701932/701933), 100 A: 1 V (for the 701930/701931)
Compatible probes/cables Voltage probe (10:1 passive probe): Recommended
701940, 17 to 46 pF: For measuring 600 V (DC+ACpeak) or less
Current probe (power can be supplied from the DL850E/DL850EV. Option)
701930 (150 A), 701931 (500 A), 701932 (30 A), 701933 (30 A)
High voltage differential probe (connect the GND cable provided with the probe to the
DL850E/DL850EV case)
700924 (1000:1, 100:1/1400 V (DC+ACpeak)): For measuring 1400 V (DC+ACpeak) or less
Connection cable (for low voltage 1:1)
366926 (non-isolated type BNC-alligator clip ×2: For measuring low voltage less than or
equal to 42 V (DC+ACpeak))
1 Value measured under standard operating conditions.

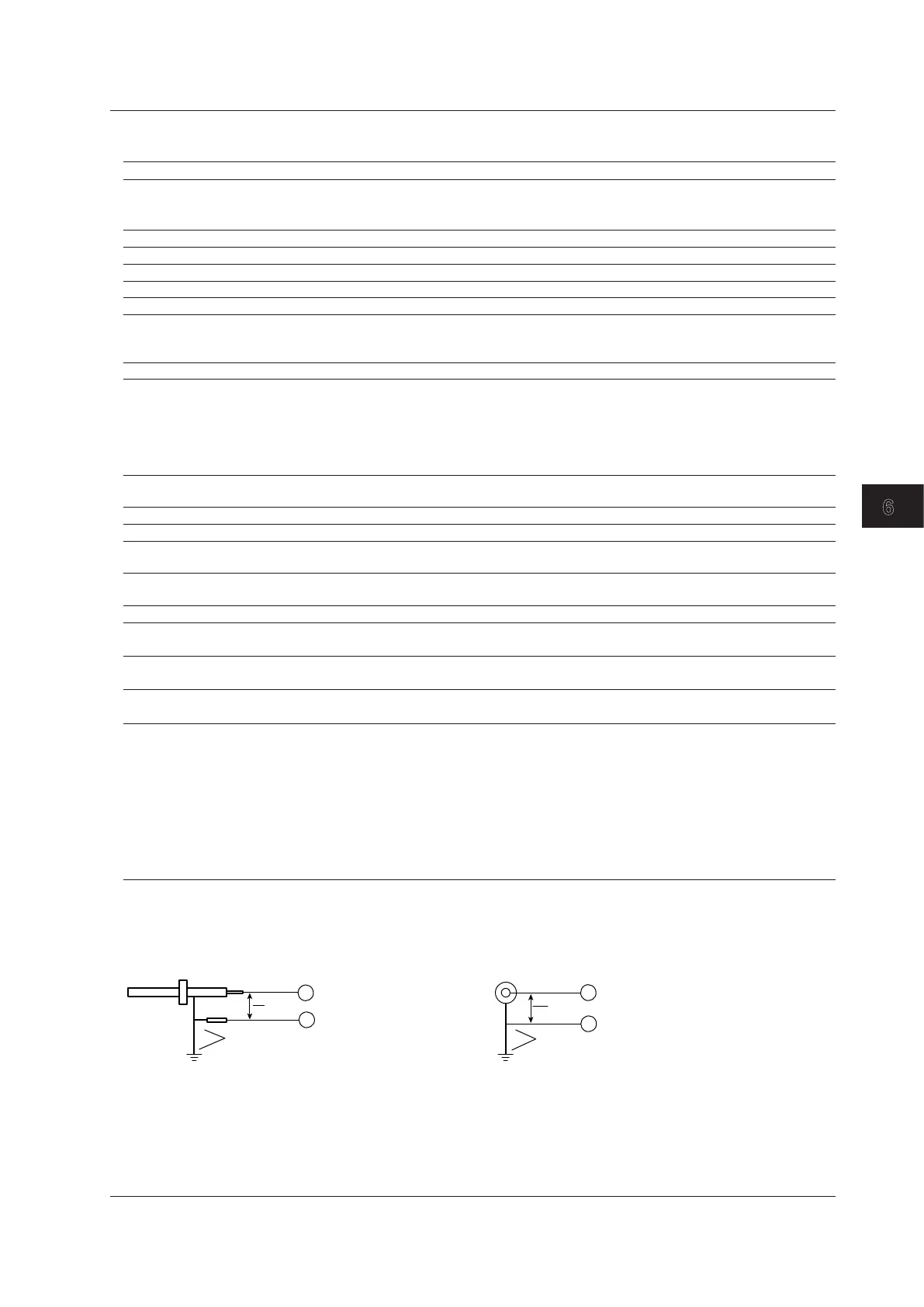

H
L
2
Recommended:
Combined with the 10:1 passive probe
(701940)
H
L
701255
Input
terminal
Earth
3
Direct input
(cable that does not comply with the safety standards)
GND is connected to the case potential.
GND is connected to the case potential.
GND
GND
4 The typical value is a representative or standard value. It is not strictly warranted.
