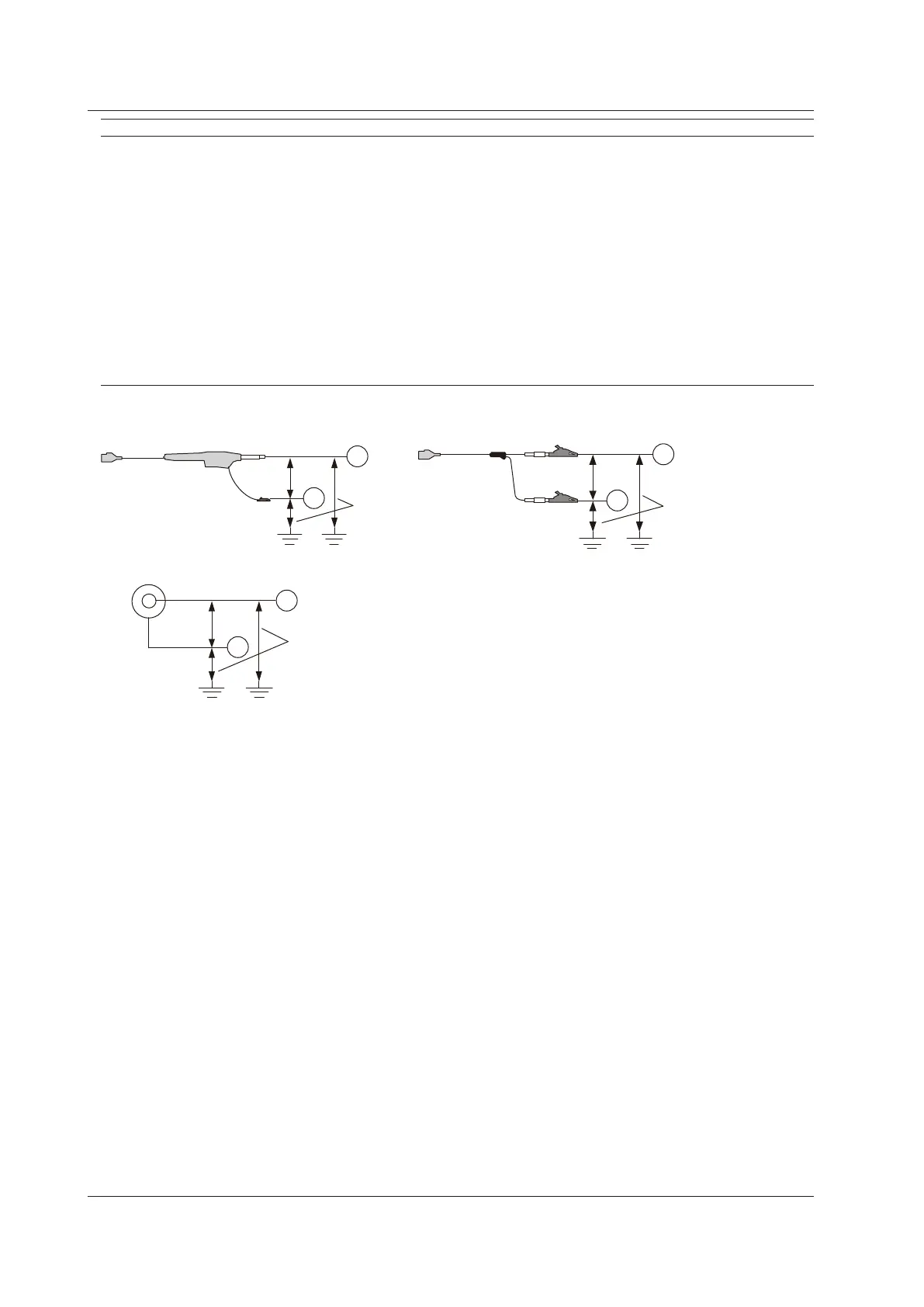

Item Specifications
Compatible probes/cables Voltage probe: Recommended
700929 (10:1 safety probe), 20 to 45 pF: For measuring 600 V (DC+ACpeak) or less
702902 (10:1 safety probe), 25 to 40 pF: For measuring 600 V (DC+ACpeak) or less
701947 (100:1 probe), 15 to 45 pF: For measuring 600 V (DC+ACpeak) or less
Current probe (power can be supplied from the DL850E/DL850EV. Option)
701930 (150 A), 701931 (500 A), 701932 (30 A), 701933 (30 A)
High voltage differential probe (connect the GND cable provided with the probe to the
DL850E/DL850EV case)
700924 (1000:1, 100:1/1400 V (DC+ACpeak)): For measuring 1400 V (DC+ACpeak) or less
Connection cable (for high voltage 1:1)
701901 (isolated type BNC-safety alligator clip adapter ×2: For measuring 200 V
(DC+ACpeak) or less), 701954 (alligator clip (dolphin type) red/black 2-piece set) is
required separately
Connection cable (for low voltage 1:1)
366926 (non-isolated type BNC-alligator clip ×2: For measuring low voltage less than or
equal to 42 V (DC+ACpeak))
1 Value measured under standard operating conditions.
Combined with the 700929, 702902, or 701947
2
3
Combined with the 701901+701954
Direct input (cable that does not comply with the safety standards)
6
7
Withstand voltage: 1500 Vrms for 1 minute
Allowable transient surge voltage: ±2100 Vpeak
(between earth and input)
4
5
H
L
700929
702902
701947
H
L
BNC
H
L
701901
701954
8 The typical value is a representative or standard value. It is not strictly warranted.
