Names and Functions of Parts
1
2
3
4
5
6
App
Index

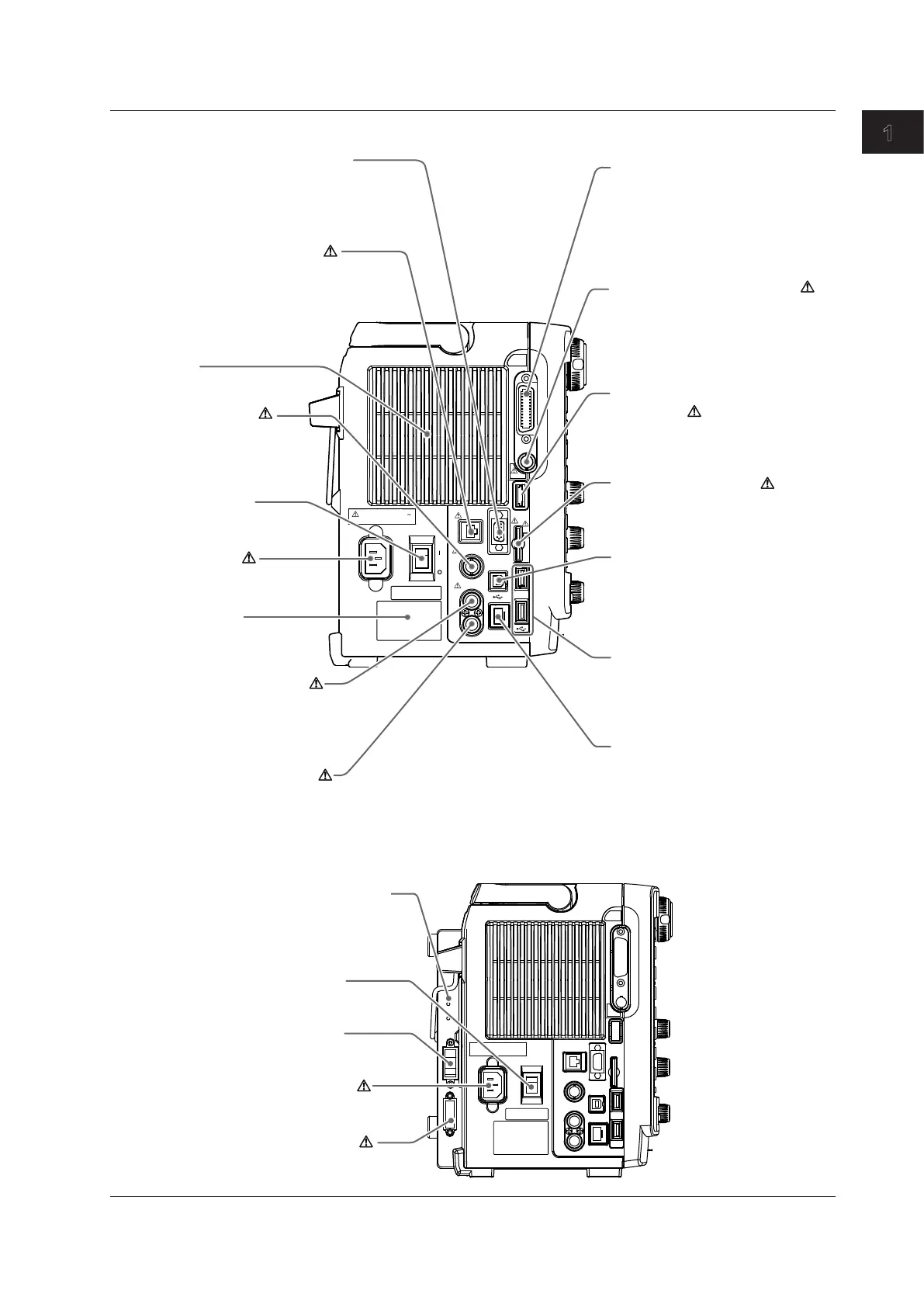

Left Side Panel
GP-IB
(
IEEE488
)
IRIG
EXT HDD
SD
VIDEO OUT
(
XGA
)
EXT CLKIN
EXT I/O
TRIGGER
IN
OUT
ETHERNET
1000BASE-T
POWER
ON
OFF
100-120/220-240 V AC
200 VA MAX 50/60 Hz
Vent
GP-IB connector (optional)
Use to communicate with the DL850E
/DL850EV through the GP-IB interface.
For information about the DL’s
communication features, see the
communications interface user’s
manual.
Video signal output terminal
You can output the displayed image in an
XGA RGB signal.
Explanation about how to use → Section 5.4
Power switch
Turning the power on and off
→ Section 3.4
Name plate
Power inlet
Power connection
→ Section 3.4
External HDD connector
(optional)
Use to connect an external hard disk.
Explanation about how to use
→ User’s manual
USB port for PCs
Use to connect the DL850E/DL850EV
to a PC that has a USB port.
Explanation about how to use
→ Communication interface user’s
manual
USB ports for peripherals
Use to connect a USB keyboard,
mouse, printer, or storage device.
Explanation about how to use
→ Section 4.3 and User’s manual
Trigger output terminal
Use to transmit trigger signals.
Explanation about how to use
→ Section 5.2
GO/NO-GO and external
start/stop I/O connector
External-clock
input terminal
Use when applying an
external clock signal.
Explanation about how to use
→ Section 5.3
Trigger input terminal
Use when applying an external
trigger signal.
Explanation about how to use
→ Section 5.1
Ethernet port
(1000BASE-T/100BASE-TX)
Use to connect the DL850E/DL850EV
to a LAN.
Explanation about how to use
→ Feature’s guide and communication
interface user’s manual
IRIG input terminal (option)
Use this terminal to apply external sync
signals.
Explanation about how to use
→ Section 5.6 (/C20)
SD memory card slot
Use to connect an SD memory card.
Explanation about how to use
→ User’s manual
Transmits GO/NO-GO determination
I/O signals. Can also be used to start
and stop the DL850E/DL850EV
through external control.
Explanation about how to use
→ Section 5.5
Power switch (AC)
Turning the power on and off
→ Section 3.4
Power supply status LED
Displays the status of the AC
power supply or DC power supply.
The status indicator
→ Section 3.4
Power switch (DC)
Turning the power on and off
→ Section 3.4
AC power connector
Power connection
→ Section 3.4
DC power connector
Power connection
→ Section 3.4
DC Power Supply Model (DL850EV)
Only the parts that are different from the standard model are shown below.
1.1 Top Panel, Front Panel, Right Side Panel, and Left Side Panel
