1-7
IM DL850E-03EN
Names and Functions of Parts
1

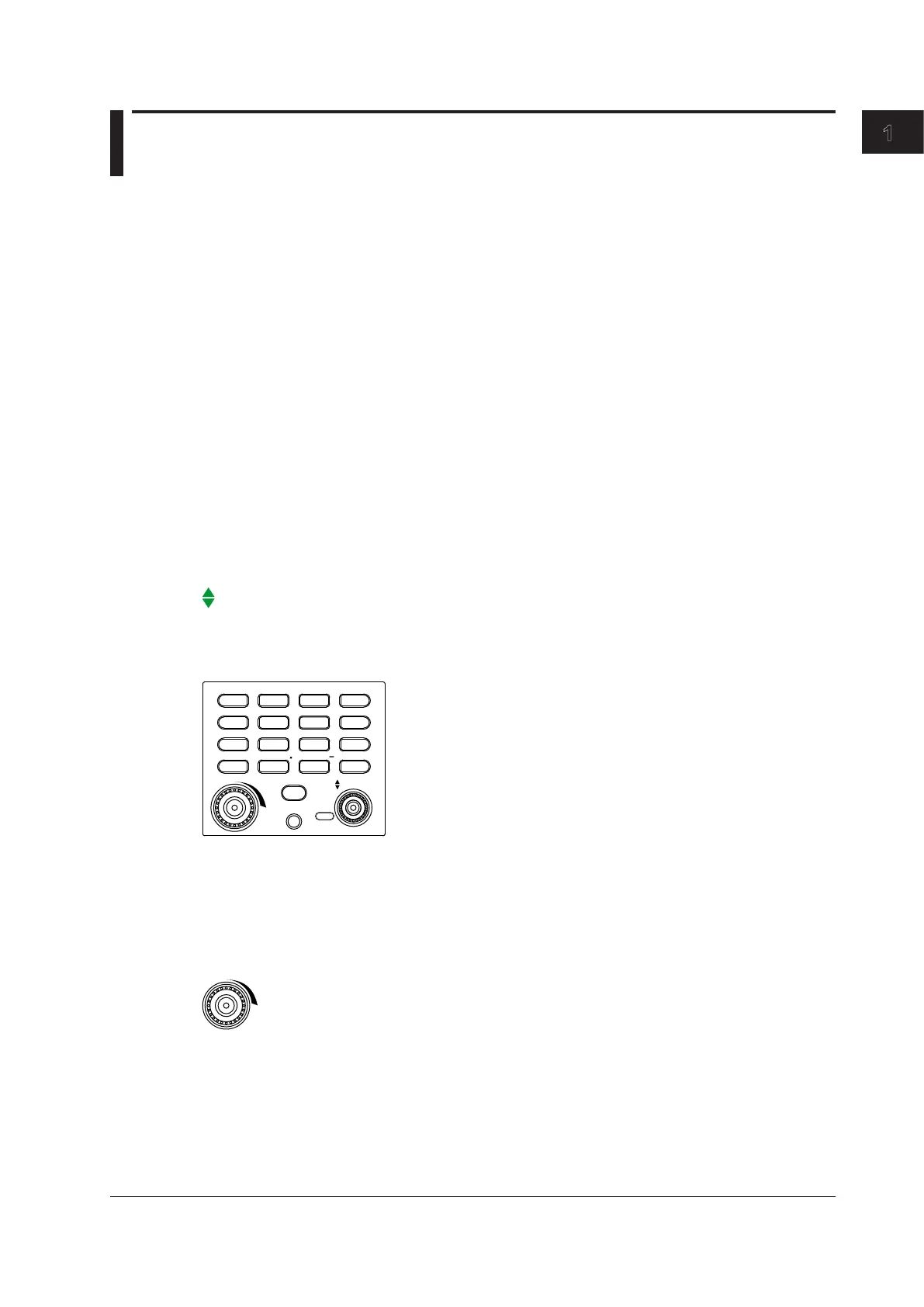

1.2 Panel Keys and Knobs
Vertical Axis
CH1 to CH16 Keys
These keys display menus for turning the display of each channel on and off and configuring settings
such as display label settings, input coupling settings, the probe attenuation or the current-to-voltage
conversion ratio, the bandwidth limit, the vertical position, vertical zoom settings, the offset value,
and linear scaling. Also, you can press a key to select the channel that the SCALE knob will control.
Channel keys illuminate when their corresponding channel is on.
After you press NUM LOCK (see below), you can press a channel key to enter the number displayed
to the upper right of the key in white.
ALL CH Key
Press this key to display a window in which you can configure all the settings from the menus that
appear when you press CH1 to CH16. The settings appear in a list.
NUM LOCK Key
Press this key to use the CH1 to CH16 keys to enter numbers.
SCALE Knob
Use this knob to set the vertical scale. Before you turn this knob, select the target waveform by
pressing a key from CH1 to CH16. If you change the scale while waveform acquisition is stopped, the
setting actually takes effect when you restart waveform acquisition.
POSITION Knob (Vertical POSITION Knob)
Use this knob to adjust the vertical display position (vertical position) of an input waveform. Before you
turn this knob, select the target waveform by pressing a key from CH1 to CH16. This knob has a push
switch. You can press the knob to reset the position to 0.00 div.
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
7
4
1
0
8
5
2
9
6
3
EXP
k
m
ENTER
SCALE
ALL CH
NUM LOCK
PUSH
O DIV
POSITION
Horizontal Axis
TIME/DIV knob
Use this knob to set the time-axis scale. If you change the scale while waveform acquisition is stopped,
the scale change actually takes effect when you restart waveform acquisition.
TIME / DIV
