YOKOGAWA DL850E User Manual

6-50
IM DL850E-03EN

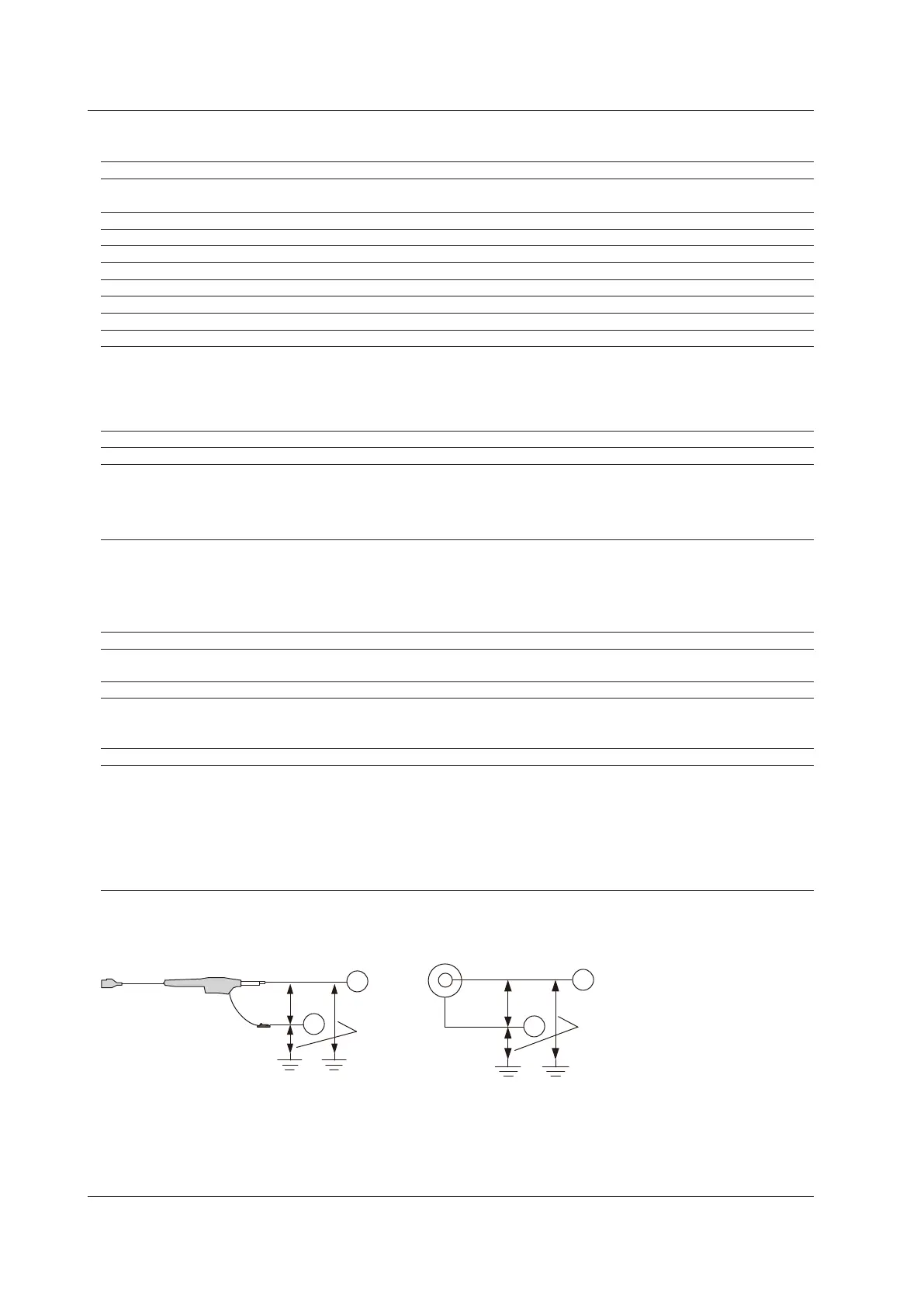

SENT Monitor Module (720243)
Item pecifications
Standard operating
condition
Ambient temperature: 23±5°
Ambient humidity: 20 to 80% RH
Number of input ports 2
Maximum data update rate 100 kS/s (10 µs)
Input format Isolated unbalanced
Input connector BNC connector (isolated type)
Input impedance 1 MΩ±1%, approx. 35 pF
Supported protocol SAE J2716
Supported clock tick span 1 µs to 100 µs Resolution: 0.01 µs
Supported number of nibbles 1 to 8
Number of analysis sub
channels
Fast channel 3 ch
Slow channel 5 ch
Status & communication 1 ch (4 bit)
Error trigger 1 ch (5 bit)
Error count 1 ch
Low level input voltage 1.5 V (typical value
1
)
High level input voltage 3.5 V (typical value
1
)
Maximum input voltage Combined with the 700929 (10:1) or 702902 (10:1):
2
420 V (DC+ACpeak)
Combined with the (701901 + 701954) (1:1) or direct input (cable that does not comply with the
safety standards):
4
42 V (DC+ACpeak)
Maximum allowable common
mode voltage
Working voltage of safety standard
Combined with the 700929(10:1) or 702902 (10:1):
3
300 Vrms (CAT II)
Combined with the (701901 + 701954) (1:1) or direct input (cable that does not comply with the
safety standards):
5
42 V (DC+ACpeak) (CAT II, 30 Vrms)
Withstand voltage 1500 Vrms for 1 minute (across each terminal and earth) (60 Hz)
Allowable transient surge
voltage (instantaneous)
±2100 Vpeak (across each input terminal and earth)
Insulation resistance 500 VDC, 10 MΩ or more (across each input terminal and earth)
Input status indication
function
Input status indication through the LEDs of each port function
When in operation: Illuminates in green when pulse input is detected
When overdriven: Illuminates in red when the input voltage exceeds 20 V
Probe attenuation setting 10:1, 1:1
Compatible probes/cables Voltage probe: Recommended
700929 (10:1 safety probe), 20 to 45 pF
702902 (10:1 safety probe), 25 to 40 pF
Connection cable (for high voltage 1:1)
701901 (isolated type BNC-safety alligator clip adapter ×2), 701954 (alligator clip (dolphin type)
red/black 2-piece set) is required separately
Connection cable (for low voltage 1:1)
366926 (non-isolated type BNC-alligator clip ×2)
1 Typical value represents a typical or average value. It is not strictly warranted.
Withstand voltage: 1500 Vrms for 1 minute
Allowable transient surge voltage (between earth and input): ±2100 Vpeak
Combined with the 700929 or 702902
2
700929
702902
4
5
3
Combined with the (701901 + 701954) or
direct input (cable that does not comply with the safety standards)
BNC
H
L
H
L
6.13 Module Specifications
