YOKOGAWA DL850E User Manual

1-11
IM DL850E-03EN
Names and Functions of Parts
1
2
3
4
5
6
App
Index

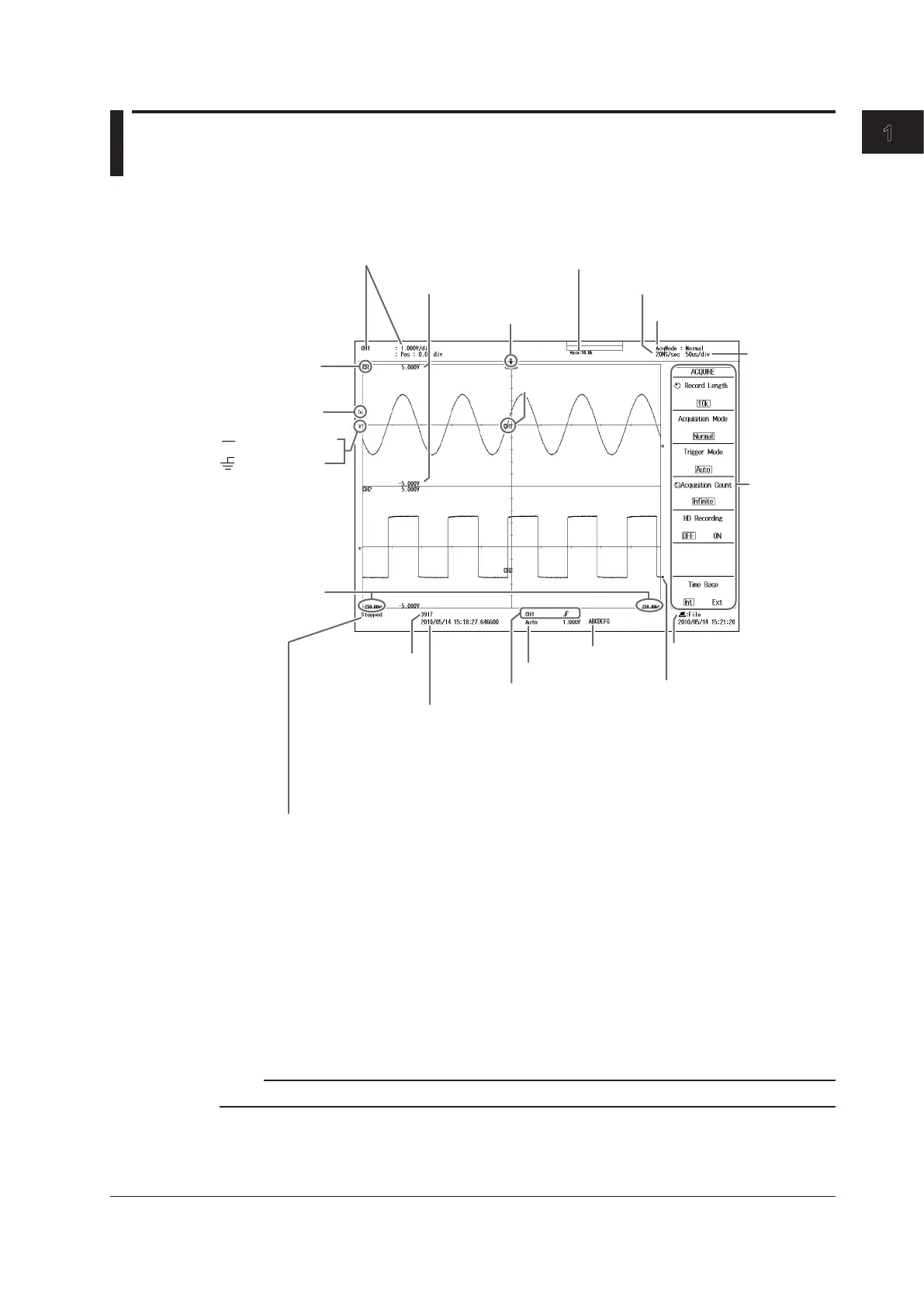

1.3 Screens
Normal Waveform Display
Waveform acquisition condition
Waveform acquisition
count
Comment
Trigger mode
The setup channel
and its vertical scale
and position
Stopped
Running
Waiting for trigger
Pre...: Acquiring pre data
Post...: Acquiring post data
HD out: Continuous writing to hard disk
Display record length
Acquisition mode
Sample rate
TIME/DIV
Trigger position
Trigger level
Ground level
Channel number of
the display range
Voltage-axis scale value
Vertical position
Time from the
trigger position
Trigger setting
Setup menu
Level indicator
Channel number of the
displayed waveform
(See the explanation below.)
Screen capture output
destination
The display is
inverted when
Invert is set to ON.
Time of the waveform time reference
When Trigger Mode is set to OnStart, the reference is
the measurement start time.
When Trigger Mode is set to Auto and the roll display
is in use, the reference is the measurement stop time.
In other situations, the reference is the trigger time.
Acquisition Mode Indication
Normal: Normal mode
Env: Envelope mode
Avg: Average mode
BoxAvg: Box average mode
Note
The DL850E/DL850EV LCD may include a few defective pixels. For details, see section 6.4, “Display.”
