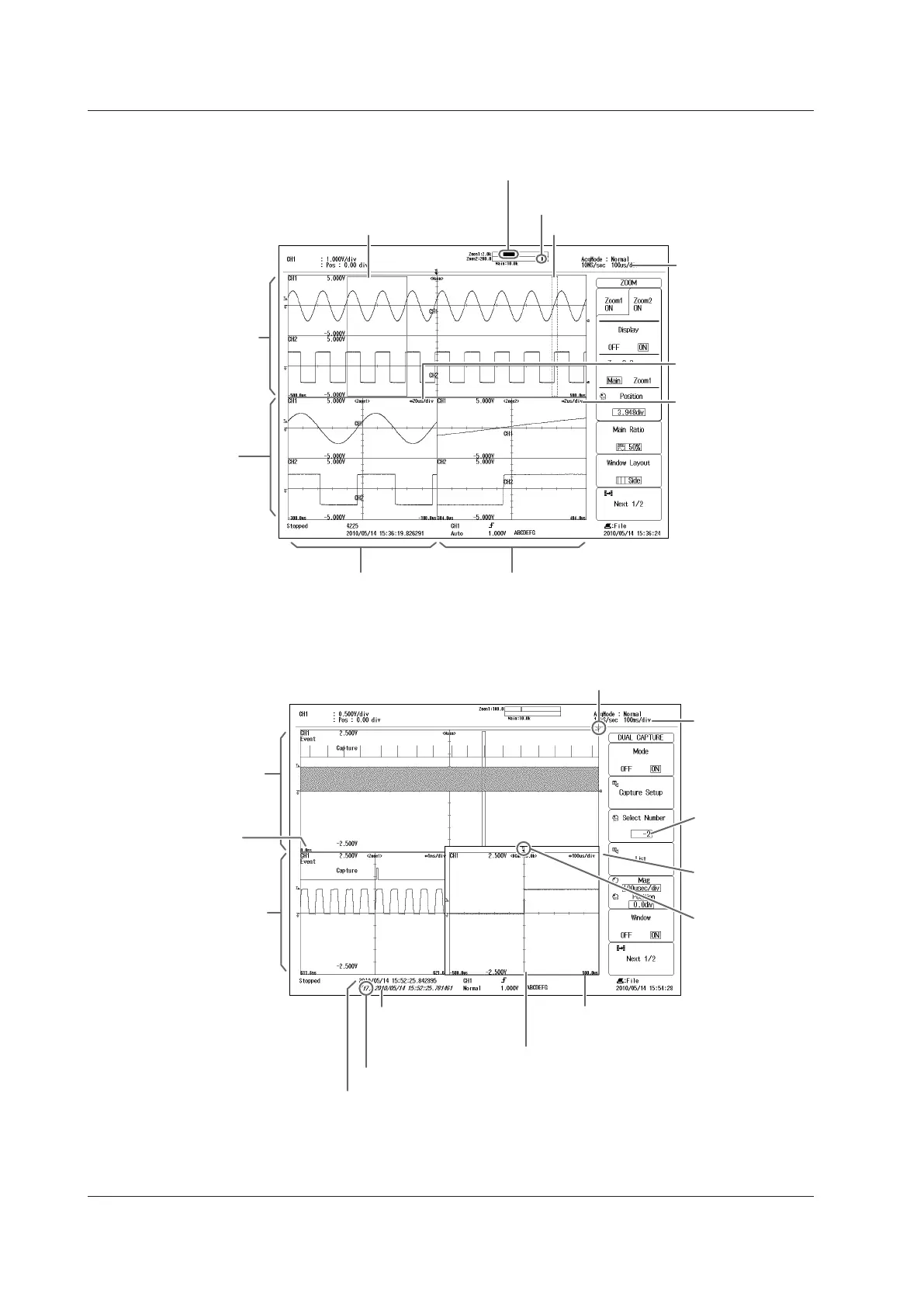

Zoom Waveform Display
Time/div for the
normal waveforms
Display position of the Zoom2 zoom waveform
with respect to the display record length
Zoom1 zoom range
Display position of the Zoom1 zoom waveform
with respect to the display record length
Time/div for the
Zoom2 waveforms
Normal waveform
display area
(Main window)
Zoom window
display area
Time/div for the
Zoom1 waveforms
Zoom1 window
display area
Zoom2 window
display area
Zoom2 zoom range
Dual Capture Display
Time/div for the
normal waveform
Time/div for the
captured waveform
Trigger position
of the captured
waveform
Normal waveform
display area
(Main window)
Time from the
reference point
Waveform display
area for the zoom
and capture
windows
Captured waveform display area
Stop date and time of the main waveform
Number of captured waveform acquisitions
Time-axis scale value of the
captured waveform
Date and time of the
trigger point of the
captured waveform
Number of the
captured waveform
to display
Time reference mark
