2-8
IM DL850E-03EN
Hard Disk Recording
When measurement starts, you can record data to an external hard disk that supports eSATA (external
Serial ATA; /HD0 option
*
) or to an internal hard disk (/HD1 option). The recorded data is saved to files
automatically.
* Models with the /HD0 option are equipped with eSATA connectors. You need to purchase a hard disk that
supports eSATA separately. Note that hard disks that can be used are those whose disk partition style is
MBR and the format is FAT32.

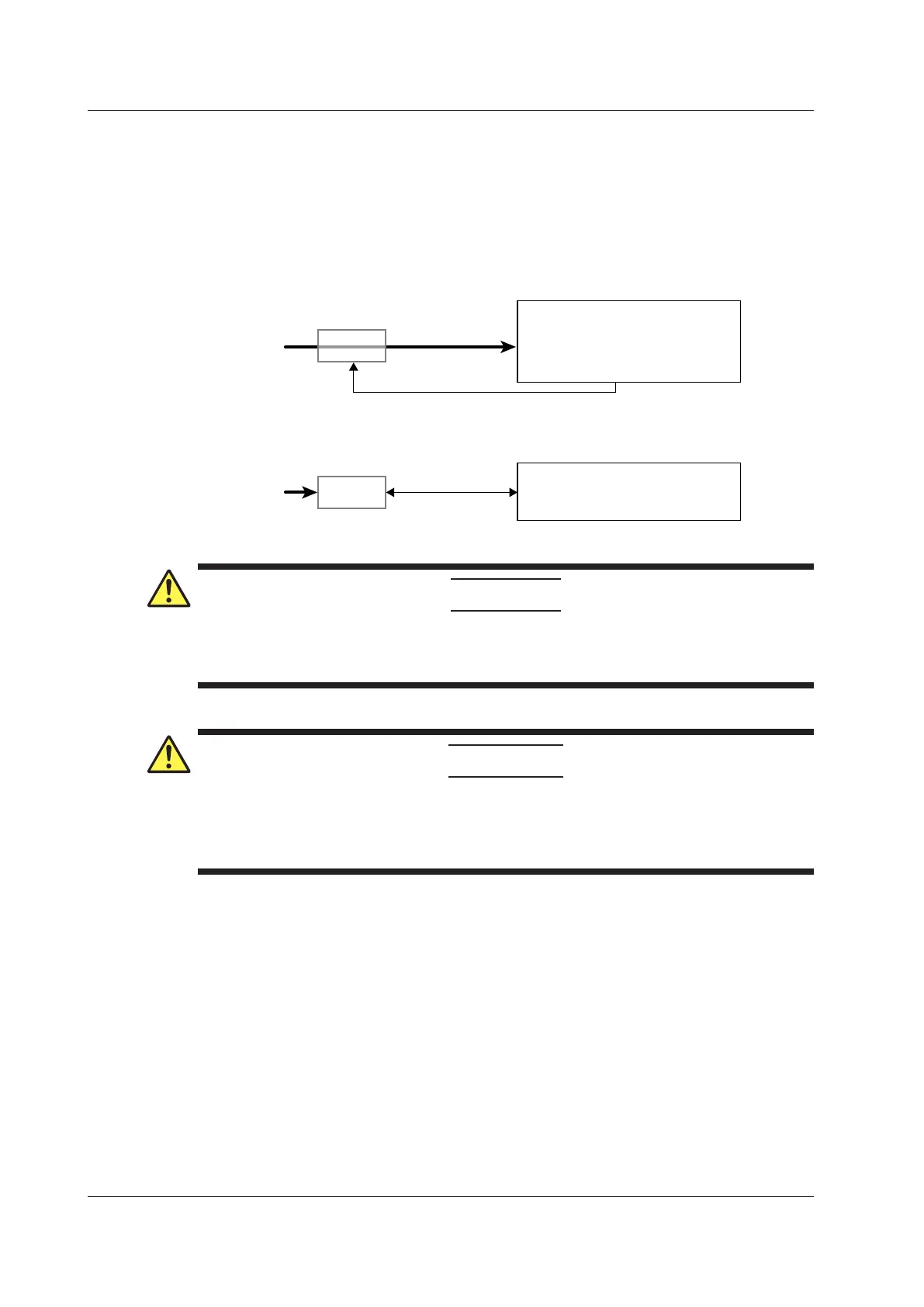

Input signal
Normal measurement
Hard disk recording
Loading of waveform data
*
Acquisition
memory
Saving and loading
External hard disk that
supports eSATA (/HD0 option)
or an internal hard disk
(/HD1 option)
Input signal
Acquisition
memory
External eSATA hard disk
Storage media including
the internal hard disk
*: Loaded waveform data cannot be saved.
CAUTION
Do not store more than 512 files in the root directory of the internal hard disk. Doing so will
slow the file access operations to all files. In addition, we cannot guarantee the operation of
the hard disk recording feature when the DL850E/DL850EV is in this state.
French
ATTENTION
Ne pas stocker plus de 512 fichiers dans le répertoire racine du disque dur interne. Ceci
ralentit les opérations d’accès à tous les fichiers. En outre, nous ne pouvons pas garantir le
fonctionnement de la fonction d’enregistrement sur disque dur lorsque le DL850E/DL850EV
est dans cet état.
2.3 Waveform Acquisition
