3.1.4 Rear panel of FG420
Exhaust vent
 p. 6
Power supply input
 p. 8
USB connector
GPIB connector
Multi-I/O connector
Used for sweep, sequence control,
sync code output
 p. 19
Frequency reference output terminal
 p. 18
External 10 MHz frequency reference input
terminal
 p. 17
CH1 external trigger input terminal
 p. 17
CH2 external trigger input terminal
 p. 17
CH2 external modulation/addition input
terminal
 p. 16
CH1 external modulation/addition input
terminal
 p. 16

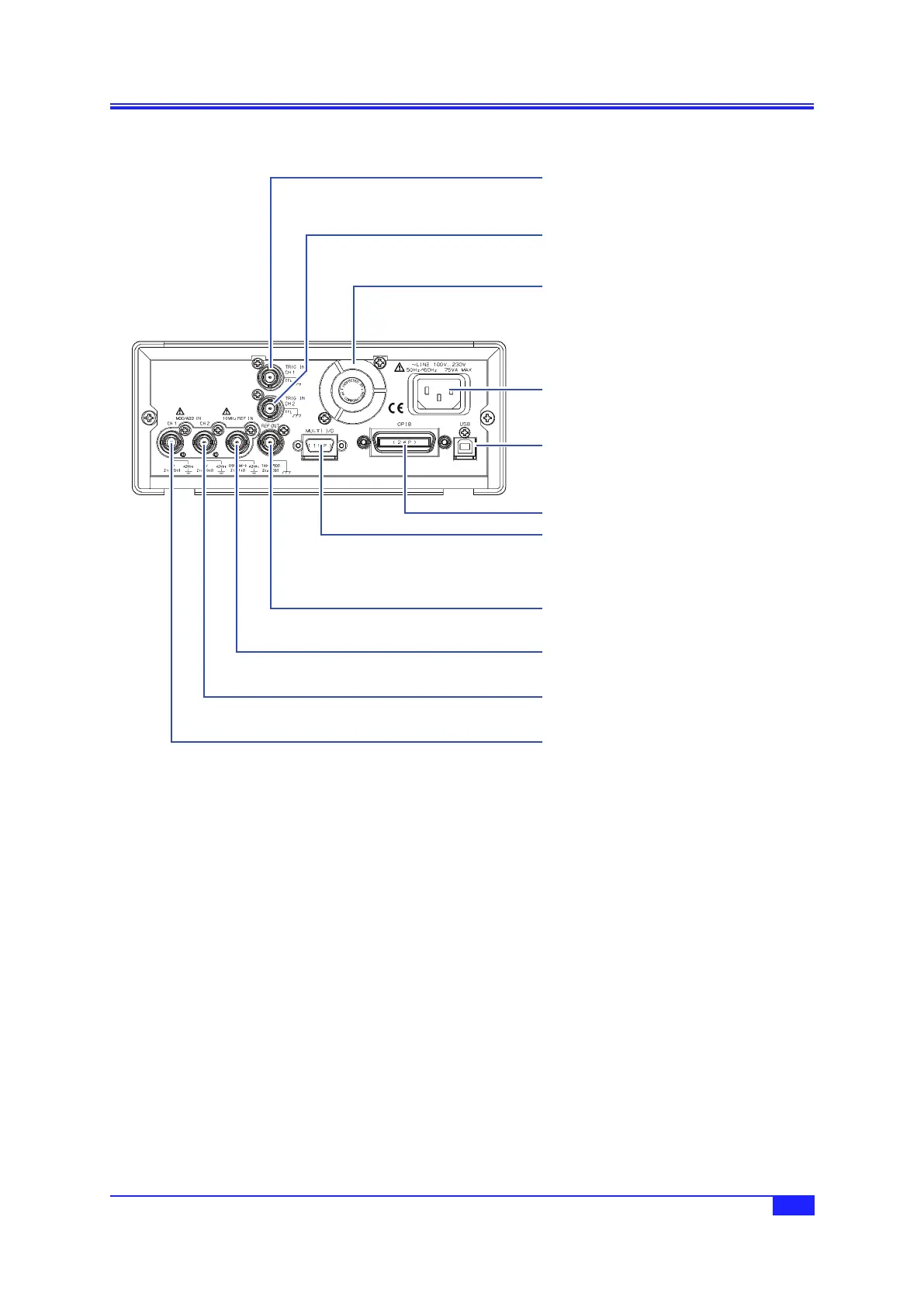

Figure 3-4. Rear Panel of FG420
