4.2 ScreenConfigurationandOperation
4.2.1 Screenconfiguration

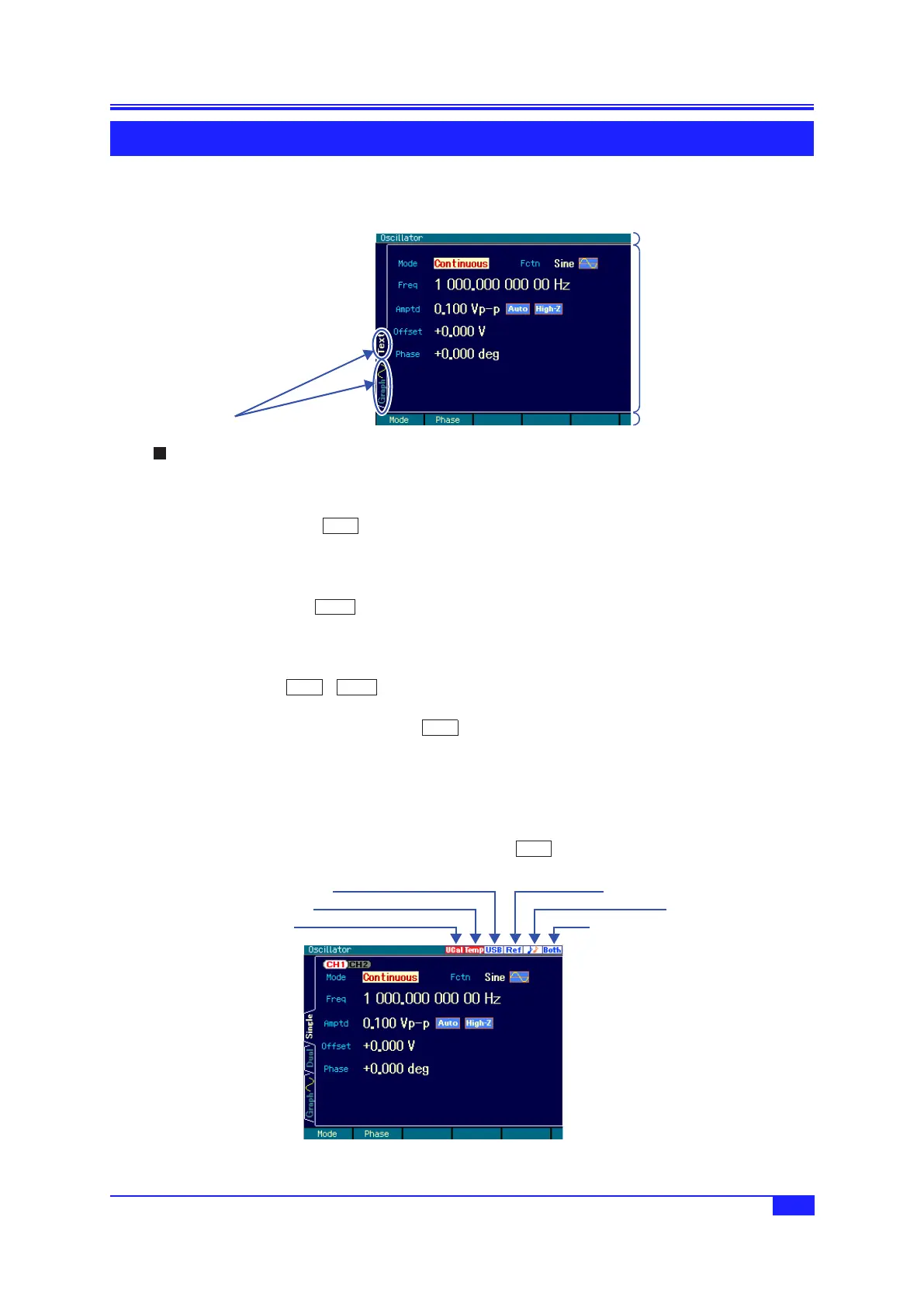

The screen consists of three areas, as shown in the following figure.
Display format switching tabs
Status display area
Setting area
Soft key display area
Statusdisplayarea
Displays the status of the equipment.
The following items are displayed.
• Uncalibrated status
UCal
Displayed when the calibration information of the equipment is lost due to a problem, and the
prescribed performance cannot be maintained. Since this is a malfunction, notify YOKOGAWA or
the dealer.
• Overheating status
Temp
Displayed when the internal temperature of the equipment becomes abnormally high. When
this status is displayed during use at an ambient temperature of 40°C or lower, this indicates a
malfunction, so notify YOKOGAWA or the dealer.
• Remote status
USB
,
GPIB
Displayed when the equipment is controlled via the USB or GPIB interface.
• External frequency reference status
Ref
Displays whether a valid signal is input or not, when the external frequency reference is enabled.
• Sequence status/channel mode (FG420 only)
The status when the sequence oscillation mode is selected is displayed.
In the FG420, the mode when the channel mode is other than independent (2-phase, constant
frequency difference, constant frequency ratio, and differential output).
• 2-channel same value (Both) setting (FG420 only)
Both
Displayed when the same setting is done for CH1 and CH2.
External frequency reference status
Remote status
Overheating status
Uncalibrated status
2-channel
same value
setting
(FG420 only)
Sequence status/
channel mode
(FG420 only)
