31
IM FG410-01EN

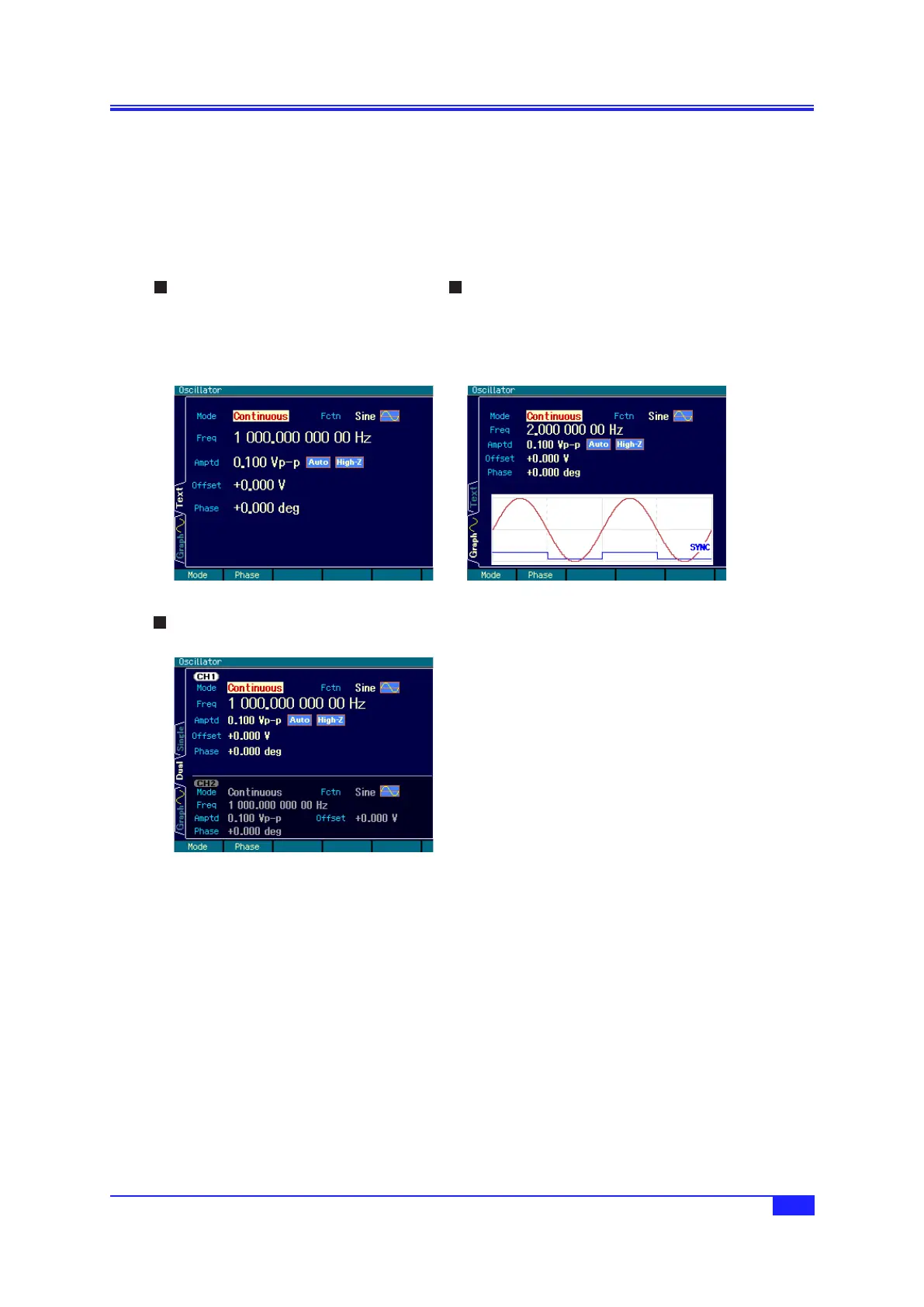

4.2.2 Switchingdisplayformatwithtabs(displayingwaveformgraph)
When a number of display formats can be selected, a display format switching tab is displayed on the
left side of the screen. When the Graph tab is displayed on the screen, settings can be performed while
checking the image of the output waveform.
a) Display format types
There are three types of display formats, as follows.
The channel to be set can be switched with
the CH1/CH2 key.
Text display [Text] (FG410) or
[Single](FG420)
Displays the settings of 1 channel in
text form.
Graph display [Graph]
Displays the settings of one channel
in both text and graph form,
allowing the image of the output
waveform to be checked.
2-channel simultaneous display [Dual] (FG420 only)
Displays the settings of channel 1 and channel 2 in text form vertically superposed.
4.2 Screen Configuration and Operation
