YOKOGAWA FG420 User Manual

74
IM FG410-01EN

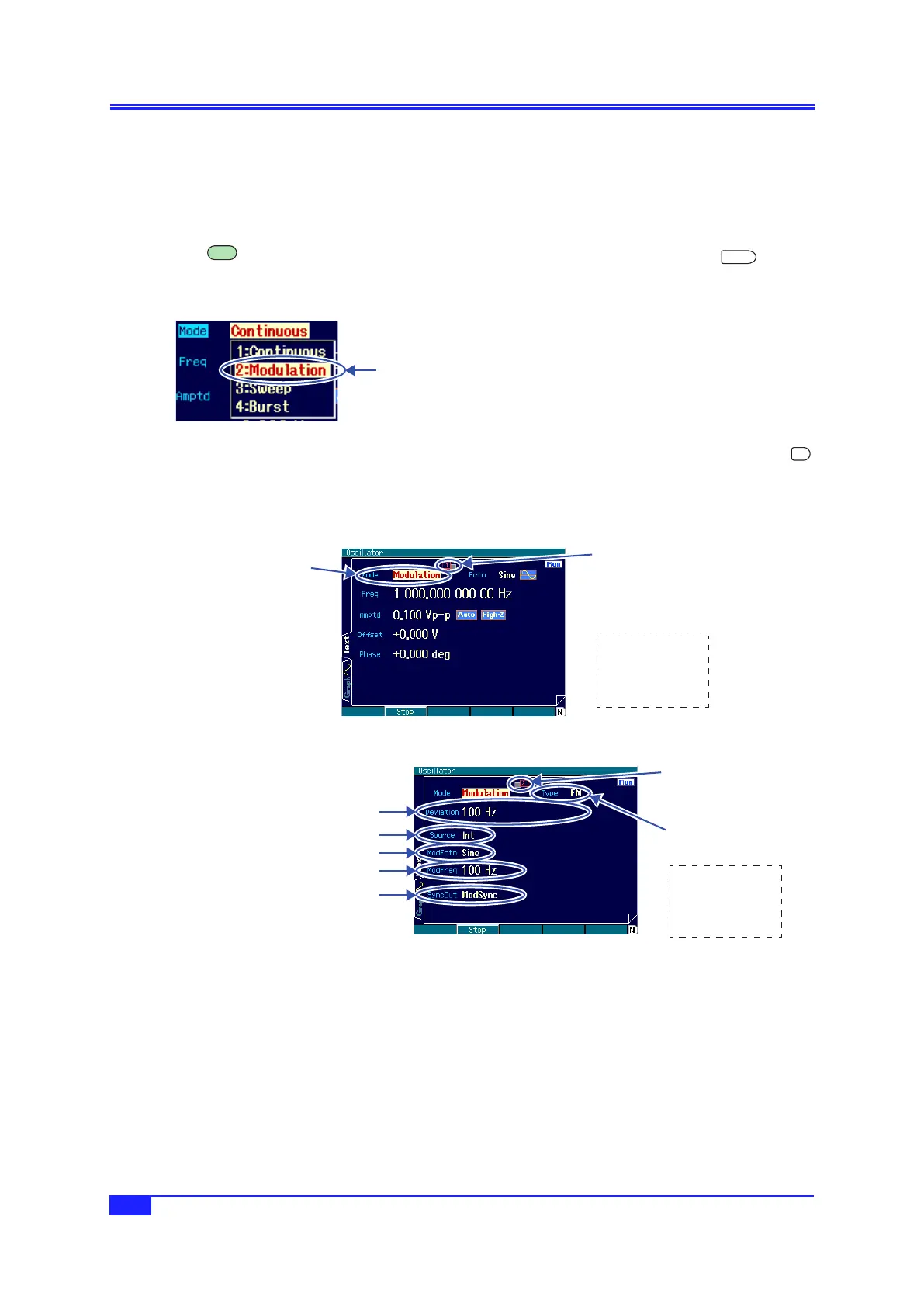

4. BASIC OPERATION
4.7.2 Screenformodulationsettingandmanipulation
This subsection describes the screen configuration used in common for the modulated oscillation
mode.
The settings and manipulations are done on the Oscillator setting screen. The Oscillator setting screen
is displayed as “Oscillator” in the top left part of the screen. When another screen is displayed, press
the
MENU
MENU key to display the top menu, then select [Oscillator] and press the
ENTER
ENTER
key.
a) Settingtheoscillationmodetomodulations
1.
Set [Mode] (oscillation mode) to
[Modula-tion] on the Oscillator setting
screen. The oscillation mode is
switched to modulation as a result.
In the modulated oscillation mode, the
setting screen consists of two pages,
which can be toggled with the
NEXT
NEXT key.
b) 1stpageofsettingscreen:Screenforsettingthecarriersignal
This is the modulation carrier signal setting screen, which is common to all the oscillation modes.
Set the oscillation
mode to
[Modulation].
Indicates that the 1st
page is displayed.
Press the NEXT
key to display the
2nd page.
c) 2ndpageofsettingscreen:Screenforsettingthemodulation
The figure shows an example of selecting FM as the modulation type.
Indicates that the 2nd
page is displayed.
Press the NEXT
key to display the
1st page..
Modulation type
Modulation width
Modulation source
Internal modulation waveform
Internal modulation frequency
Sync output
Modulation type [Type]
This is the type of modulation. FM, FSK, PM, PSK, AM, AM (DSB-SC), DC offset modulation,
and PWM can be chosen from.

p.76
Modulation width [Deviation, Depth, HopFreq]
This is the modulation width. The name of this item differs according to the modulation type.

p.76
Select [Modulation] in
[Mode] and then press
the ENTER key.
