YOKOGAWA FG420 User Manual

43
IM FG410-01EN

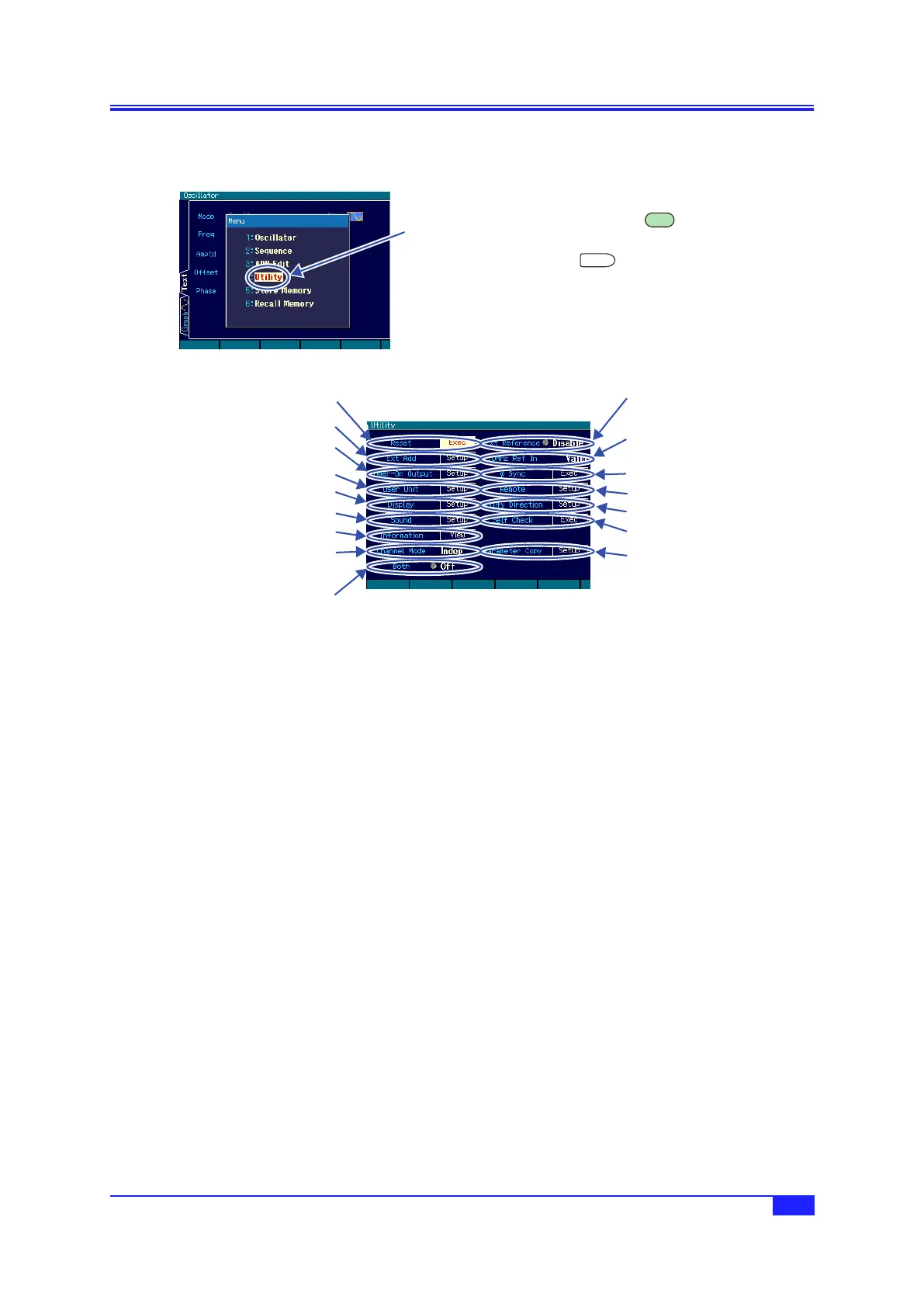

4.3.7 Actions possible in the Utility screen
a) Displaying the Utility screen
The top menu window is displayed by
pressing the
MENU
MENU key. In this
window, select [Utility] and then press
the
ENTER
ENTER key to display the
Utility screen.
b) Utility screen configuration
Setting initialization
External addition setting
Power-on output setting
User-defined unit setting
Display setting
Operation sound setting
Internal information display
Channel mode setting
(FG420 only)
Modify direction setting
External 10 MHz frequency
reference enable/disable
External 10 MHz frequency
reference input status display
Phase synchronization
Remote setting
Self check
External 10 MHz frequency
reference input status display
Inter-channel parameter copy
(FG420 only)
2-channel same value
setting On/Off
(FG420 only)
Setting initialization [Reset]
Initializes the settings. The initial settings are continuous oscillation, sine wave, 1 kHz, 0.1 Vp-p/
open, and output off.

p.45
External 10 MHz frequency reference enable/disable [Ext Reference]
Enables/disables the external 10 MHz frequency reference.

“5. USING EXTERNAL
FREQUENCY REFERENCE” in the Application Instruction Manual
External addition setting [Ext Add]
Sets external addition gain. The setting can be selected from off, ×2, and ×10.

p.61
External 10 MHz frequency reference input status display [10MHz Ref In]
Displays whether a valid signal for external 10 MHz frequency reference input is available.

“5.
USING EXTERNAL FREQUENCY REFERENCE” in the Application Instruction Manual
Power-on output setting [Power-On Output]
Sets the output on/off setting at power-on.

p.45
Phase synchronization[
f
Sync]
Performs inter-unit synchronization during multiple unit synchronization connection and inter-
channel synchronization of the FG420.

“3.3 Phase Synchronization Between Channels” and “4. SYNCHRONIZING MULTIPLE
UNITS” in the Application Instruction Manual.
User-defined unit setting [User Unit]
Sets user-defined units.

“7. USING USER-DEFINED UNITS” in the Application Instruction
Manual.
Select [Utility] in
the top menu and
press the ENTER
key
4.3 Basic Settings and Operations
