37
IM FG410-01EN
4.3.2 Changingthewaveformandoscillationmode

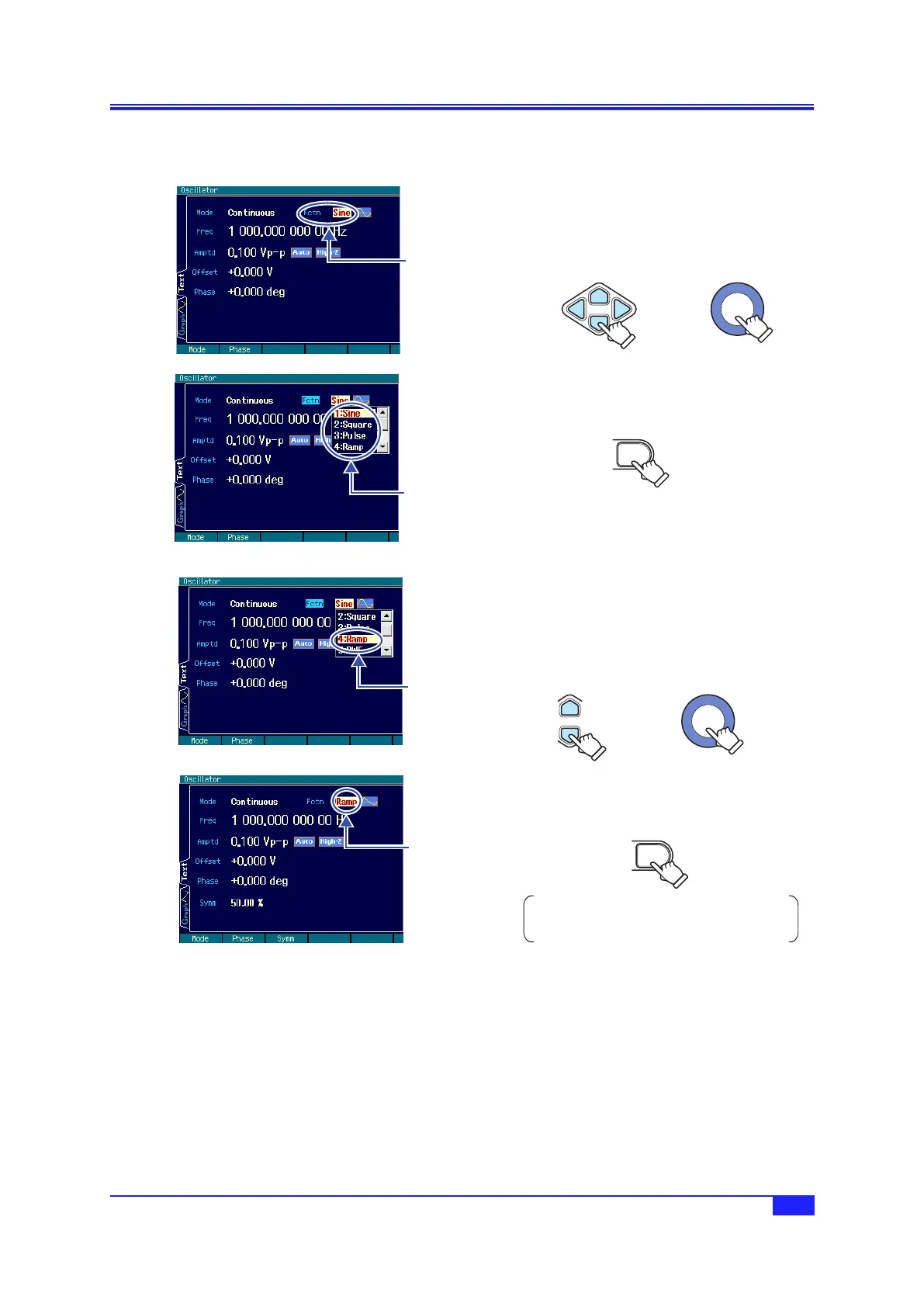

1.
Select the desired item with the
arrow keys or the modify knob.
In the example on the left, the [Fctn]
(waveform) field is selected.
Item selection
or
2/
Press the ENTER key to open the list
of choices.
ENTER
3/
Scroll the choice list with the up/
down arrow keys or the modify knob.
In this state, the desired item can also
be selected by inputting a number
from the numeric keypad.
Item selection
or
4.
Press the ENTER key to set the
selected item and reflect it to the
output. The list of choices closes.
ENTER
If the CANCEL key is pressed instead of the
ENTER key, the setting remains unchanged
and the status of step 1 is returned to.
The waveform is
selected.
The current
waveform is
displayed.
The choice list
opens.
“Ramp” is
selected.
The setting is
changed and
the choice list
closes.
4.3 Basic Settings and Operations
