47
IM FG410-01EN
4.4 SettingMethodsforMainItems
This section describes the setting methods for the main items, mainly done on the Oscillator setting
screen. “Oscillator” is displayed at the top left of the Oscillator setting screen. When another screen is
displayed, pressing the
MENU
MENU key displays the top menu, so select [Oscillator] and then press
the
ENTER
ENTER key.
The following explanation uses the text display screen (1 channel display) in the continuous
oscillation mode. The setting screen consists of one page only.

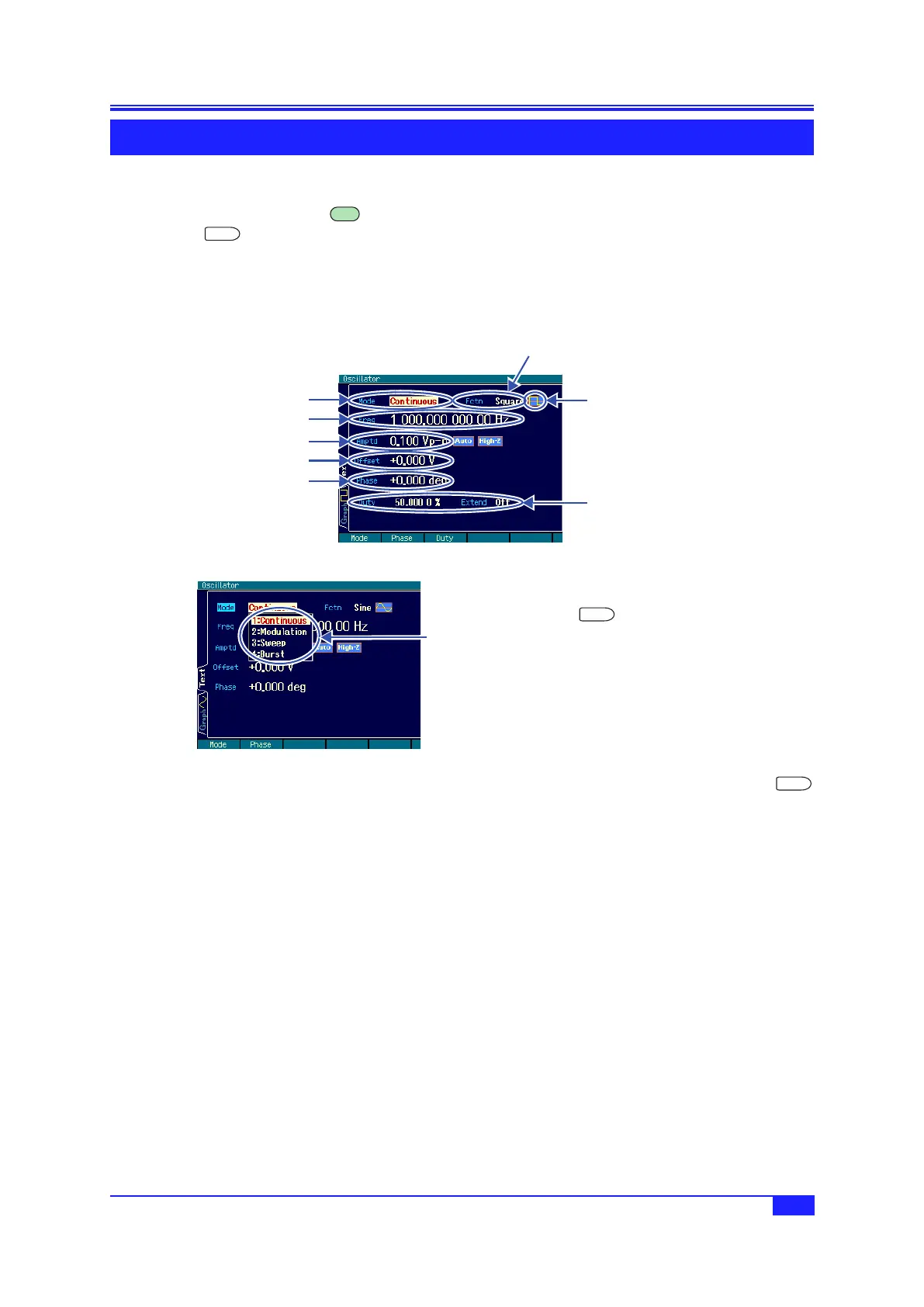

4.4.1 Configurationoftextdisplayscreenincontinuousoscillationmode
This screen is where the basic settings for the output waveform are done.
Oscillation mode
Frequency
Amplitude
DC offset
Phase
Waveform
Waveform-specific parameters
Polarity and amplitude
range of waveform
(depending on the
waveform, additional
selection buttons may be
displayed)
4.4.2 Settingtheoscillationmode
1.
Select the [Mode] field and then press
the
ENTER
ENTER key to display the
oscillation mode choice list.
Even if there are several setting
screens, the [Mode] field is displayed
at the top left of each page.
2.
Select the desired oscillation mode from the choice list and then press the
ENTER
ENTER key to apply the setting and reflect it to the output.
The desired oscillation mode can also be set and reflected to the output by inputting
the number of the desired oscillation mode displayed in the choice list from the
numeric keypad.
The oscillation mode can also be set by inputting a number from the numeric keypad
while the [Mode] field is selected (without the choice list displayed).
Oscillation
mode choice
list
