Configuring the GX/GP and Viewing the Settings
1
2
3
4
5
App
Index

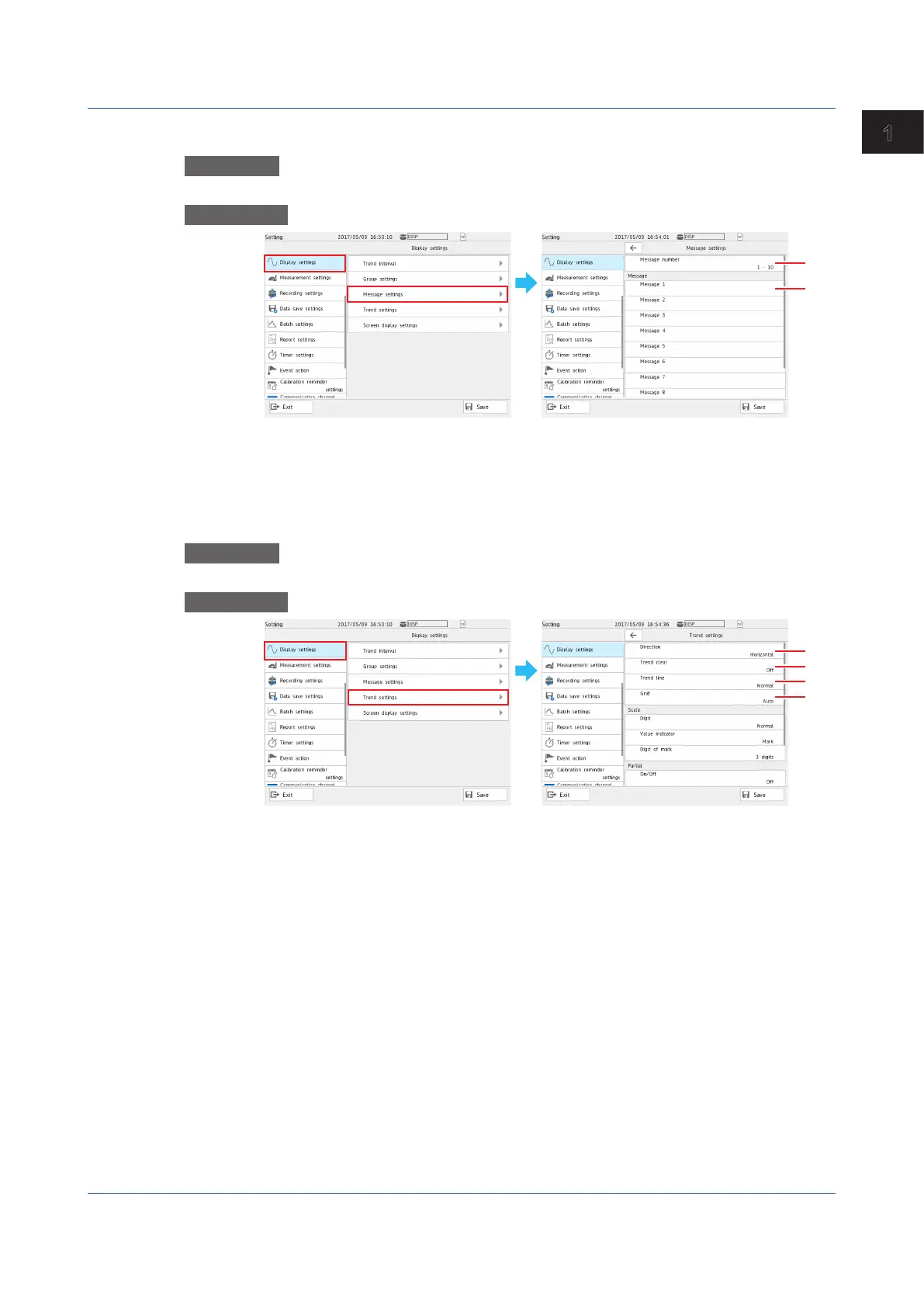

MessageSettings(registeringmessages)
Procedure
On the setting menu, tap Display settings and then Trend settings.
Description
1
2
1 Set the message number range (in unit of 10 messages) to set (register) messages.
2 Assign a message to each message number.
Trend settings
Procedure
On the setting menu, tap Display settings and then Trend settings.
Description
1
2
3
4
1 Set the direction to display waveforms (direction in which the waveforms flow).
2 Set this to On to display new waveforms after clearing the previous waveforms when
recording is started.
3 Set the line width of displayed waveforms to Thick, Normal, or Thin.
4 Set the number of grids (4 to 12).
