Turning Retransmission Output On or Off at Once
1 Press MENU, and tap the Universal tab and then All re-trans ON/OFF.

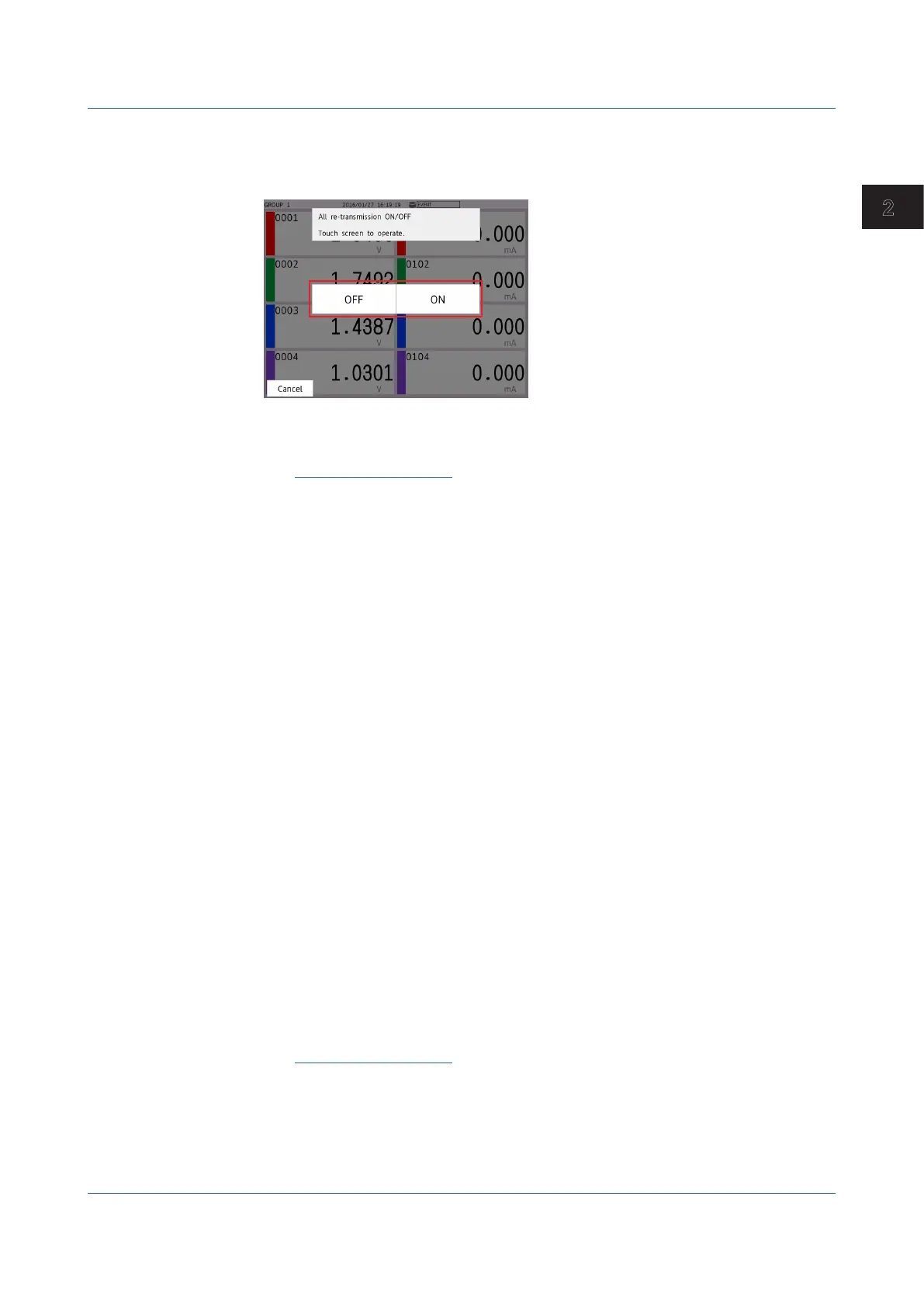

The All re-transmission ON/OFF screen appears.
2 Tap ON or OFF.
The tapped value (ON or OFF) takes effect on all AO channels whose range is set to Re-Trans.
Operation complete
Starting the Waveform Display of the Trend Display and Stopping the
Waveform Updating
When recording starts, the waveform display on the trend display starts. When recording
stops, waveform updating stops.
ShowingtheTrendDisplayintheGroupDisplayandShowingAllChannels
In the group display, the waveforms of the channels that are registered to the group are
displayed.
In all channel display, the waveforms of all channels that are configured to record data are
displayed on the current group display. The waveforms of channels that are not assigned to
the group are displayed in the waveform display area, but the scales, current value marks,
and digital values of the channels are not displayed.
All channel display is not possible when the trend interval is less than 30 s/div.
If the measurement mode is set to dual interval, only the recording channels assigned to the
displayed measurement group are displayed. (Channels of the other measurement group
are not displayed.)
If you want to display different measurement groups on a single screen, use the multi panel
screen or custom display.
Number of displayable channels
GX20/GP20: 100 channels
GX10/GP10: 30 channels
1 Press MENU.
The menu screen appears.
2 Tap the Context tab and then Display Group/All Channel.
The display switches.
Each time you tap Display Group/All Channel, the setting toggles between group and
all channel.
3 Tap the Close icon to close the menu screen.
Operation complete
