2-16
IM 04L51B01-01EN

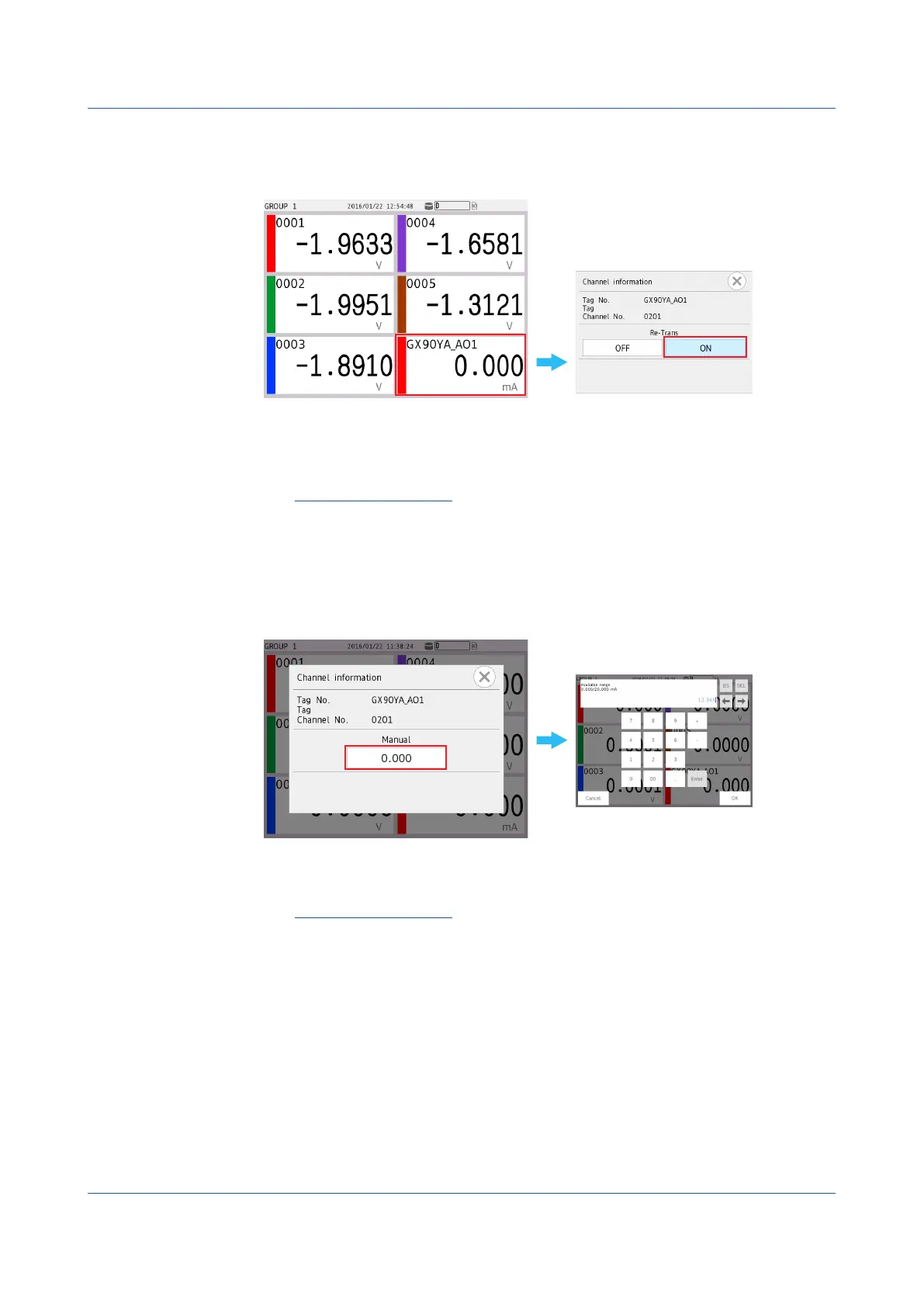

Turning Retransmission Output On or Off
1
Tap an AO channel.
The channel information screen appears.
The highlighted one is the current state.
2
Tap ON or OFF.
The tapped value (ON or OFF) takes effect.
Operation complete
Performing Manual Output
1
Tap an AO channel.
The channel information screen appears.
2
Tap the displayed output value.
A keyboard appears.
3
Set the output value, and tap OK.
The speciîš¿ed value is output.
Operation complete
Collective AO Channel Operation from the Monitor
You can turn on and off the AO channels assigned- to retransmission output at once.
Users whose Output operation under User property in the security settings is set to LOCK
cannot operate AO channels.
If Output operation under User property in the security settings is set to LOCK, AO channel
operation is not possible while the operation is locked.
2.2 Configuration of Measured Data Display
