If you change from the monitor, the display span value of only the selected channel will be
changed.
DO Channel Operation from the Monitor
This procedure is for when, in the DO channel range settings, type is set to Manual.
In the Display settings, under Screen display settings, Changing each value from monitoring
must be set to On. For the setting procedure, see page 1-117 in section 1.10.5, “Setting
Basic Screen Items”.

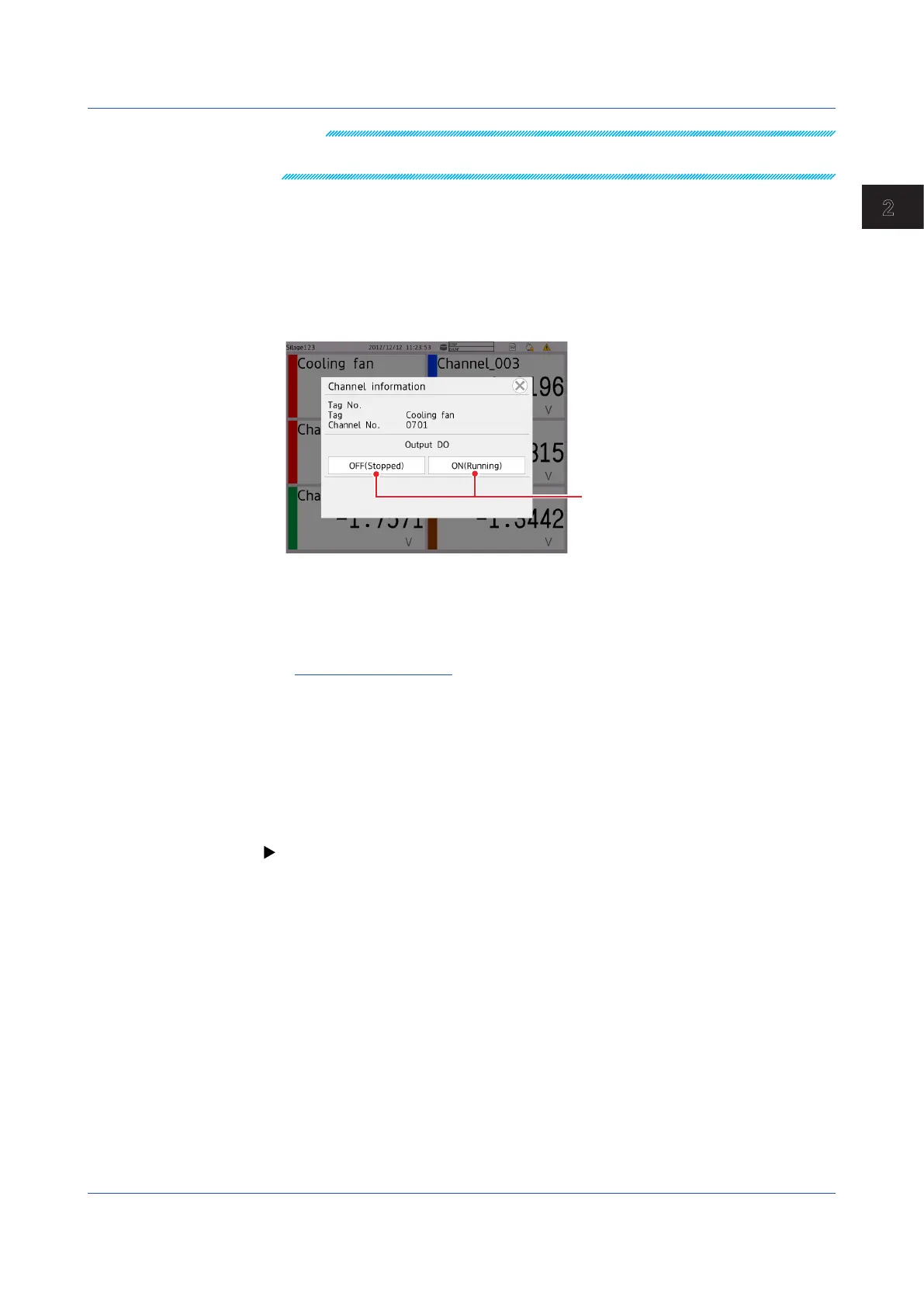

1 Tap a DO channel.
The channel information appears.
“ON” or “OFF”
The specified character string is shown
in parentheses.
2 Tap ON or OFF.
The tapped value (ON or OFF) takes effect.
3 Tap the Close icon to close the channel information screen.
Operation complete
Individual AO Channel Operation from the Monitor
From the monitor, you can individually operate the AO channel assigned to retransmission
output or manual output.
Retransmission output: Turn on and off the retransmission output.
Manual output: Set the output value.
You can carry out this procedure on the trend, digital, bar graph, overview, and custom
displays.
In Display settings, under Screen display settings, Changing each value from
monitoring must be set to On.
See page 1-117 in section 1.10.5, “Setting Basic Screen Items”.
Users whose Output operation under User property in the security settings is set to LOCK
cannot operate AO channels.
If Output operation under User property in the security settings is set to LOCK, AO channel
operation is not possible while the operation is locked.
