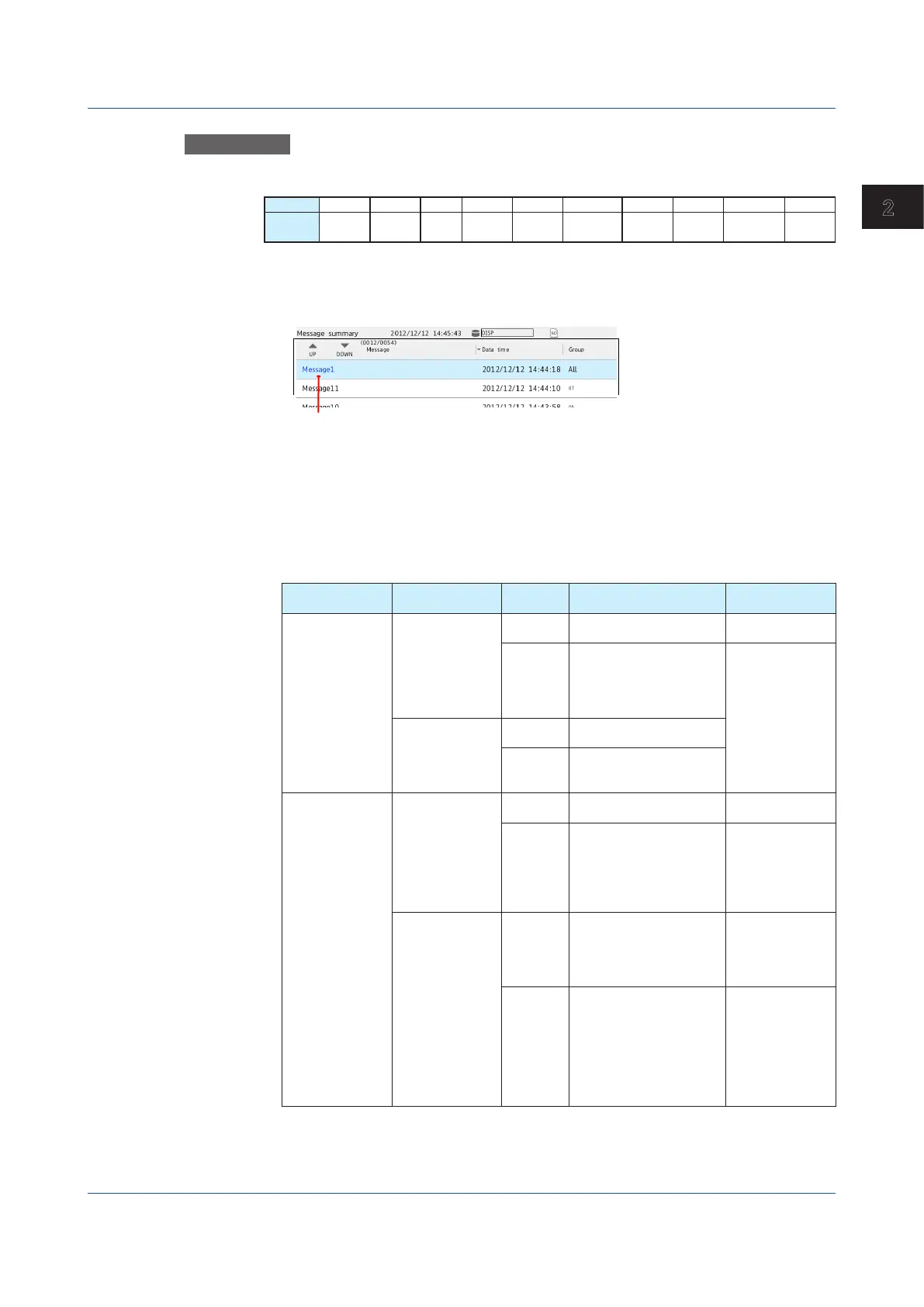

2-27
IM 04L51B01-01EN
Operating the GX/GP
2
Explanation
Display Color of Messages
The message colors on the trend display are shown below. You cannot change them.
No. 1 2 3 4 5 6 7 8 9 10
Color Red Green Blue Violet Brown Orange Yellow
green
Light
blue
magenta Gray
The colors for messages 11 to 100 are repetitions of the colors above.
Added Messages
• The timestamps of added messages are data times.
Added message
(displayed in blue)
Message summary display example
• Up to 50 messages can be written.
• Messages cannot be added to data that has been loaded from the external storage
medium.
Message Writing When the Measurement Mode Is Set to Dual Interval
The following table shows what messages are written depending on the currently displayed
screen.
Display screen Messagewriting
method
Scale
position
Write result Scan group
writtento
Trend Common Latest Written to the latest position
of all display groups
All
Past Written to the specified
data position of all display
groups whose displayed
trends and scan groups
match.
Either one
Separate Latest Written to the latest position
of current display groups
Past Written to the specified
data position of current
display groups
Custom display
(when trend
components or
group components
are present)
Common Latest Written to the latest position
of all display groups
All
Past Written to the specified
data position of all
display groups whose
trend components being
controlled and scan groups
match.
Either one
Separate Latest Written to the latest position
of current display groups
* All group components
displayed on the screen
area applicable.
Depends on the
displayed content.
Past Written to the specified
data position of the
trend component being
controlled.
* All components whose
trend components being
controlled and scan groups
match are applicable.
Either one
Continued on next page
2.2 Configuration of Measured Data Display
