Displaying the Measured Data from a Specified Date and Time
You can search for measured data at the specified date and time and display the results.
You can search the display data or event data in the GX/GP internal memory.
1 Press MENU.
The menu screen appears.
2 Tap the Context tab and then Data search.
A calendar appears.
When the measurement mode is set to Dual interval, the data (event 1 and event 2) of
each scan group is displayed.
3 Tap a date.

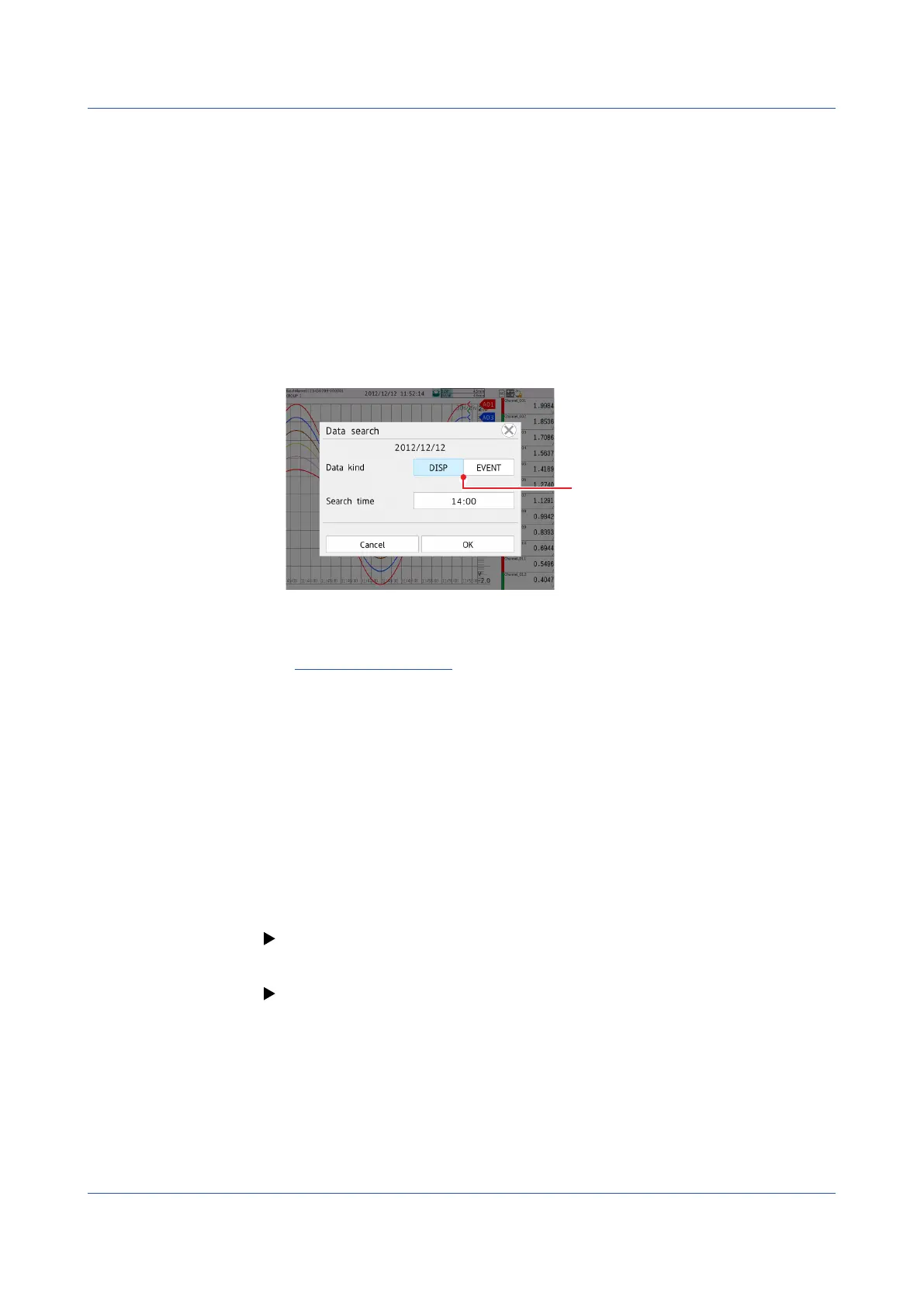

The data search screen appears.
When the measurement mode is
set to Dual interval
Data kind: Event 1, Event 2
4 Set the data kind and search time, and tap OK.
Data will appear.
Operation complete
Display Conditions
• The scale’s left edge position is the specified search time.
• All other display conditions are the same as those of the current display.
• If there is no data at the date and time that you specify, data from a later time in the same
day is displayed. If such data does not exist, an error message will appear.
• If the detected data does not contain the same display group as the groups that are
displayed currently, the first group among the displayed groups is displayed.
Searchable Range
You can search for data between the year 2001 and the year 2035.
“DISP”and“EVENT”Indications
“DISP” appears when there is display data on the specified day.
“EVENT” appears when there is event data on the specified day.
You can configure the calendar so that weeks start with Sunday or Monday.
For details on the settings, see page 1-117 in section 1.10.5, “Setting Basic Screen Items”.
SigningIn(Whenusingtheadvancedsecurityfunction(/ASoption))
See section 2.4, “Signing Display and Event Data,” in the Advanced Security Function (/
AS) User’s Manual (IM 04L51B01-05EN).
