Display Item Description
Display group
name
If the information does not fit, the portion that does not fit is displayed with
an ellipsis (...).
Channel name A channel name is displayed in the appropriate cell if the channel has
an active alarm or has an unacknowledged alarm when the alarm is
set to Hold. If the information does not fit, the portion that does not fit is
displayed with an ellipsis (...).
Alarm status The alarm status at the channel level is displayed with a background color.
For details on the background color, see “Alarm status” in “All Channel.”
Due to space limitations, channel information may not be displayed. If you place the pointer
in a group name area and leave it there for about 1 second, the group name will appear in
a pop-up window. If you place the pointer in a channel area and leave it there for about 1
second, the channel name will appear in a pop-up window.

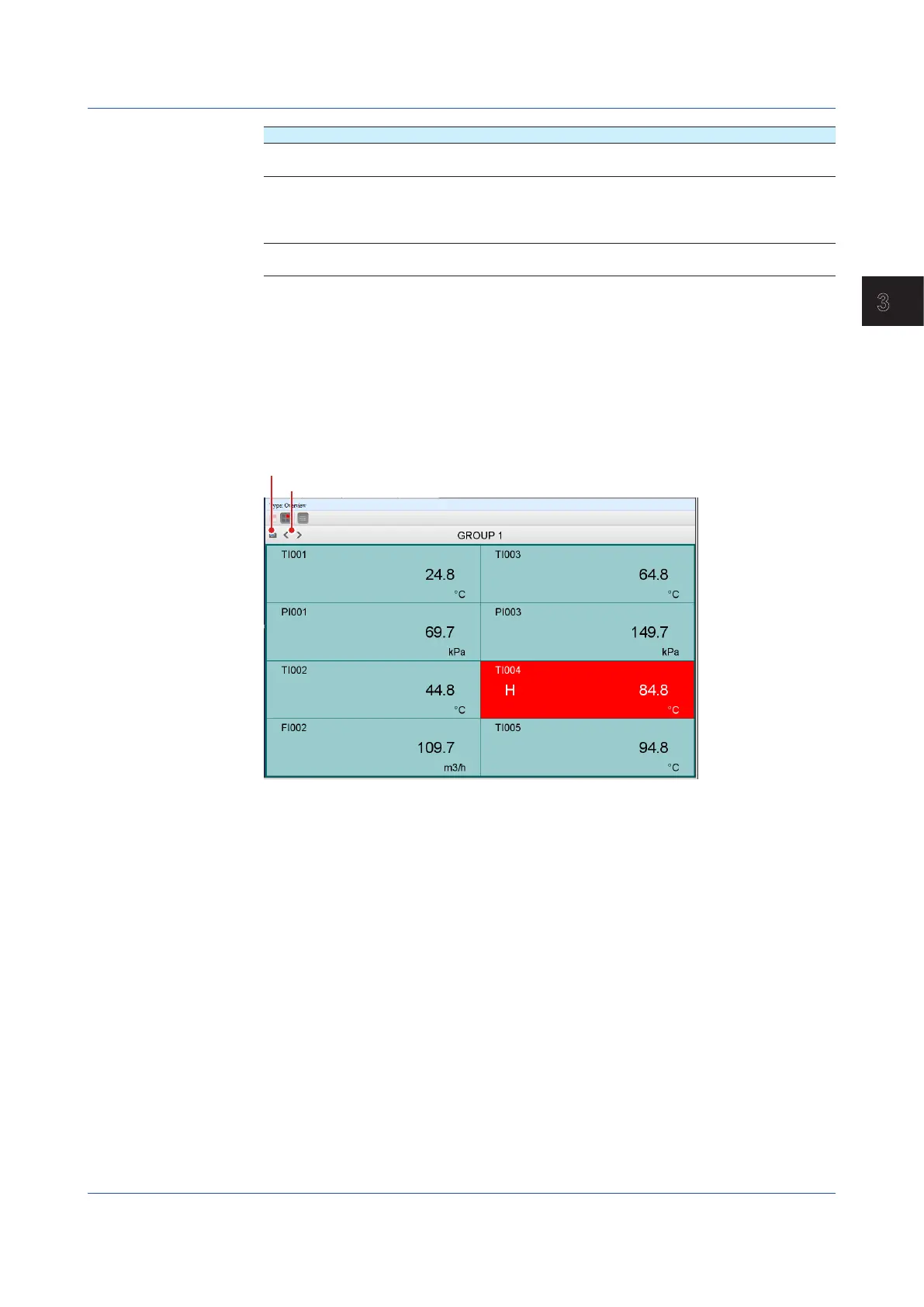

Channel in Display Group
When the display group overview is shown, you can click one of the display group areas
to display an overview of that group. The displayed information is the same as with “All
channel.”
Return to the display group overview.
Switch the display group.
• ExecutingIndividualAlarmAcknowledges,ChangingAlarmValues,andChanging
DOOutput(DOsettoManual)
See “Digital” on 3-27.
3.1 Using the Web Application to Change the GX/GP Settings, Monitor Data, and Control the GX/GP (Web server function)
