17
All Rights Reserved. Copyright © 2014, Yokogawa Electric Corporation
GS 04L53B01-01EN May. 19, 2017-00

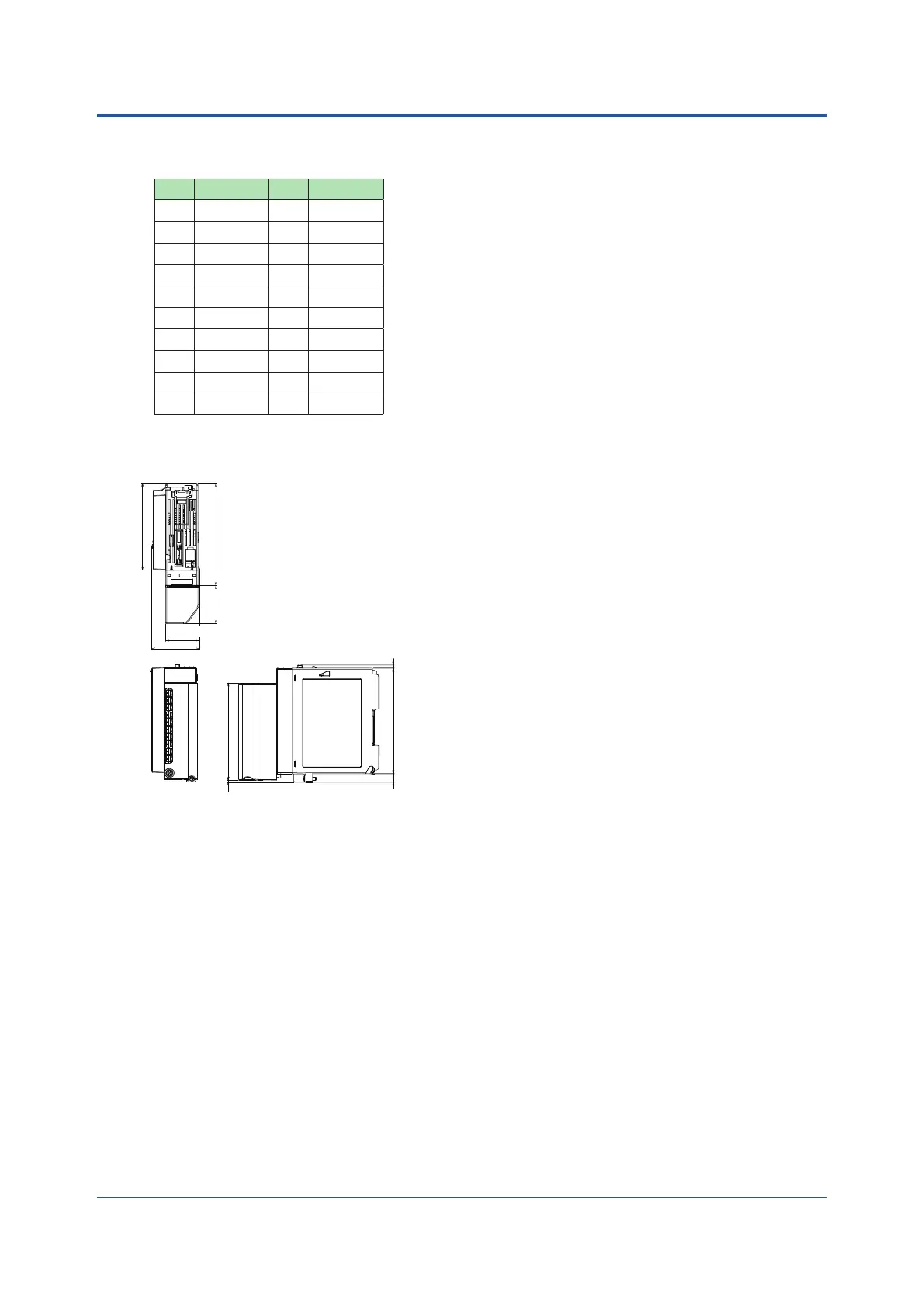

Terminal arrangements
M3 screw terminal
No. Symbol No. Symbol
21 DO4 N.C. 11 DO1 N.C.
22 DO4 COM 12 DO1 COM
23 DO4 N.O. 13 DO1 N.O.
24 DO5 N.C. 14 DO2 N.C.
25 DO5 COM 15 DO2 COM
26 DO5 N.O. 16 DO2 N.O.
27 DO6 N.C. 17 DO3 N.C.
28 DO6 COM 18 DO3 COM
29 DO6 N.O. 19 DO3 N.O.
30 Not Used 20 Not Used
External Dimensions
M3 screw terminal
97.1(3.82)
82.1(3.23)
36
(1.42)
92(3.62)
100(3.94)
3(0.12)
8(0.31)
(0.07) 1.9
45.2(1.78)
31.9(1.26)
Unit: mm
(approx. inch)
Normal Operating Conditions
Fornormaloperatingconditionsofthismodule,
pleaserefertotheGeneralSpecicationsofthe
device(GX/GP,I/OBaseUnit,orGM)thatthis
moduleismounted.However,excludingtheshock
at energization.
GXSpecications:GS04L51B01-01EN
GPSpecications;GS04L52B01-01EN
I/OBaseUnit(ExpandableI/O):ThisGeneral
Specications
GMSpecications:GS04L55B01-01EN
Transport and Storage Conditions
SameastheGX90XA.
Installation limitations
Up to a total of 10 GX90WD digital input/output
modulesandGX90UTPIDcontrolmodulescan
be installed.
