121

SECTION 9 - DISPLAY BACKLIGHT INVERTER BOARD

FORM 160.54-M1

ISSUE DATE: 10/25/2019

JOHNSON CONTROLS JCI COMPANY CONFIDENTIAL

MICRO

BOARD

INVERTER

BOARD

1 2 3 4 5 6 7 8

NC NC

RETURN

500 - 1400 VAC

BACKLIGHT

LAMP 1

BACKLIGHT

LAMP 2

BRIGHTNESS CONTROL (NOTE 2)

BACKLIGHT ENABLE (NOTE 1)

GND

+ 12 VDC (NOTE 3)

DISPLAY BACKLIGHT INVERTER BOARD

PART NUMBER: 031-02889-000

FOR: SHARP LQ104V1DG6 (031-02886-000) DISPLAYS

RETURN

500 - 1400 VAC

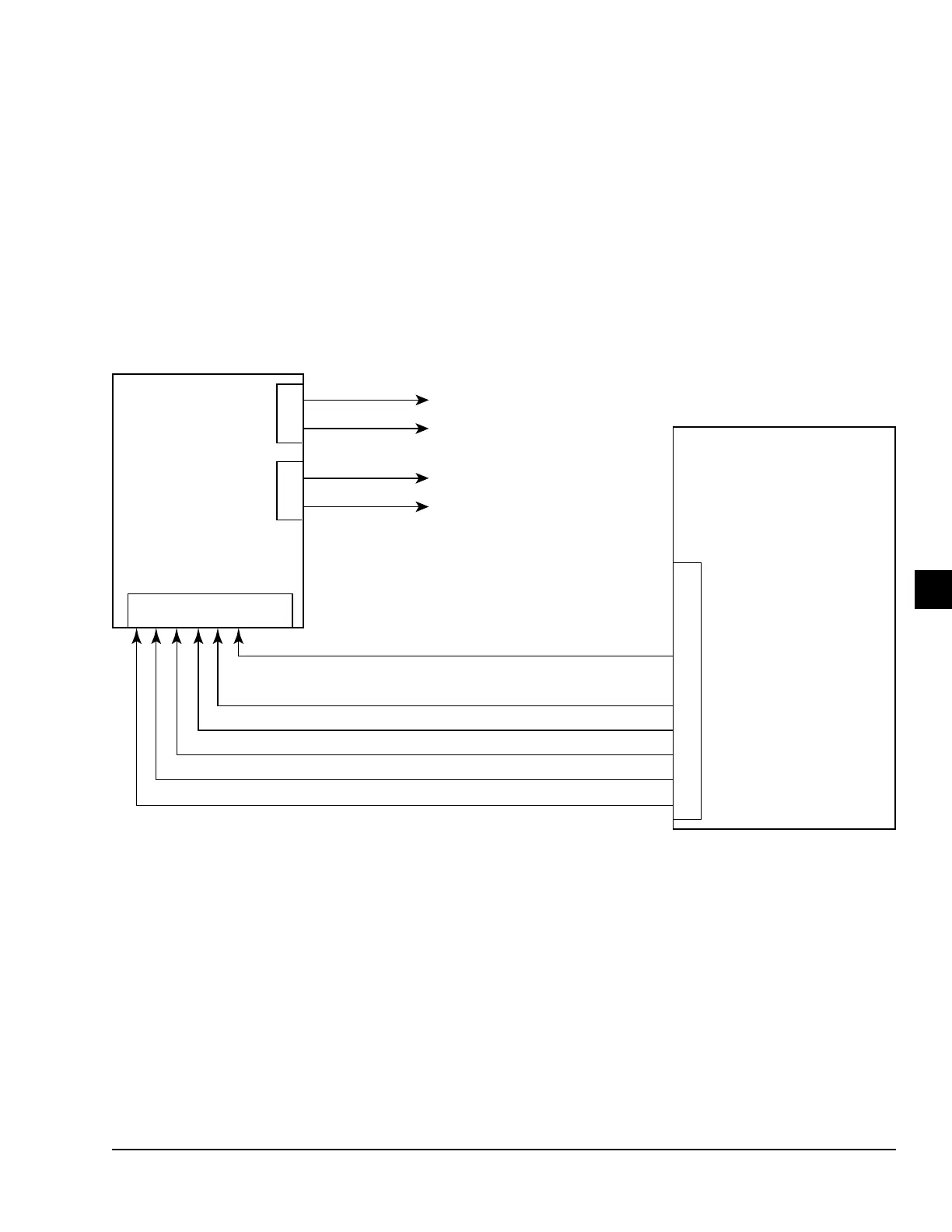

FIGURE 49 - DISPLAY BACKLIGHT INVERTER BOARD – SHARP LQ104V1DG61 DISPLAY 031-02886-000

LD09568b

NOTES:

1. OFF = 0 VDC; ON = + 5 VDC. Refer to Microboard Program Jumpers JP3 and JP4.

2. 0- + 3.0 VDC. 0 VDC = MAX (100%) brightness. +3 VDC = MIN (0%) brightness.

Refer to Microboard Program Jumpers JP7 and JP8.

3. Refer to Microboard Program Jumper JP5.

4. N.C. = No Connection.
