162
FORM 160.54-M1
ISSUE DA
TE: 10/25/2019
SECTION 15 - PROXIMITY PROBE
JCI COMP
ANY CONFIDENTIAL
JOHNSON CONTROLS

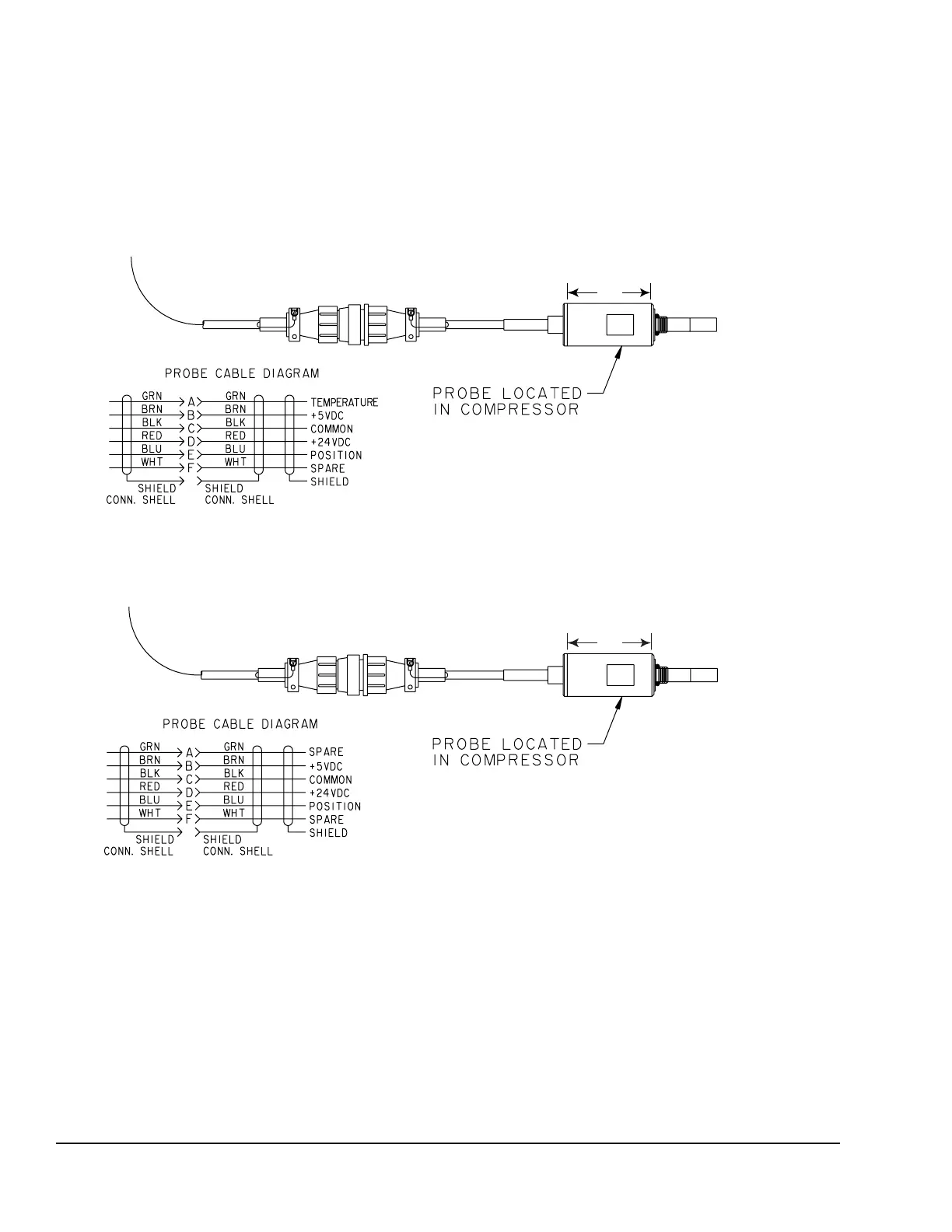

FIGURE 69 -
PROXIMITY PROBE
LD06510
LD05529a
+ 24VDC PROBE
2.0"
YORK P
AR
T
NUMBER
025-30961-000
+ 24VDC PROBE
2.0"
YORK P
AR
T
NUMBER
025-35900-000
025-35900-000 and 025-35900-001
025-30961-000
161
163
