SECTION 5 - MICROBOARD 031-03630-001

FORM 160.54-M1

ISSUE DATE: 10/25/2019

JOHNSON CONTROLS JCI COMPANY CONFIDENTIAL

FIGURE 26 - PROGRAM CARD 031-03601-001

031-03601-001

Y.OPT.01.01.308

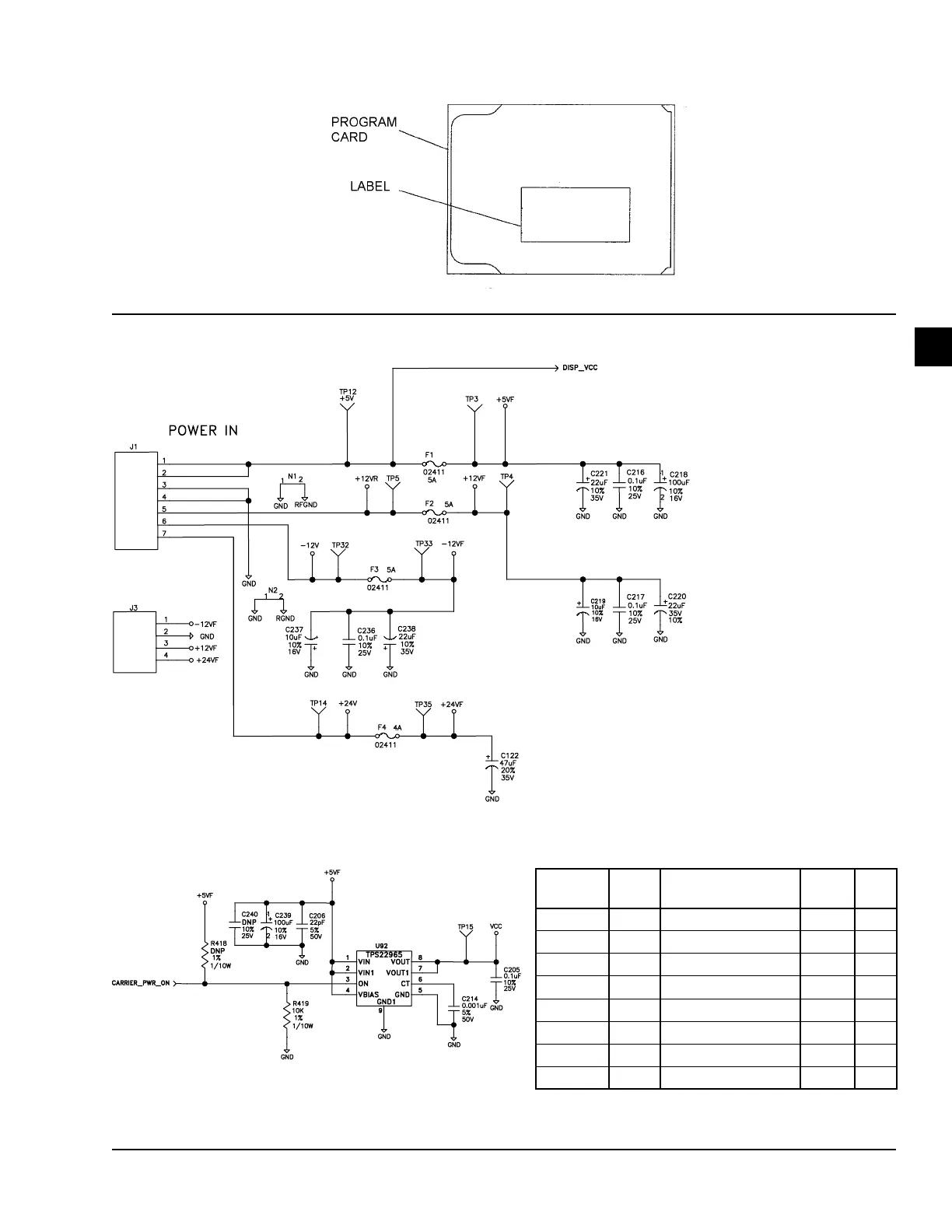

FIGURE 27 - MICROBOARD (031-03630-001) DC POWER SUPPLY TEST POINTS

Measure the power supply voltages with a Digital Volt

Meter in reference to Ground at TP1 or TP11.

VOLTAGE

TEST

POINT

VOLTAGE RANGE FUSE LED

+5 VDC TP3 +4.92 to +5.28 VDC F1 (5A) CR56

+12 VDC TP4 +11.58 to +12.5 VDC F2 (5A) CR57

-12 VDC TP33 -11.5 to -12.5 VDC F3 (5A) CR58

+24 VDC TP35 +22.4 to +26.7 VDC F4 (4A) CR59

+3.3 VDC TP2 +3.25 to +3.43 VDC n/a CR62

VCC TP15 +4.92 to +5.28 VDC n/a n/a

+5VA TP10 +4.95 to +5.05 n/a CR61

Battery n/a +2.95 to +3.45 n/a n/a

LD19558

+5.0V Load to Switch Baseboard

TABLE 1 - Control Panel Applications4
