306
FORM 160.54-M1
ISSUE DATE: 10/25/2019
SECTION 34 - DIAGNOSTICS AND TROUBLESHOOTING
JCI COMPANY CONFIDENTIAL JOHNSON CONTROLS
DIAGNOSTICS SCREEN

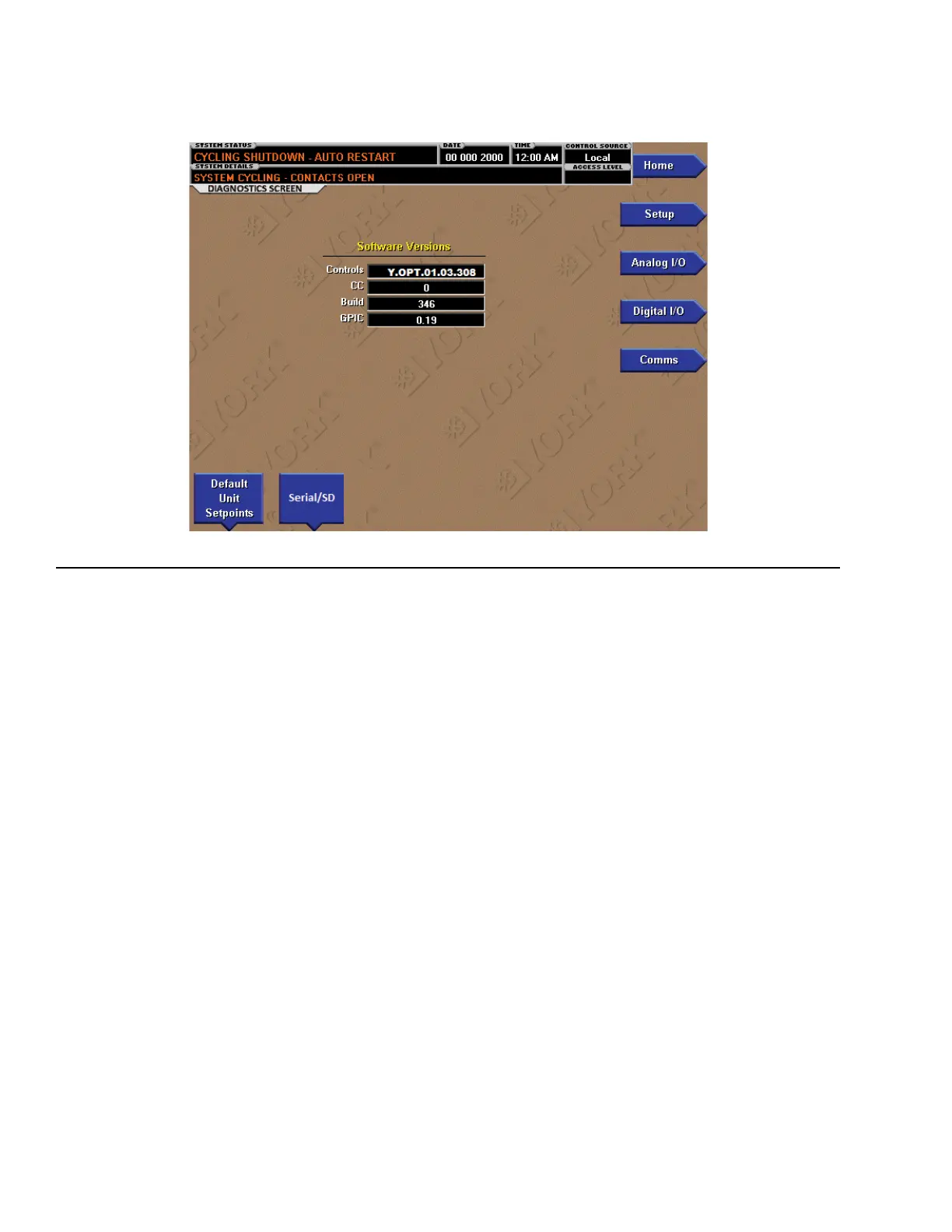

FIGURE 106 - DIAGNOSTICS SCREEN
This screen shows the software that is loaded onto the
microboard and the motor starter connected to the mi-
croboard via serial communications.
Controls – Software that controls the chiller.
CC – Version of Control Routines.
BIOS – BIOS EPROM on Microboard.
Build – Iteration of the software development.
GPIC – Version of points list exposed to SC-EQ.
Ext I/O – Software in I/O Board 031-02895-000.
SSS, VSD, MVSSS or MVVSD – software that is in
the respective device.
Modbus UI - Motor Monitoring – Software in Motor
Monitoring Board.
BUTTONS
Default Unit Setpoints
Many of the control parameters are automatically con-
figured by pressing this button after the Sales Order
screen is entered. Failure to press this button can result
in unstable control. Note that some versions of soft-
ware also have a Default Setpoints button on the Ca-
pacity Control screen. That button does not need to be
pressed because the Default Unit Setpoints button on
the Diagnostic screen will set all of the parameters.
NAVIGATION
Serial/SD – Navigates to the Serial/SD screen where
data logging and Save and Restore Parameters is ac-
complished.
Erase All NOVRAM (Displayed at Admin Level) –
Pressing this button erases all of the sales order set-
points, configurations and history in the microboard.
Home – Returns to the Home screen
Setup – Navigates to the Setup screen
Analog I/O – Navigates to the Analog I/O screen
Digital I/O – Navigates to the Digital I/O screen
Comms – Navigates to Comms screen
