SECTION 13 - SOLID STATE STARTERS

FORM 160.54-M1

ISSUE DATE: 10/25/2019

JOHNSON CONTROLS JCI COMPANY CONFIDENTIAL

NOTES:

9 on “CONDOR” Power Supply

13 on “POWER ONE” Power Supply

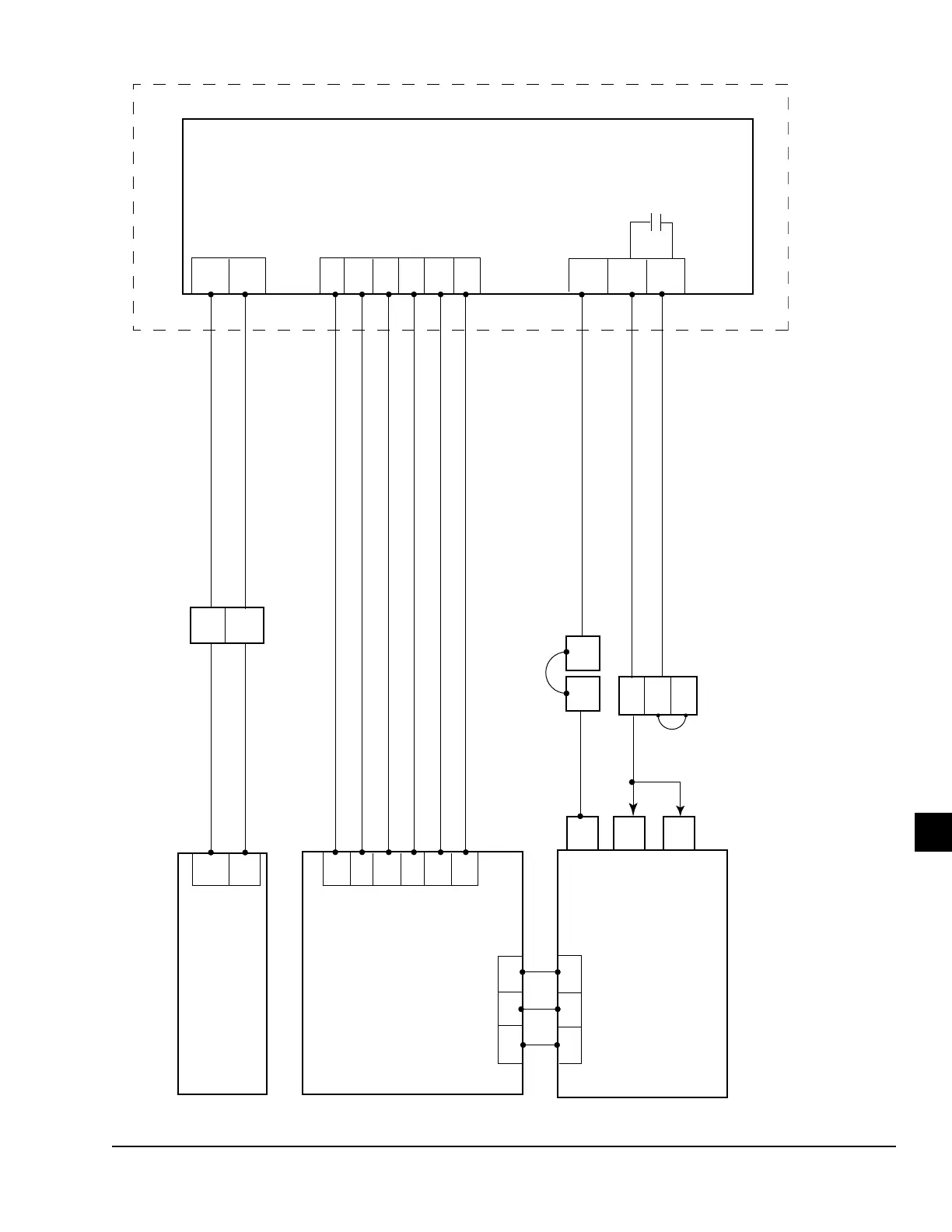

FIGURE 61 - MOD A LIQUID COOLED SOLID STATE STARTER (LCSSS) – INTERFACE

LD04649

CONTROL CENTER

SOLID STATE STARTER

POWER

SUPPLY

MICRO

BOARD

I/O BOARD

L.C.S.S.S

LOGIC PCB

(031-00936)

36 37

J19

J1-2 = MOTOR CONTROLLER SHUTDOWN

J1-36 = STOP

J1-37 = START

TB5

TB1

TB6

STOP

CONTACTS

ADDRESS (2 )

+5VDC

GND.

MULTIPLEXED DATA

GND

+24VDC

J/P-30

115VAC

STARTER (MOTOR CONTROLLER) INITIATED SHUTDOWN
